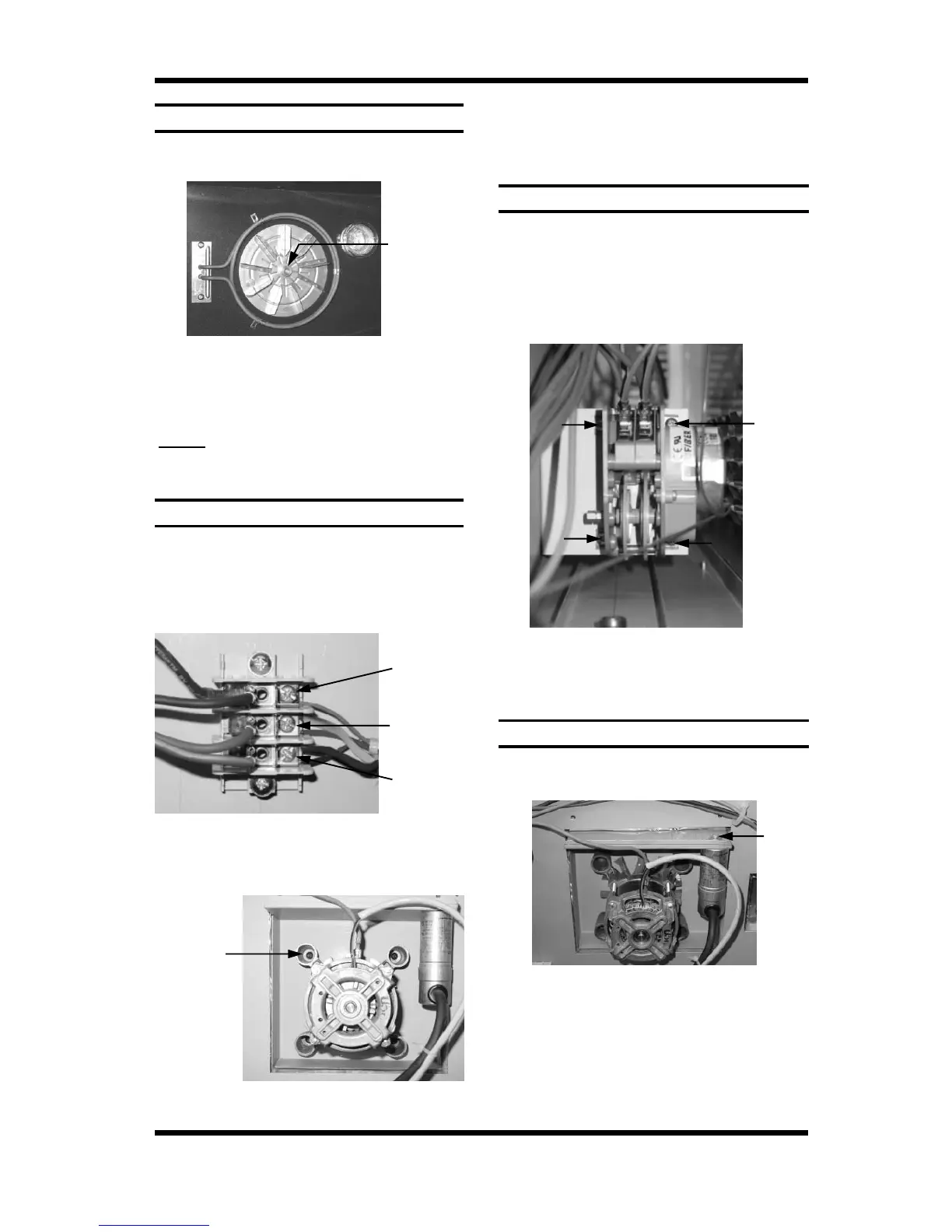

Moffat Turbofan E27 - Fan; Motor; Fan Motor Timer; Fan Motor Capacitor

Revision 3/F3563
© Moffat Ltd, August 2006 E27 Convection Oven
-22-
6.3.11 MOTOR
6.3.10 FAN
1) With baffle removed (refer 6.2.3) loosen
the grub screw on the hub of the fan.
1) Remove fan (refer 6.3.10), and remove
service panel (refer 6.2.2).
2) Remove the brown, blue and black wires
that go to the motor from the motor
terminal block.
2) Withdraw the fan from the shaft.
3) Replace and re-assemble in reverse
order.
NOTE:
Ensure Teflon sealing washer is in
position on fan shaft between fan and
oven rear.
Figure 6.3.12
Figure 6.3.13
3) Undo the four screws holding the motor
and bracket in place and remove the
motor.
4) Replace and re-assemble in reverse order.
5) Ensure wire connections are correct (fig
6.3.13)
6.3.12 MOTOR DIRECTION TIMER
6.3.13 MOTOR CAPACITOR
Grub Screw
1) Open control panel (refer 6.2.1).
2) Remove wires from the timer, noting their
positions, and the wire to the timer motor
from the control panel.
3) Remove the four screws securing the
timer to the timer mounting bracket.
Figure 6.3.15
4) Replace the timer and reassemble in
reverse order.
1) Remove service panel (refer 6.2.2).
2) Undo the nut securing capacitor to oven.
3) Remove the capacitor wires from the
motor terminal block.
4) Replace with new capacitor, and re-
assemble in reverse order.
Nut
Figure 6.3.16
Brown
Blue
White
Black
Black
Figure 6.3.14
Screws (x4)
Four
Screws
