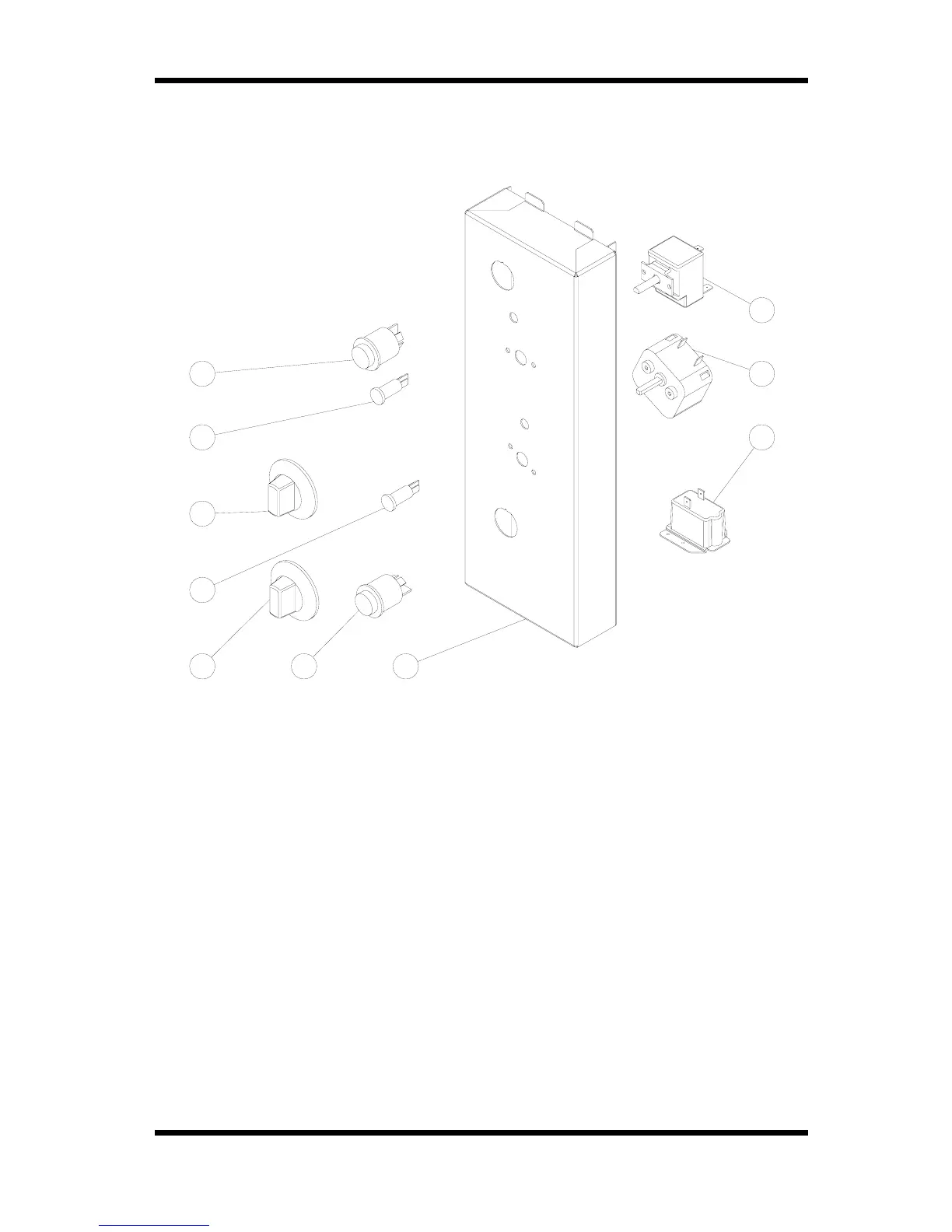

11.2.1 CONTROL PANEL ASSEMBLY - E27
Pos Part No. Description
1 004916 CONTROL PANEL °C – BAKBAR
004915 CONTROL PANEL °C – BLUE SEAL
004917 CONTROL PANEL °F – MOFFAT
2 021474 LIGHT SWITCH
3 020823 TIMER KNOB
4 020849 INDICATOR NEON
5 021472 THERMOSTAT KNOB
6 021473 POWER SWITCH
7 023211 THERMOSTAT 50-250°C (120-480°F)
8 011760 TIMER – 60 MIN
9 011794 BUZZER
2 1
7
8
5
9
6
4
4
3
