6.4.3 60 MINUTE TIMER ZERO POSITION
ADJUSTMENT
1) Remove 60 minute timer knob by pulling it
firmly away from control panel.
2) Open control panel (refer 6.2.1). Loosen
two screws on control panel holding 60
minute timer.

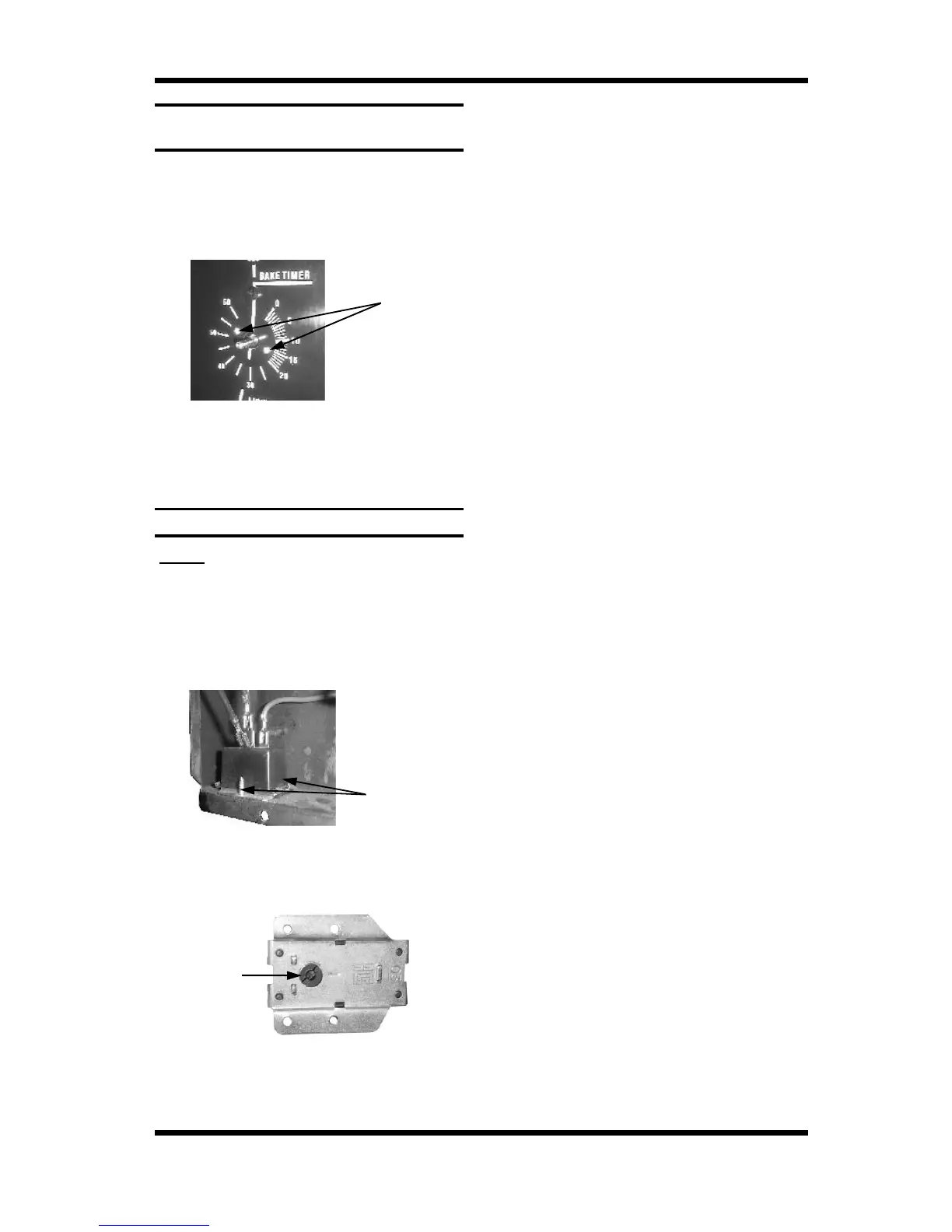

Figure 6.4.3
3) The timer can now be rotated a small
amount as required to ensure that the
buzzer sounds at the zero position.
Two Screws
6.4.4 BUZZER VOLUME ADJUSTMENT
Two Screws
NOTE: The buzzer volume is set to full at the
factory. Should the volume need to be
reduced then the following steps should
be followed.
1) Remove control panel (refer 6.2.1).
2) Remove two screws holding buzzer to
control panel.
3) Adjust volume screw on buzzer, clockwise
to increase volume, and anti-clockwise to
decrease volume.
Figure 6.4.4
Figure 6.4.5
4) Reassemble in reverse order.
Volume
Adjustment
