Molbio Trueprep AUTO v2 - Back Panel View; The Cartridge

®
 The Power/In Use LED Indicator will glow when theTrueprep AUTO v2 is switched on and
when it is in use.
®
i) It will glow red and blink continuously when the Trueprep AUTO v2 is switched on and
waiting for user input
ii) It will glow red continuously when it is in use
®
 The Charging/Low Battery LED Indicator will glow when the Trueprep AUTO v2 battery is
low and when it is being charged using the power cable.
i) It will glow red when the battery is low and needs to be charged
®
ii) It will glow blue when the Trueprep AUTO v2 is being charged
6.1B Back Panel View
®

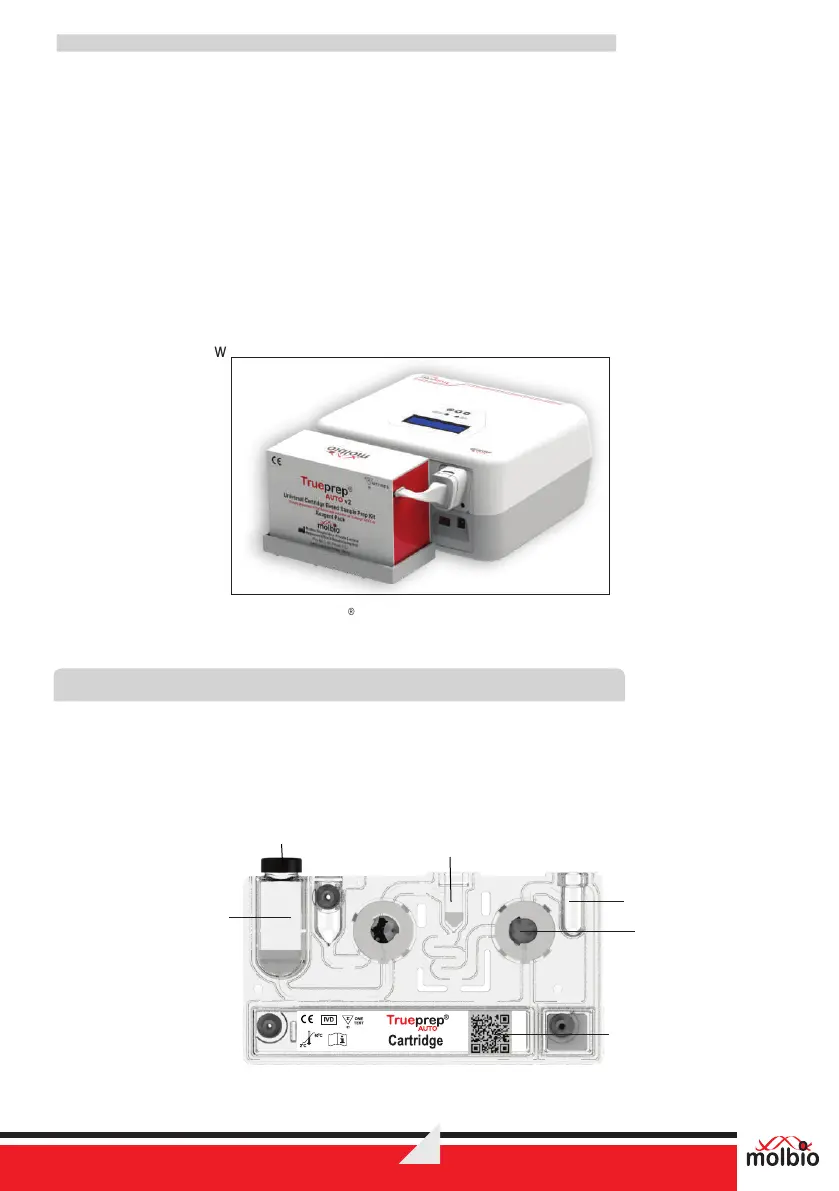

Figure 2: The Trueprep AUTO v2 device Back Panel with Reagent Pack of
®
the Trueprep AUTO v2 Universal Cartridge Based Sample Prep Kit
6.2 The Cartridge
Samples are processed on disposable, single-use cartridges that are inserted into the cartridge
holder. These cartridges come pre-loaded with Internal Positive Control and only require the
®
addition of pre-treated sample to the sample chamber for processing on the Trueprep AUTO
v2.
®
Figure 3: Disposable Trueprep AUTO v2 cartridge for sample processing
6
®
®
Trueprep AUTO v2
Matrix Chamber
Sample chamber
Rotary Valve
QR Code
Elute chamber
Cap
