MX123 Connection System User Manual - AS-34566-001 20
Section 3: Harness Assembly Instructions
F. Grommet Seal Plug Installation
Step 1: Orient seal plug to the
opening in the grommet cap. Plug
should not be installed when
rotated 90 degrees from proper
orientation.
Step 2: Hold head of seal plug
securely to prevent rotation
during assembly.
Step 3: Push seal plug until it
locks into position into the
grommet cap.

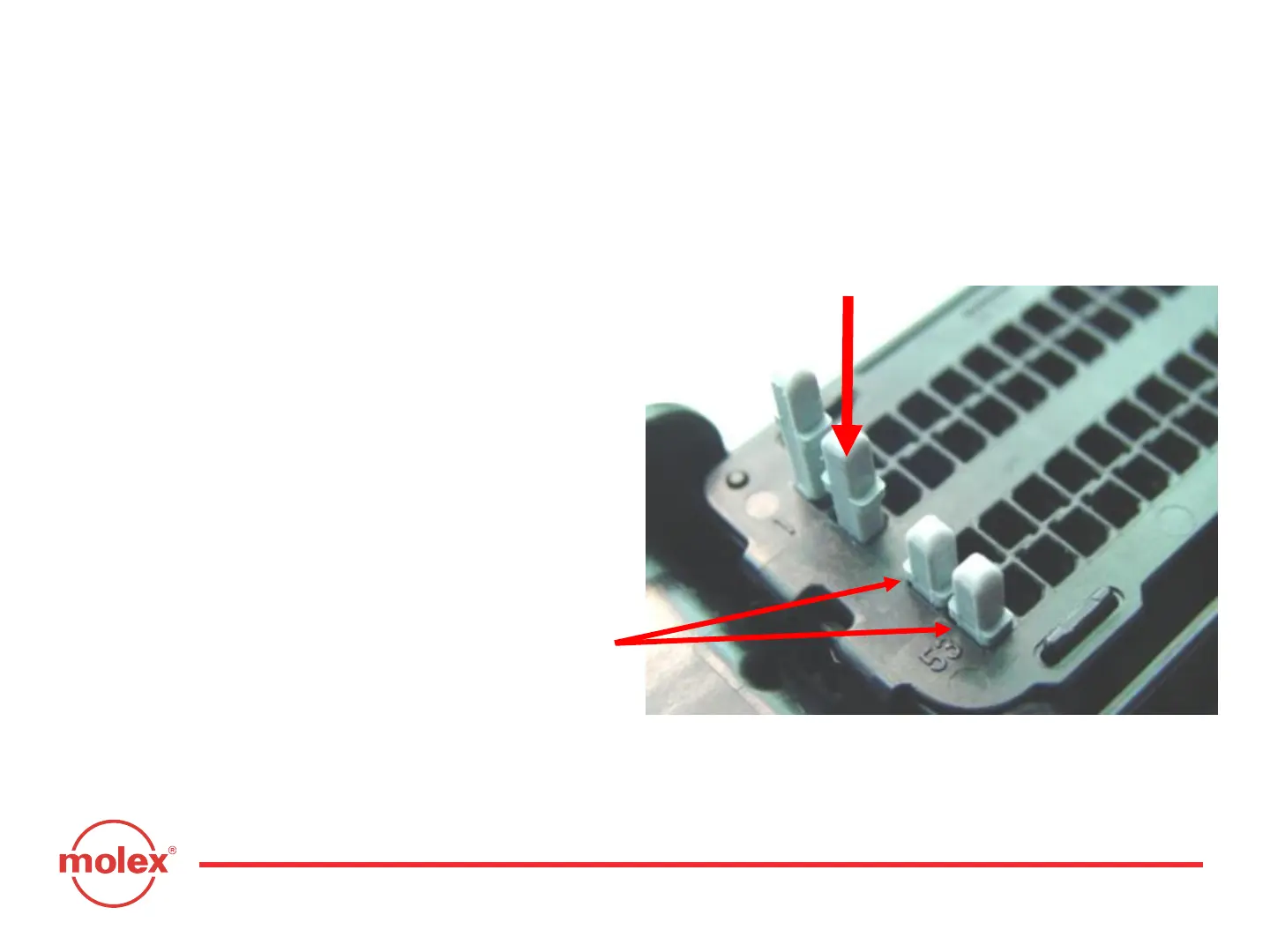

Step 4: Verify that seal plug
shoulder is flush with grommet
cap as shown in cavities 33 and
53.
