MX123 Connection System User Manual - AS-34566-001 22
H. Wire Bundle Dressing
After seating the TPA, insert a tie-wrap around the connector (Fig. 3-9) and
around the wire bundle as shown (Fig. 3-10).
While clasping the wire bundle and connector firmly, tighten the tie-wrap
securely around the bundle using an appropriate tie-wrap gun to meet the
specifications listed in Table 1 (next page) and shown in Fig. 3-11 and Fig. 3-
12 (next page).

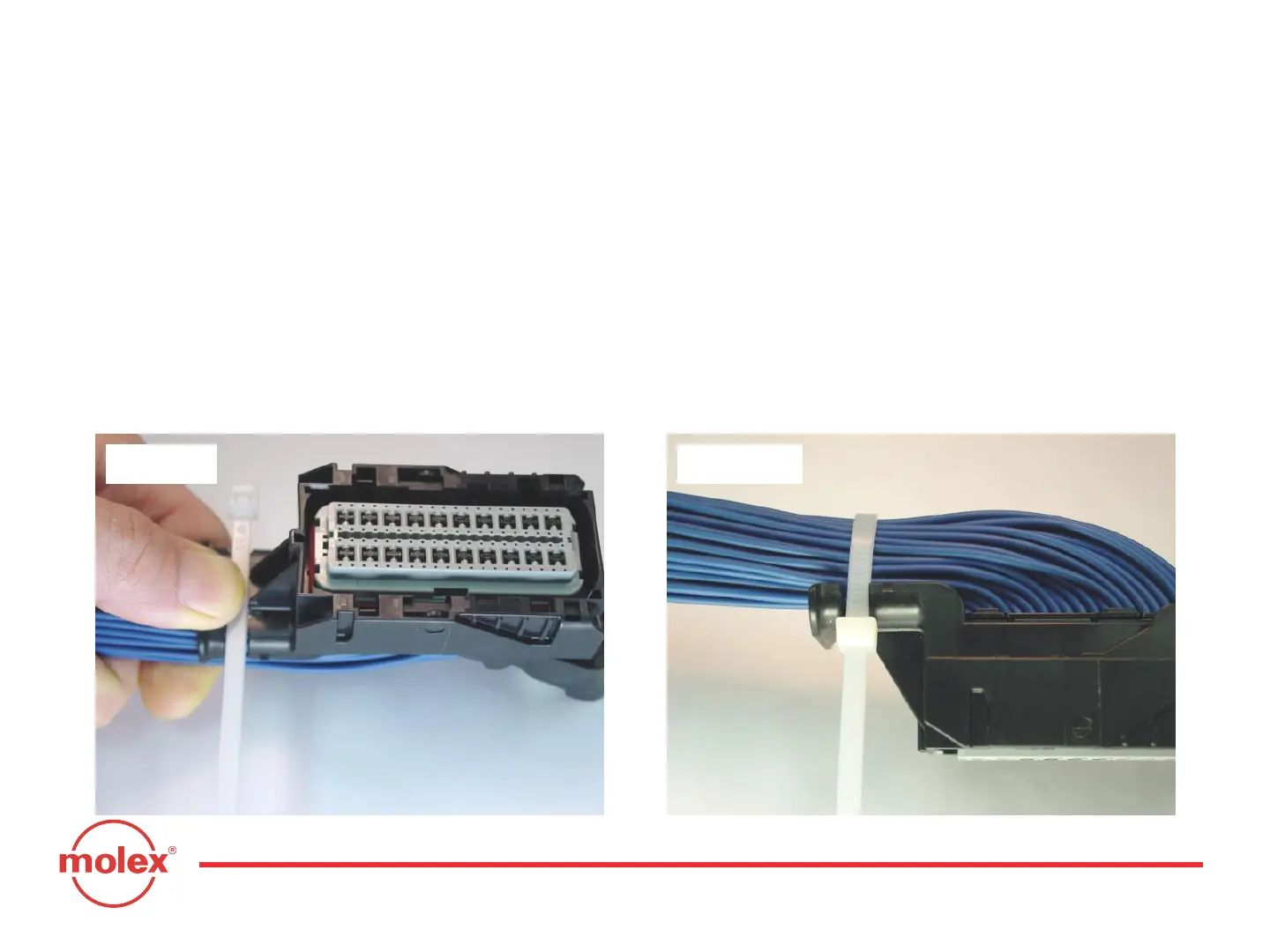

Fig. 3-9 Fig. 3-10
Section 3: Harness Assembly Instructions
