MX123 Connection System User Manual - AS-34566-001 23
H. Wire Bundle Dressing (continued)

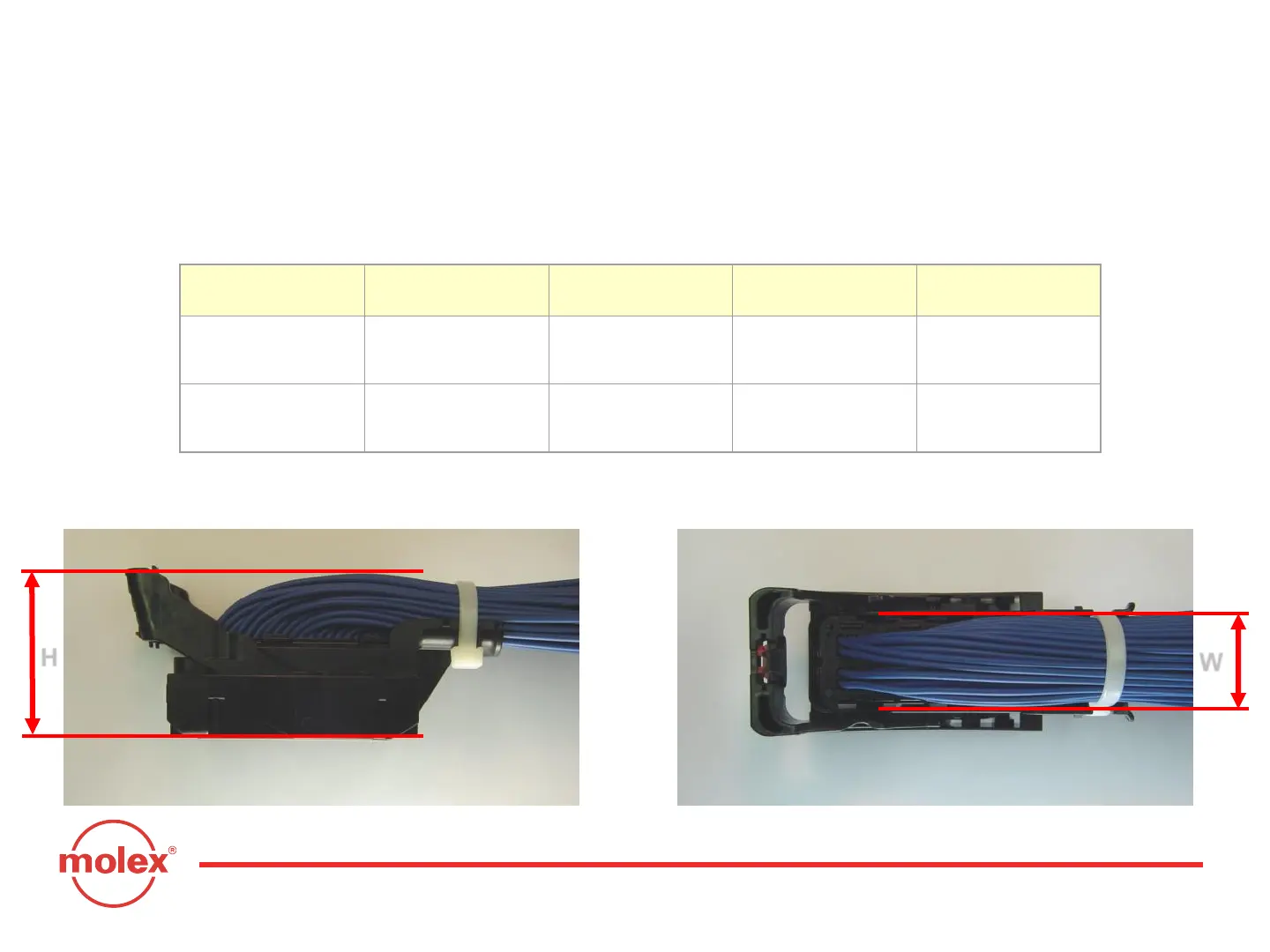

Wire Bundle Height and Width Specifications
GM Part No. Molex Part No. Description Height (H) Width (W)
73/80 Ckt ≤ 44 mm ≤ 24 mm
49/56 Ckt ≤ 43 mm ≤ 24 mm
12582676
12582679
34575-0003
34565-0003
Section 3: Harness Assembly Instructions
Fig. 3-11 Fig. 3-12
H
W
Table 1: Dress Cover part numbers
