Section 5: Service Instructions
D. TPA Servicing (10 circuit connectors)
TPA should never be removed from the connector.
Step 1: Insert a small (2.5mm minimum – 3.5mm maximum) flat blade
screwdriver into the TPA service hole on the side of the connector (Fig. 5-10)
and pry up. The TPA will stop when it reaches its pre-lock position for terminal
servicing.
Step 2: On the other end of the TPA, repeat Step 1 (Fig. 5-11) until the TPA
reaches its pre-lock position at both ends of the harness connector.
Approximate TPA travel will be 5.0mm (See Figs. 5-12 and 5-13).

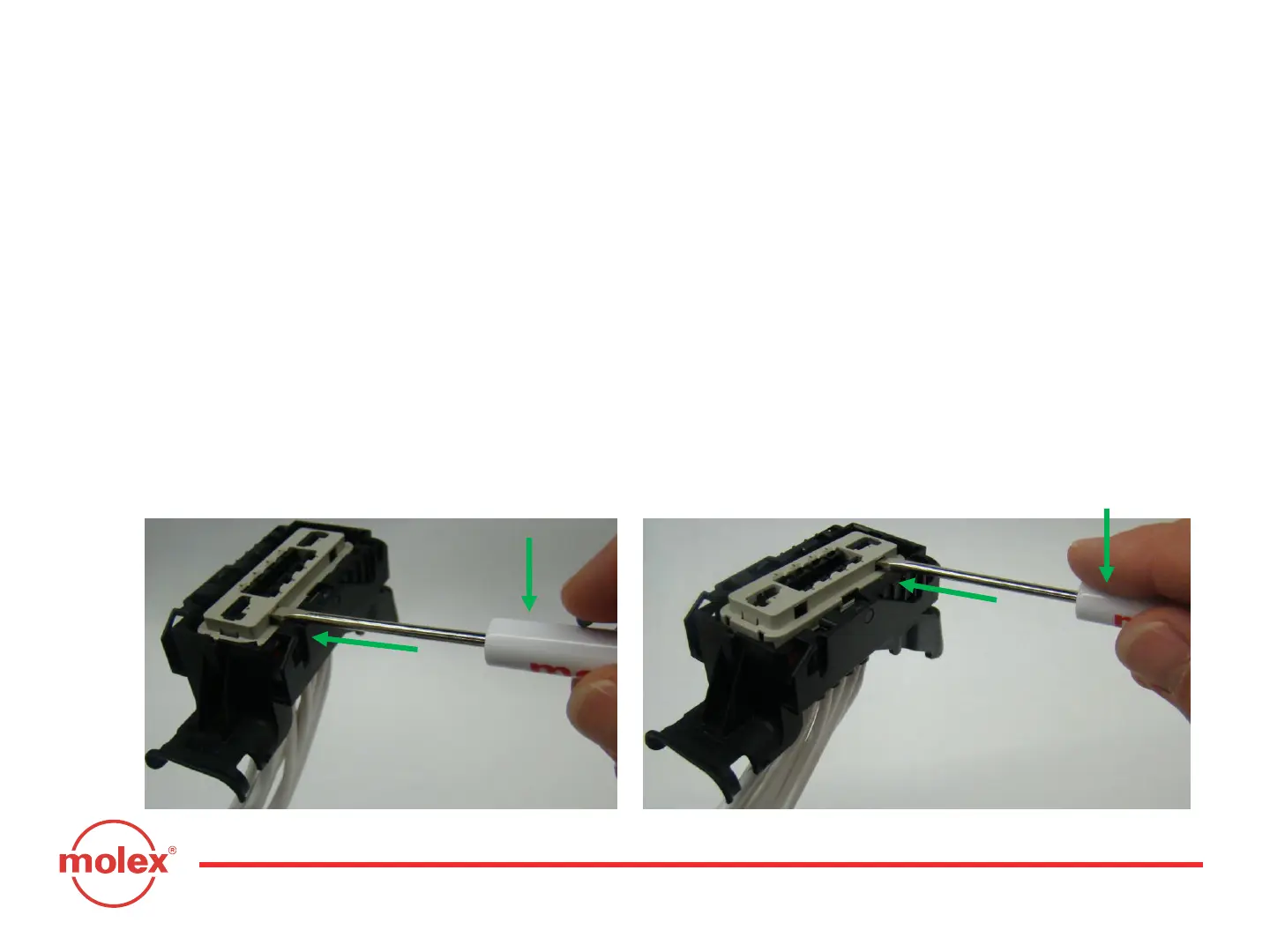

Step 1: Pry up TPA
Step 2: Pry up opposite end of TPA
