MX123 Connection System User Manual - AS-34566-001 39

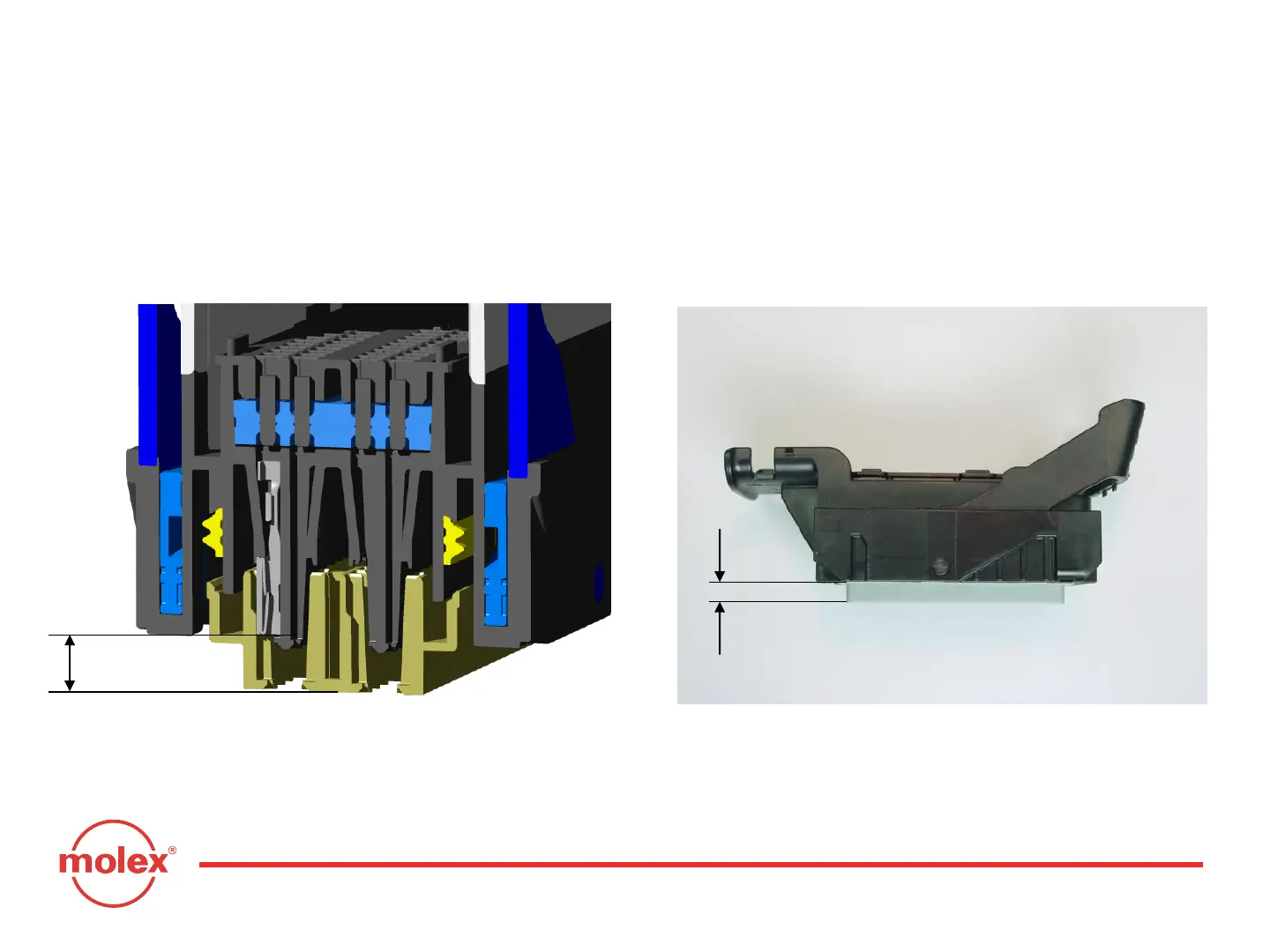

Views of TPA in “Pre-Lock” Position
Section 5: Service Instructions
D. TPA Servicing (continued)
5.0mm
Fig. 5-12
5.0mm
Fig. 5-13
