MX123 Connection System User Manual - AS-34566-001 44
Section 5: Service Instructions
G. Yazaki 2.80mm Receptacle Terminal Removal

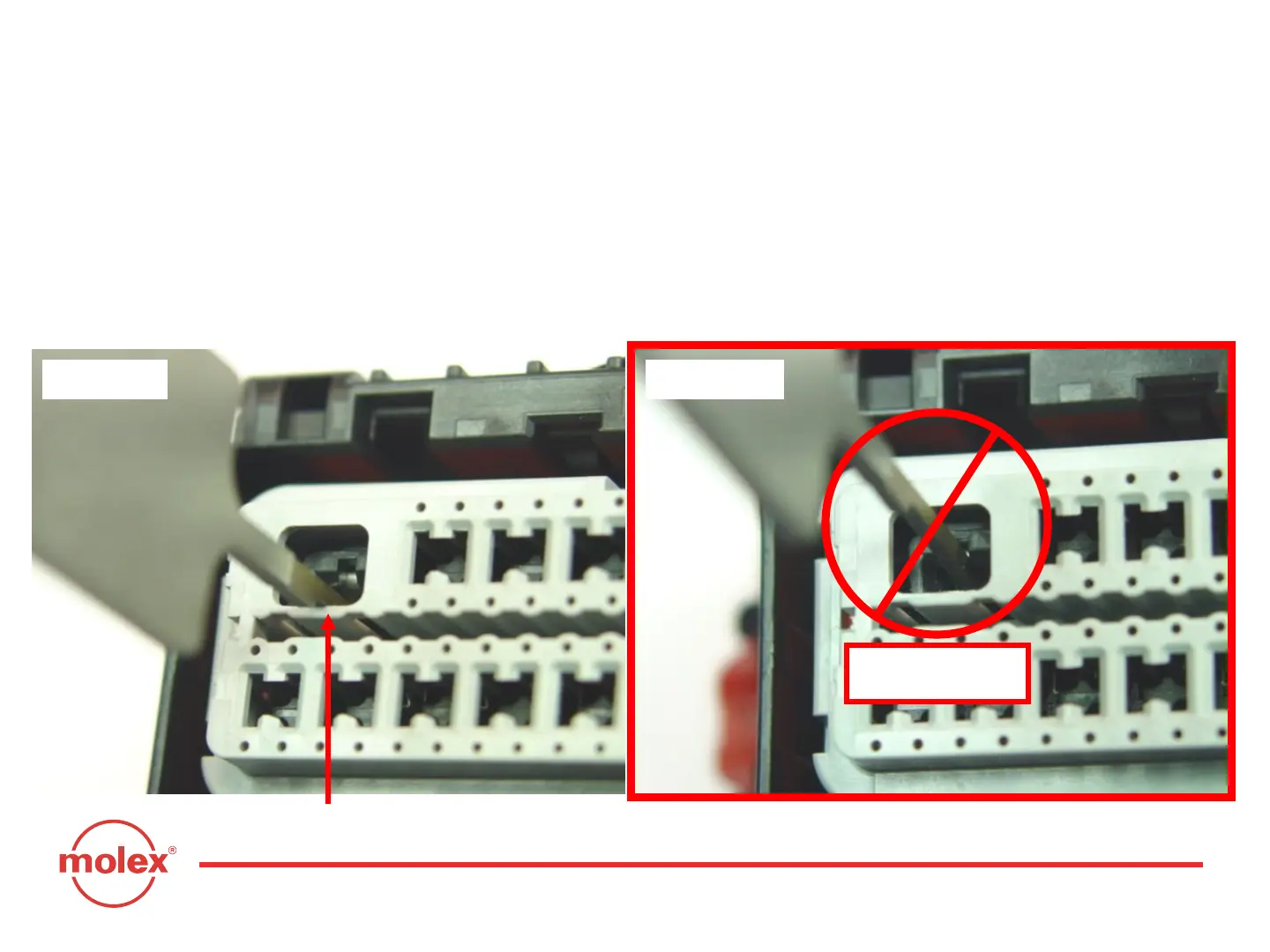

While pushing the terminal forward, insert the 2.80mm service tool (Yazaki
p/n X39899-J374). Insert the tip into the terminal service opening (Fig. 5-19).
Avoid inserting the service tool into the terminal opening (Fig. 5-19a). This
may cause damage to the 2.80mm terminal.
Proper Insertion
Fig. 5-19 Fig. 5-19a
Improper Insertion
WRONG!
