G. Yazaki 2.80mm Receptacle Terminal Removal (continued)

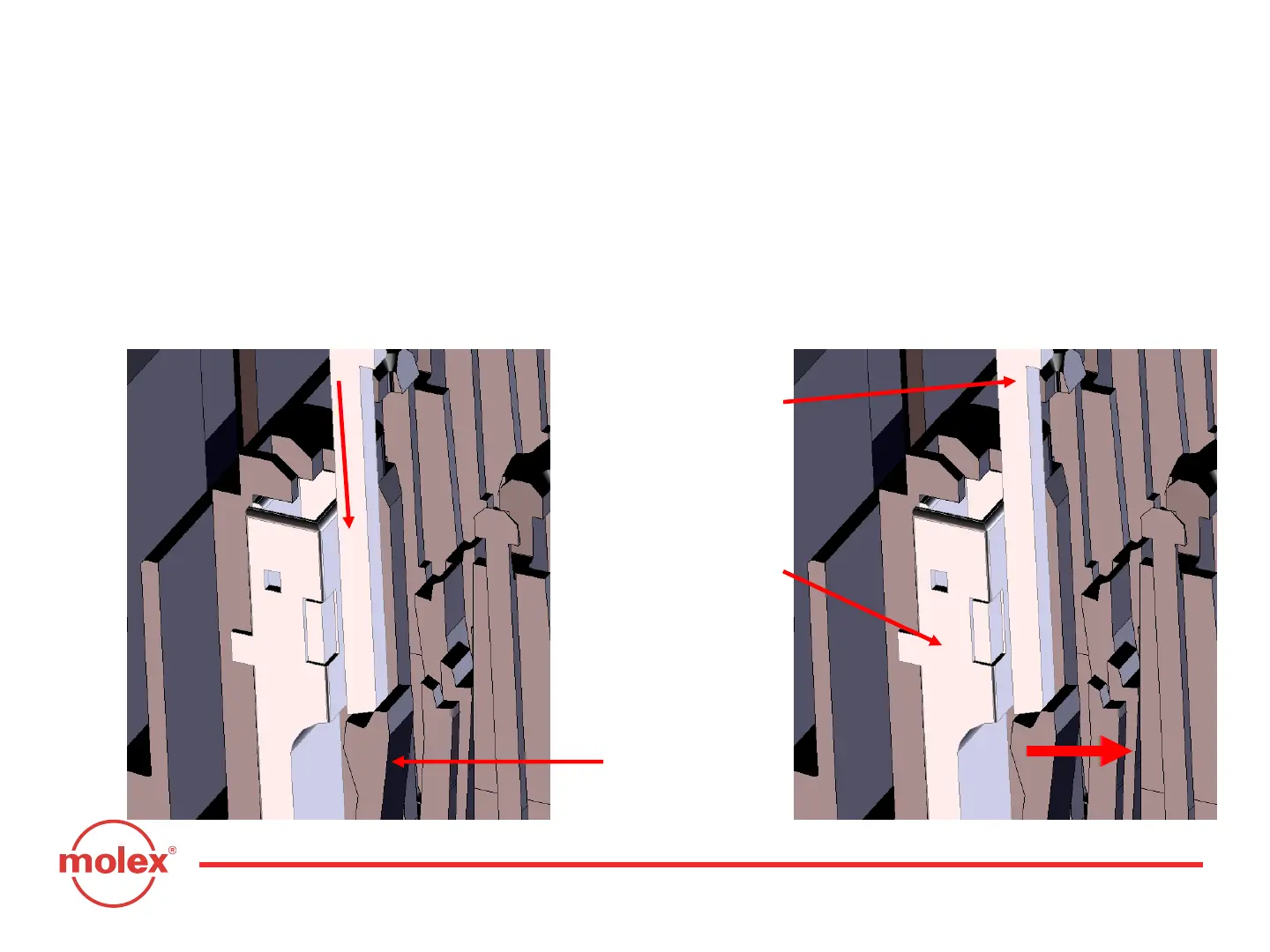

 Once the tool is inserted into the terminal service opening, push the service
tool (Fig. 5-20) until it wedges between the female terminal and the lock finger
(Fig. 5-21).
Service Tool
Lock Finger
Section 5: Service Instructions
Fig. 5-20 Fig. 5-21
Female Terminal
