MX123 Connection System User Manual - AS-34566-001 73
STEP 5: If excessive resistance is felt while un-mating the connector, continue
cleaning connector with the lever arm raised to the point of resistance as
shown below. Rotating the lever arm back and forth will help loosen
additional debris.
STEP 6: Repeat Steps 1 through 5 until you can un-mate the connector with little
resistance.

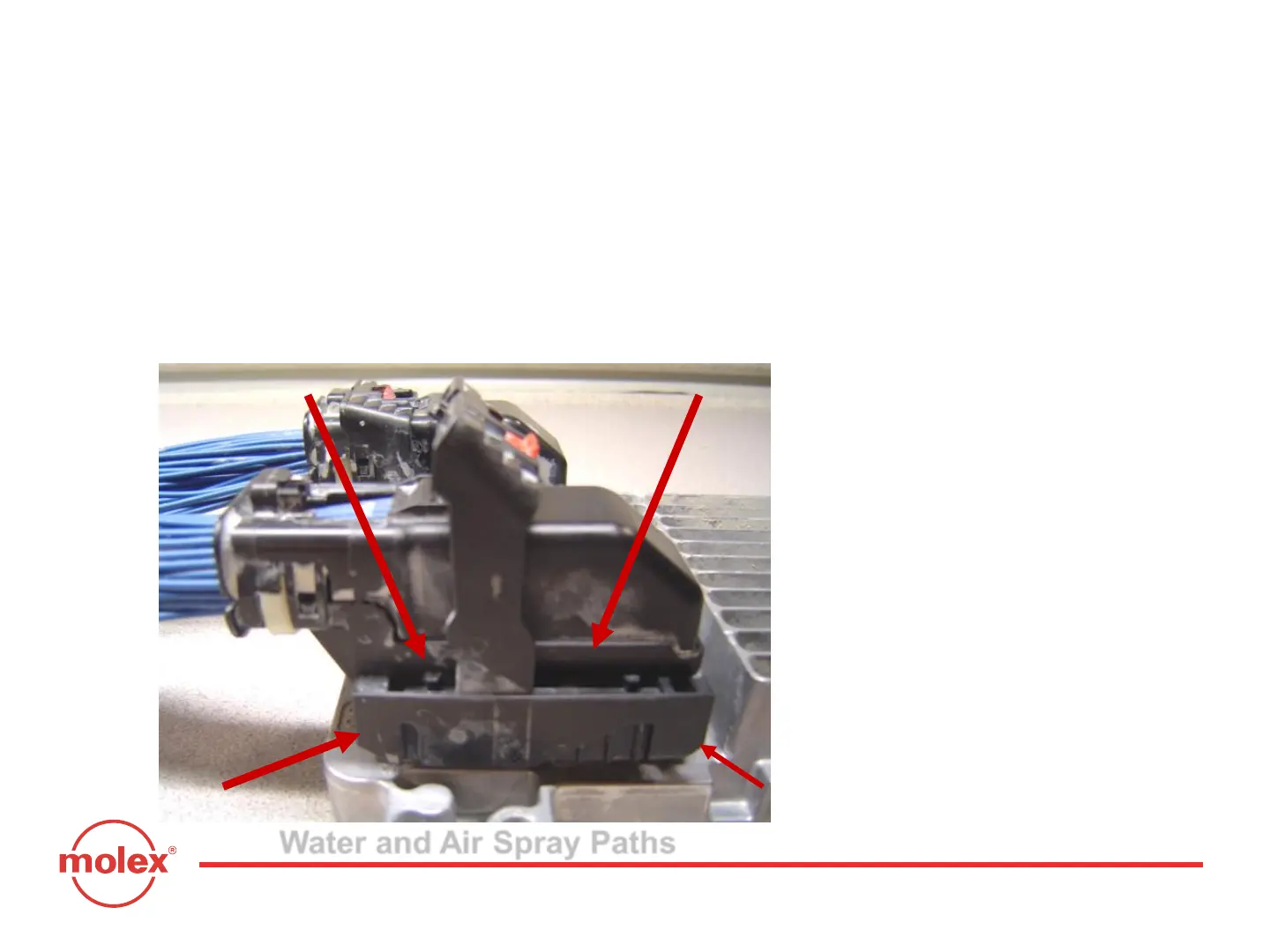

Water and Air Spray Paths
DO NOT APPLY WATER TO ANY
ECM ASSEMBLY IF
ANY CONNECTORS ARE
UN-MATED FROM THE ECM
HEADERS!
Section 11 (Appendix B): Cleaning Instructions
