Sling size guide
Easy and Basic Slings
Size
Color
code
Recomm.
weight
(Kg)
A
(cm)
B
(cm)
C
(cm)
XXL White 230-300 86 130 68
XL Blue 160-240 76 115 66
L Green 90-160 66 100 64
M Yellow 45-95 56 85 62
S Red 25-50 51 75 60
XS Light blue 17-25 46 65 58
XXS Pink 12-17 41 55 56
Choice of sling size depends on both user weight
and shape/size of user.
Bag for slings - Part. no 3048000
Molift Fabric Stretch - Part. no: 3040002
To be used together with Molift 8 point suspension.
Equipment
Suspensions
• 4 point plastic composite,Large, Size 560x350
mm, Part. no: 1330051
Padding - Part no 1330114
• 4 point steel, heavy duty, size 640x420 mm,
Part. no: 1330052
Padding - Part no 1330116
• 4 point steel, Large, size 560x350 mm,
Part. no: 1330053
• 4 point steel, Medium, size 450x300 mm,
Part. no: 1330054
• 2 points steel, Large, size 560 mm,
Part. no: 1330055
• 2 points steel, Medium, size 450 mm,
Part. no: 1330056
• 8 point suspension
Part no: 2140002
Scale
- Scale arm 255 kg (562 lbs).
Part no: 1331002
- Scale arm 230 kg (505 lbs).
Part no: 1331001
Scale arm should be ordered together with a suspen-
sion (see above). Arm and suspension will be deliv-
ered as one part. If no suspension is ordered, only
authorized personnell is allowed to mount the sus-
pension.

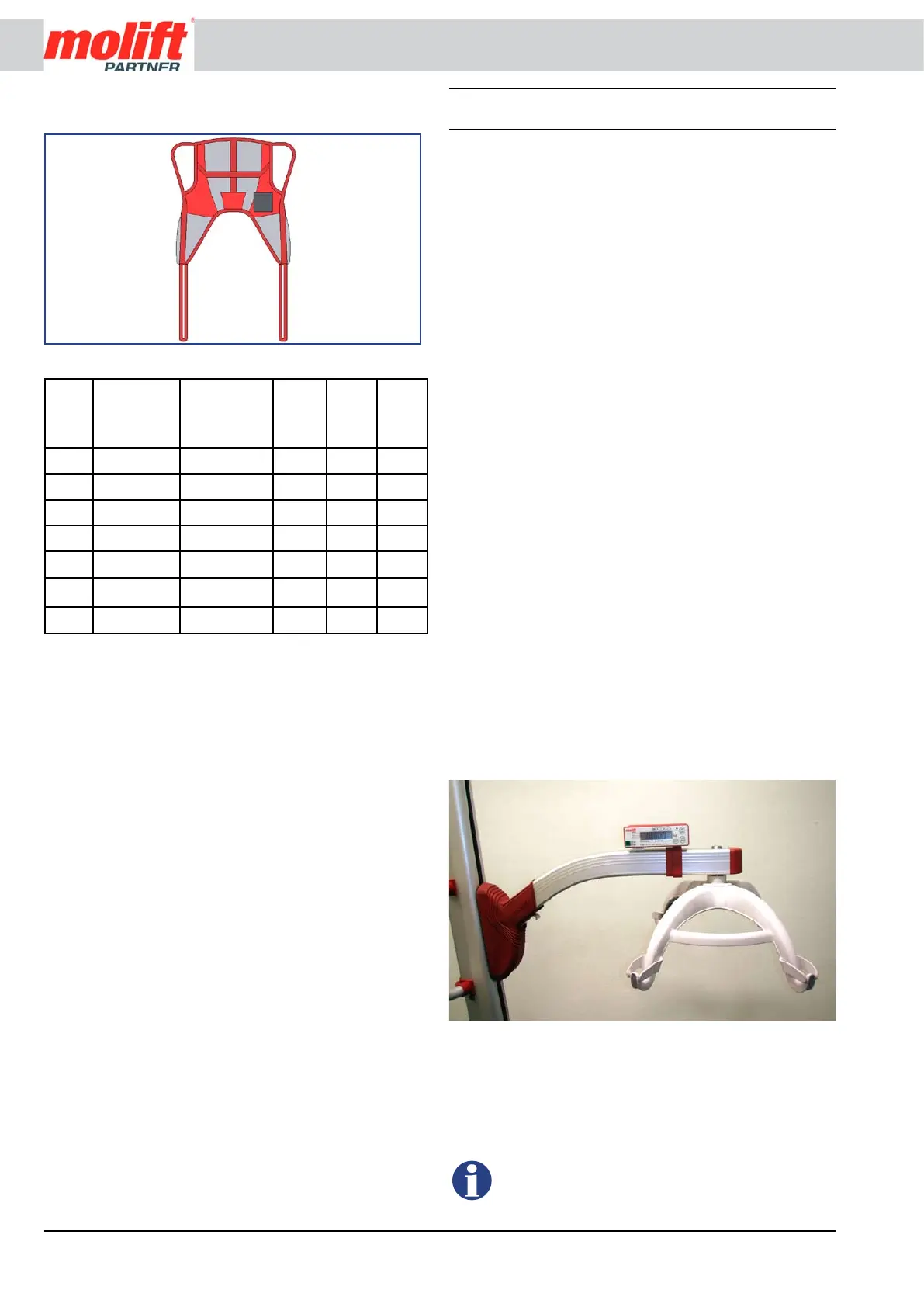

Picture: Scale arm 1331002 and suspension 1330051
• The complete lifting arm is removed from the
lifter and replaced with the lifting arm with the
scale and suspension. See mounting and dis-
mounting of lifting arm on page 7 in this manual.
Read the operating manual that comes to-
gether with the scale before use.
