– 26 –
Oven Temperature Sensor
The oven temperature sensor has a resistance of:
1091 Ω at room temperature
1654 Ω at 350°F
2634 Ω at 865°F (Clean temperature)
The oven temperature sensor has a resistance
change rate of 2 Ω per °F.

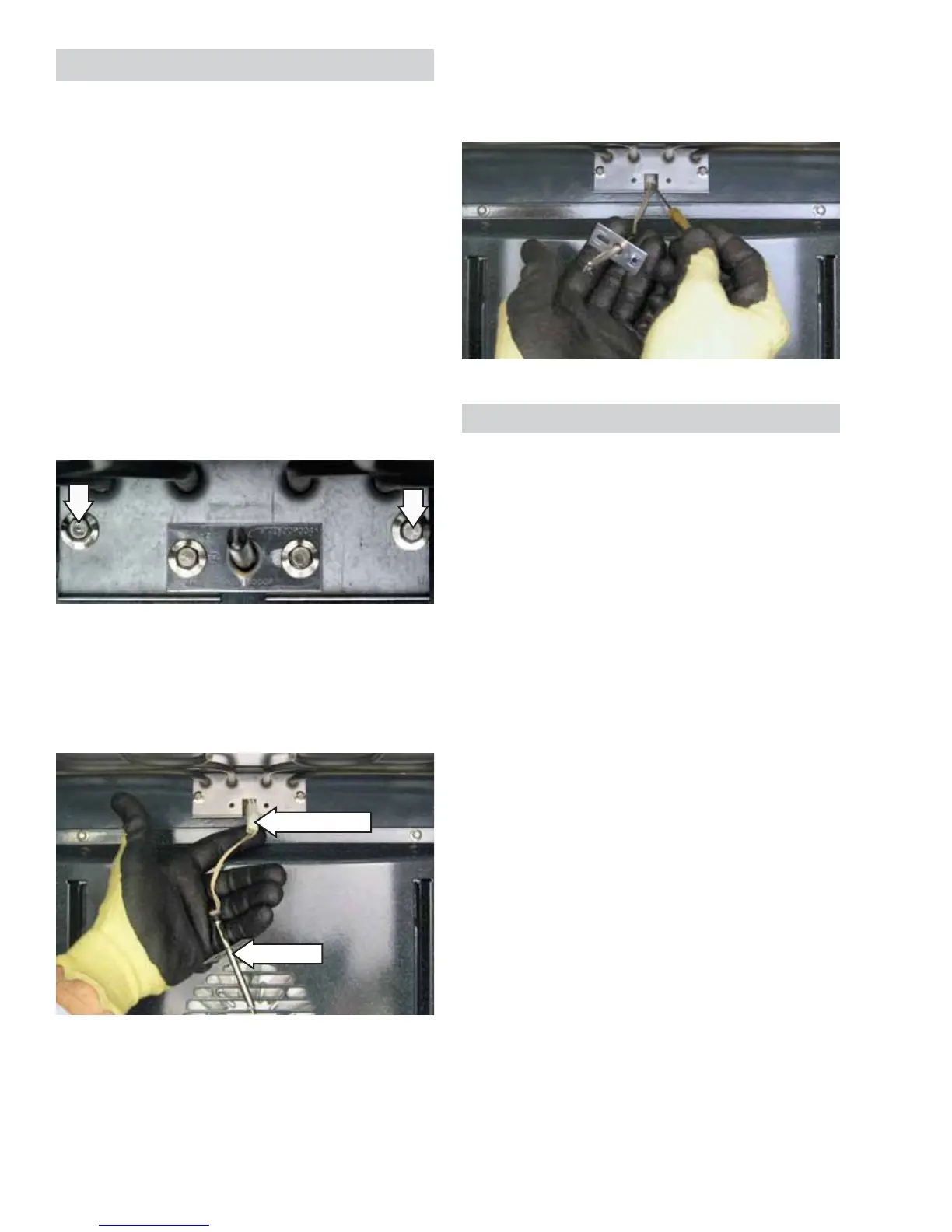

To remove the oven temperature sensor:
Disconnect power.
Remove oven racks. (See Oven Racks.)
Remove the two ¼-in. hex-head screws that
attach the sensor to the broiler element bracket.
•
•
•
1.
2.
3.
4. Carefully pull the sensor and sensor wiring
harness from the oven liner.
5. Disconnect the sensor wiring harness.
Note: When reinstalling the sensor, use a small fl at-
blade screwdriver to push and guide the sensor wire
harness into the oven liner.
Sensor
Disconnect
Broil Element
The broil element is composed of an inner and
an outer element. It is replaced as one unit.
The broil elements will not work if the
temperature probe is plugged in.
• The inside element is rated at 2330 watts, has
an approximate resistance value of 21 Ω, and
draws approximately 11.2 amps.
• The outside element is rated at 1570 watts, has
an approximate resistance value of 35 Ω, and
draws approximately 6.7 amps.
The broil element is located on the back wall of
the oven and can be removed from inside the
oven cavity.
To remove the broil element:
Remove oven racks. (See Oven Racks.)
Remove the two ¼-in. hex-head screws that
attach the sensor to the broiler element bracket.
(See Oven Temperature Sensor.)
Carefully pull out the sensor approximately 2-in.
from the broiler element bracket.
•
•
•
1.
2.
3.
(Continued next page)
