ā€“ 44 ā€“

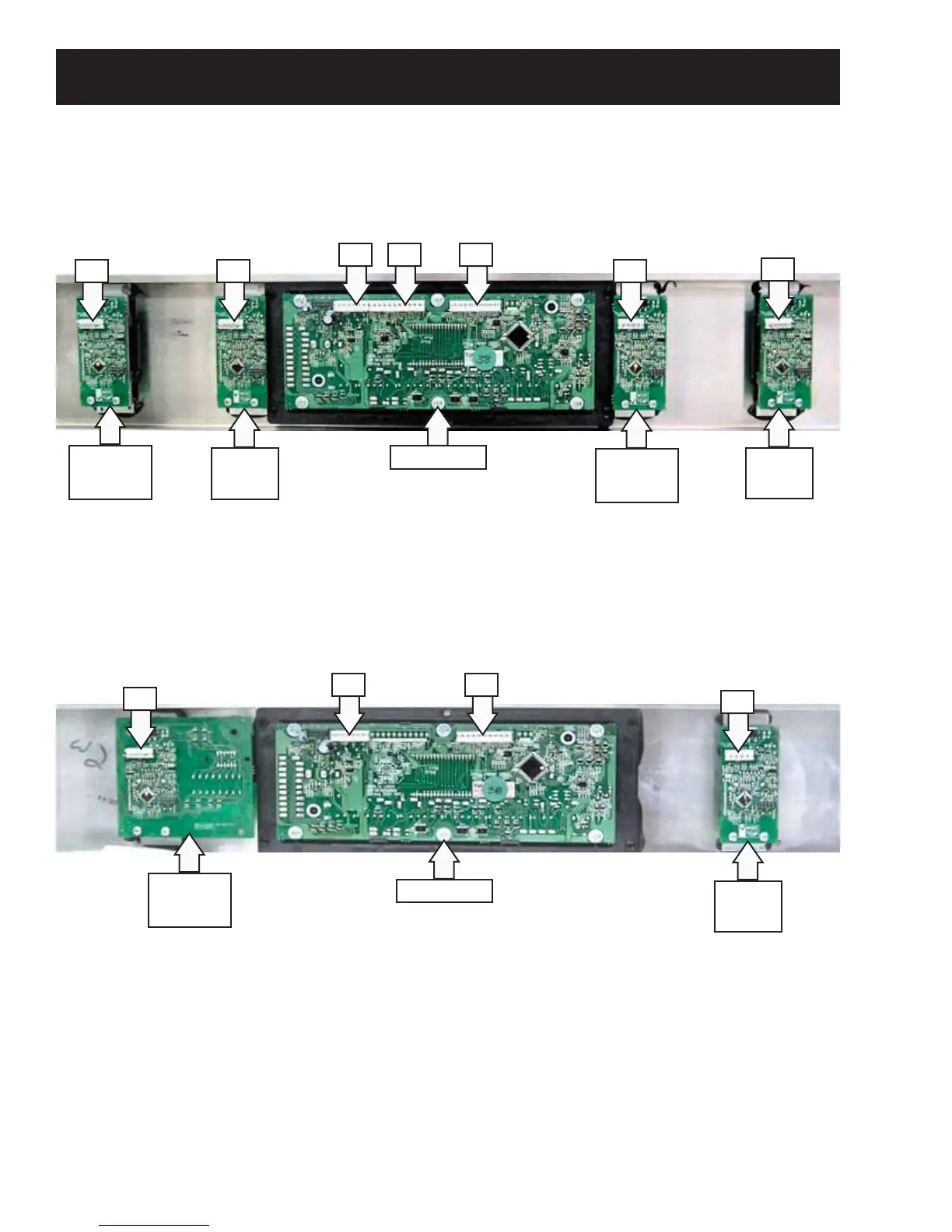

Control Boards Connector Locator
WARNING: Components are electrically HOT when voltage is connected to oven.
Control Panel for Double Wall Oven
Control Panel for Single Wall Oven
CN7
Logic Board
Temperature
Encoder
Board
Temperature
Encoder
Board
Temperature
Encoder
Board
Logic Board
Mode
Encoder
Board
Mode
Encoder
Board
Mode
Encoder
Board
CN1 CN2
CN7 CN2
CN1
CN1
CN1
CN1
CN1CN1
(Continued Next Page)
