– 29 –
The convection fan motor has approximate
resistance values between the following wires:
• Red and Blue: 174 Ω
• Red and Gray: 78 Ω
• Blue and Gray: 96 Ω

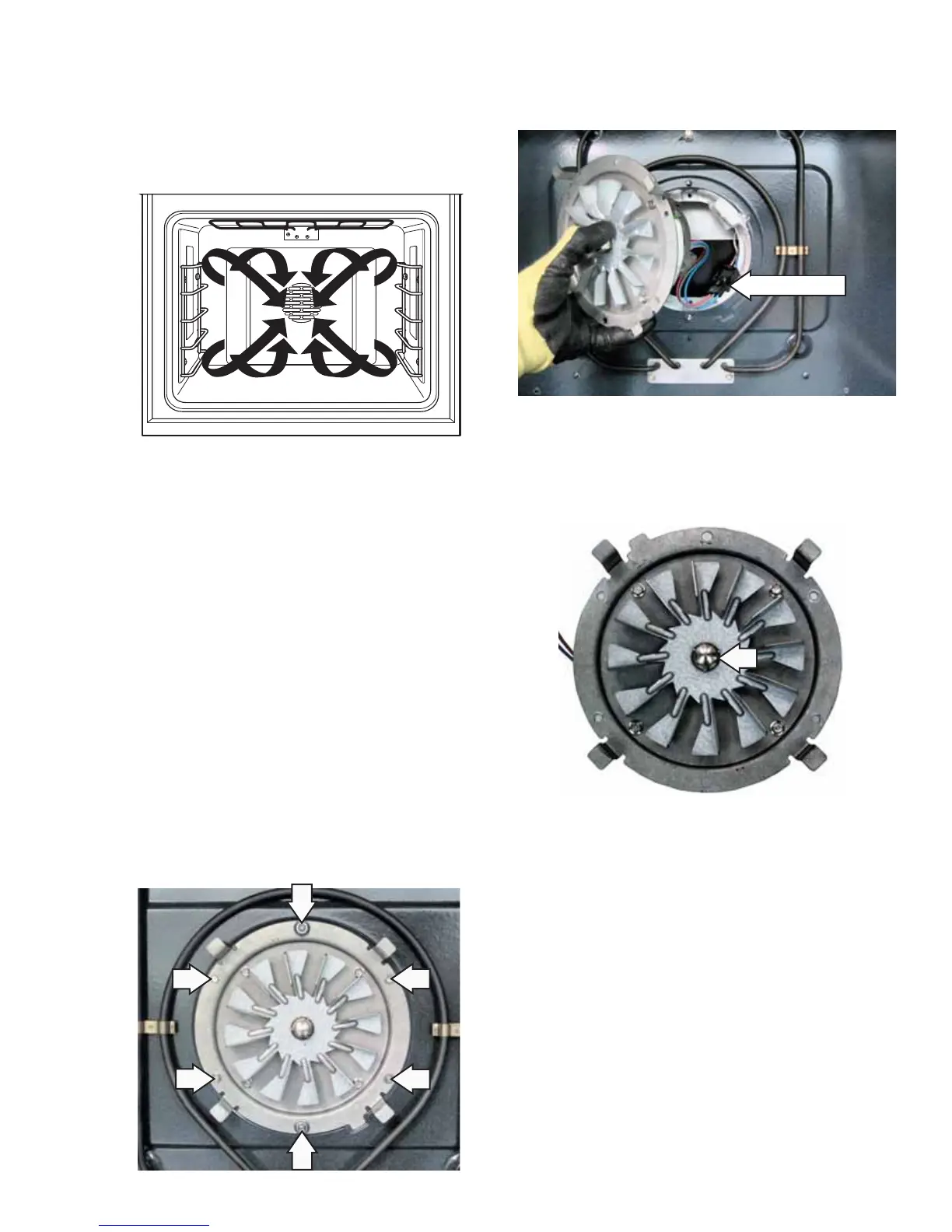

To remove the convection fan and motor
assembly:
Remove oven racks. (See Oven Racks.)
Remove the four ¼-in. hex-head screws that
hold the convection cover to the back wall of the
oven cavity.
Remove the outer four ¼-in. hex-head screws
and the two
-in. hex-nuts that attach the fan
assembly to the back wall of the oven cavity.
1.
2.
3.
Convection Airfl ow
4. Carefully pull the fan assembly into the oven
cavity and disconnect the fan motor wire
harness.
Disconnect
5. The fan blade is attached to the motor shaft
with a left-hand thread ½-in. hex-nut. Turn the
nut clockwise to remove.
The convection fan will turn on (after a short delay).
The fan may cycle on and off, and change direction
in any of these modes, to best distribute hot air in
the oven. The convection fan shuts off when the
door is opened.
