– 35 –

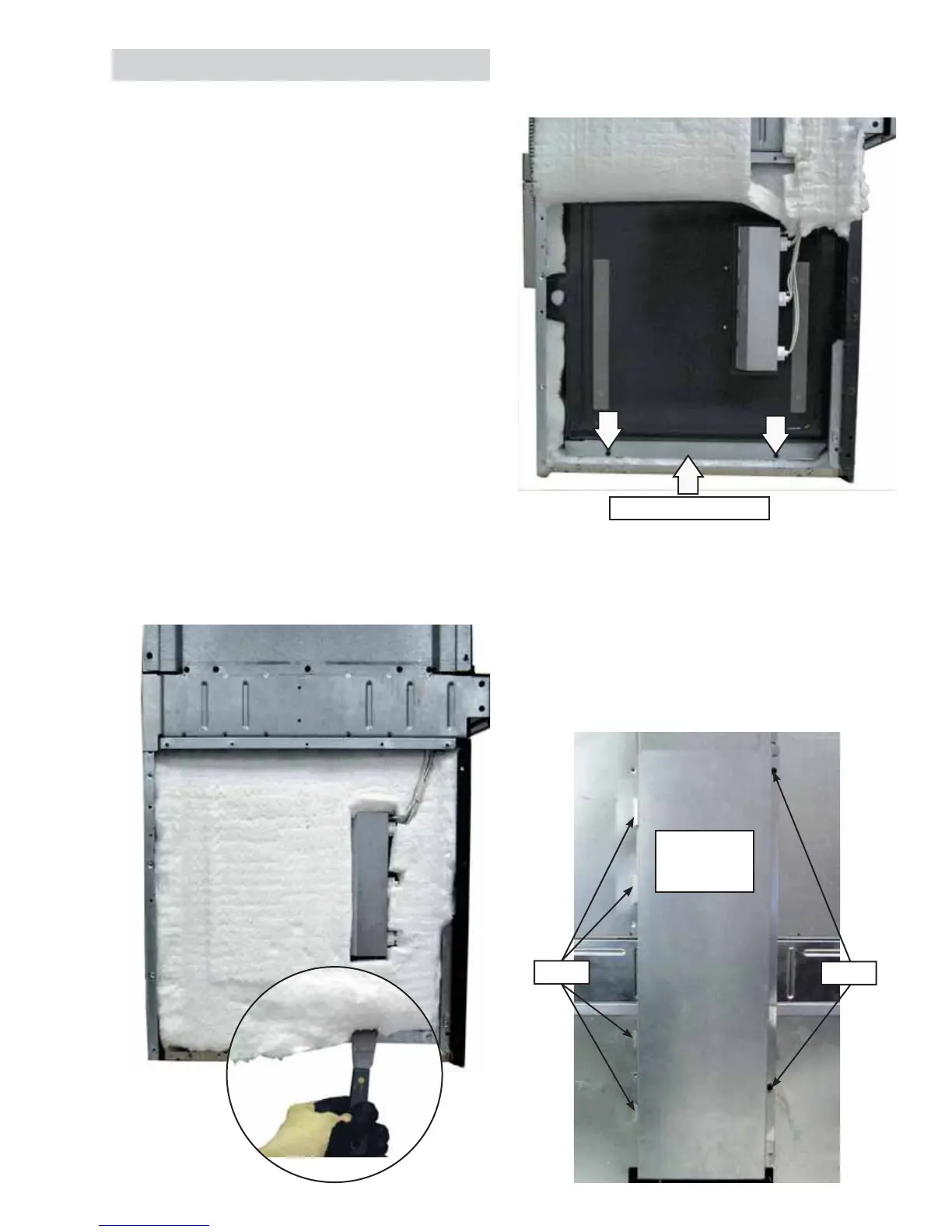

Bake Element
The bake element is composed of an inner and
an outer element. It is replaced as one unit.
• The inside element is rated at 1700 watts, has
an approximate resistance value of 33 Ω, and
draws approximately 7.3 amps.
• The outside element is rated at 1000 watts, has
an approximate resistance value of 56 Ω, and
draws approximately 4.3 amps.
The bake element is located under the oven
fl oor. The bake element terminals are located
behind the left side access panels on both the
single and double wall ovens.
To remove a bake element:
Remove the oven from the installation, then
remove the left side access panel for the
appropriate bake element. (See Oven Removal.)
Carefully lift the insulation from the outside of
the oven to access the screws that hold the
bake element cover in place.
•
•
1.
2.
3. Remove the two ¼-in. hex-head screws that
hold the bake element cover to the oven.
Bake Element Cover
(Continued Next Page)
4. On the single wall oven, (and the lower oven
on a double wall oven), the black access cover
is held in place by four ¼-in. hex-head screws.
On the double wall oven, the upper oven has an
additional access cover held in place by two ¼-
in. hex-head screws and 4 tabs.
Double Wall Oven Shown
Double Wall Oven Left Side Access Panel Shown
Tabs
Screws
Access Cover
for Upper Bake
Element
To Next Page
