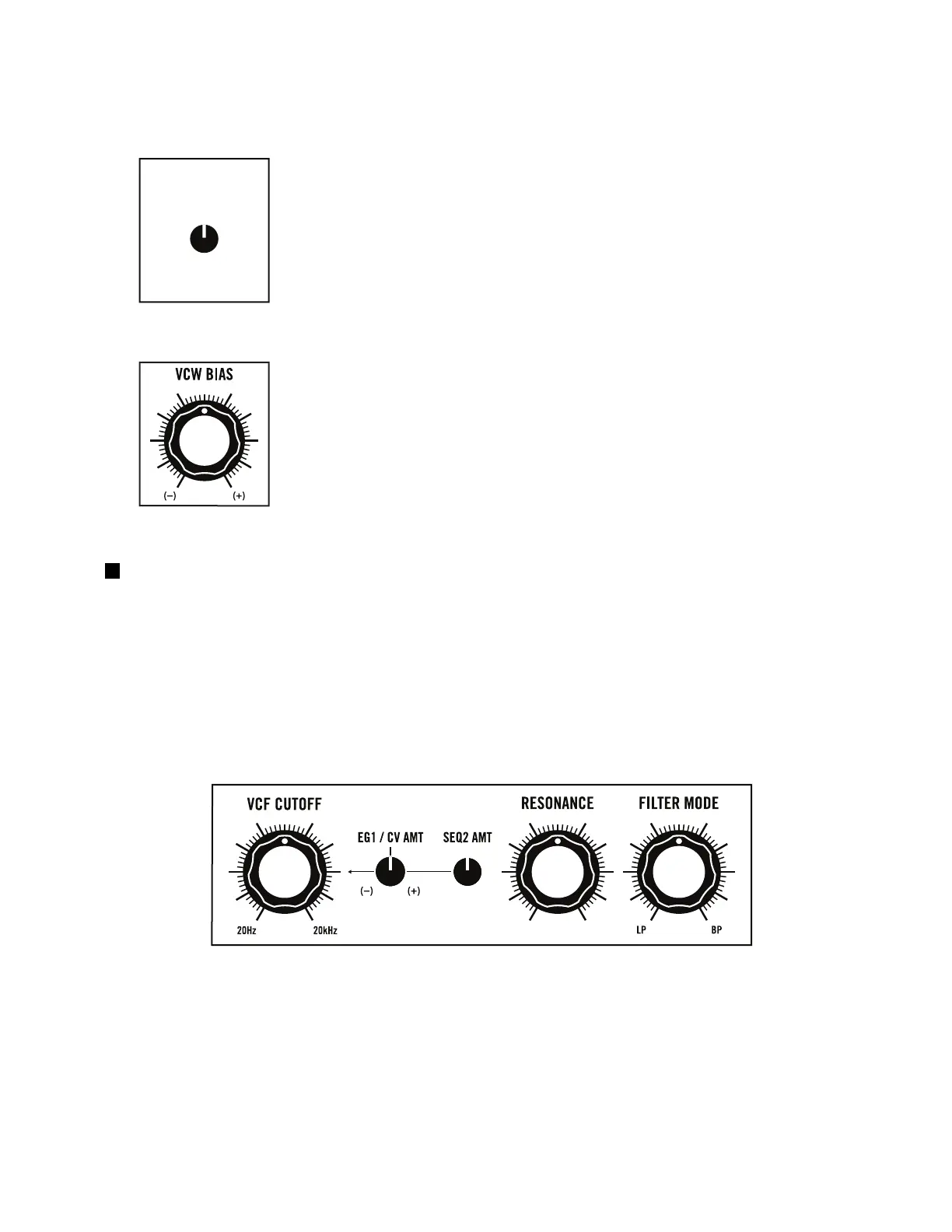

The output from the Labyrinth MIXER is sent both to the VCW and sent in parallel to the Voltage-
Controlled Filter (VCF). Labyrinth features a 2-pole state-variable filter allowing for crossfading
between lowpass (LP) and bandpass (BP) filter responses via the FILTER MODE control. VCF CUTOFF
controls the cuto frequency, RESONANCE adds a resonant peak at the cuto frequency, and the EG1/
CV AMT and SEQ2 AMT controls allow for dynamic timbral modulation.
VCW BIAS
This sets the bias amount in the wavefolder, adding either a positive DC oset
in the wavefolder above 12 o’clock or a negative DC oset below 12 o’clock.
SEQ1 AMT
THE WAVEFOLDER (Continued)
VCW SEQ1 AMT
This sets the amount that the sequence from SEQ1 (post SEQ1 CV RANGE
attenuator and quantizer) modulates VCW FOLD.
THE FILTER
To Next Page
