Moog LABYRINTH - Page 45

45
MIDI

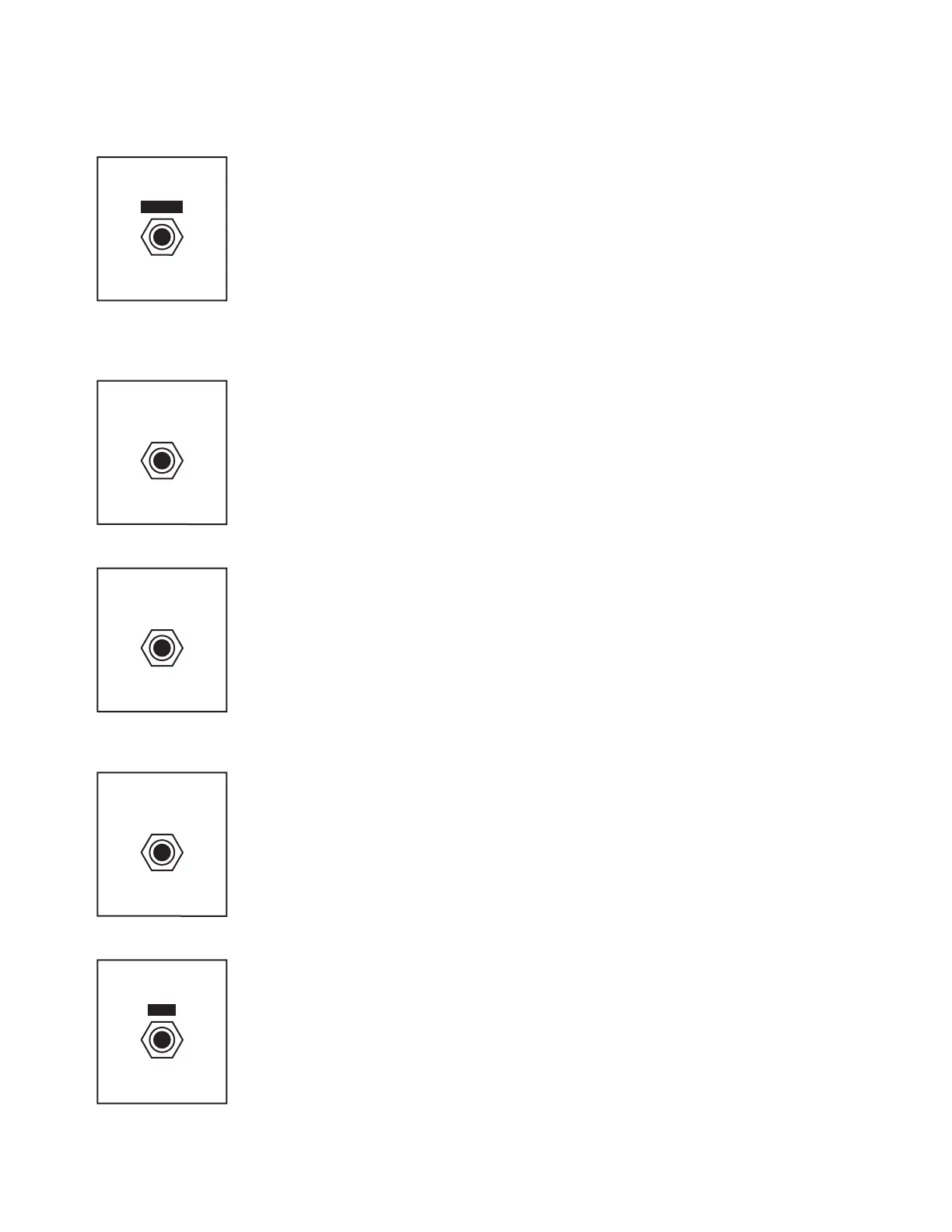

This is a 3.5mm MIDI RX input. MIDI responds to Clock, Note On, and Start/
Stop/Continue messages. Any MIDI clock activity automatically switches
Labyrinth’s clock to MIDI mode until a 5-second timeout period has elapsed
with no additional MIDI messages.
MIDI INPUT: MIDI Data
TRIGGER
This CV input triggers both envelope generators (EG1 and EG2). The rising
edge triggers the envelope. A gate or trigger patched to TRIGGER will trigger
both envelopes, but if the EG2 TRIG input has been patched, the TRIGGER
input will only trigger EG1.
CV INPUT: 0V to +10V
RESET
The rising edge resets play head to step 1. If write head is oset from the play
head (via BIT SHIFT + ADVANCE command), then the write head will remain
oset relative to the play head and will not reset to bit 1.
CV INPUT: 0V to +10V
CLOCK
This is the clock output for Labyrinth’s internal clock set by TEMPO. It outputs
MIDI clock if present.
CV OUTPUT: 0V to +5V
SEQ2 TRIG
MIDI
TRIGGER
RESET
CLOCK
SEQ2 TRIG
This is the trigger output from SEQ2. It produces a trigger when the play head
moves to a bit that is set to on.
CV OUTPUT: 0V to +5V
ROW EIGHT
PATCH BAY (Continued)
