34 | The Utilities (UTL)

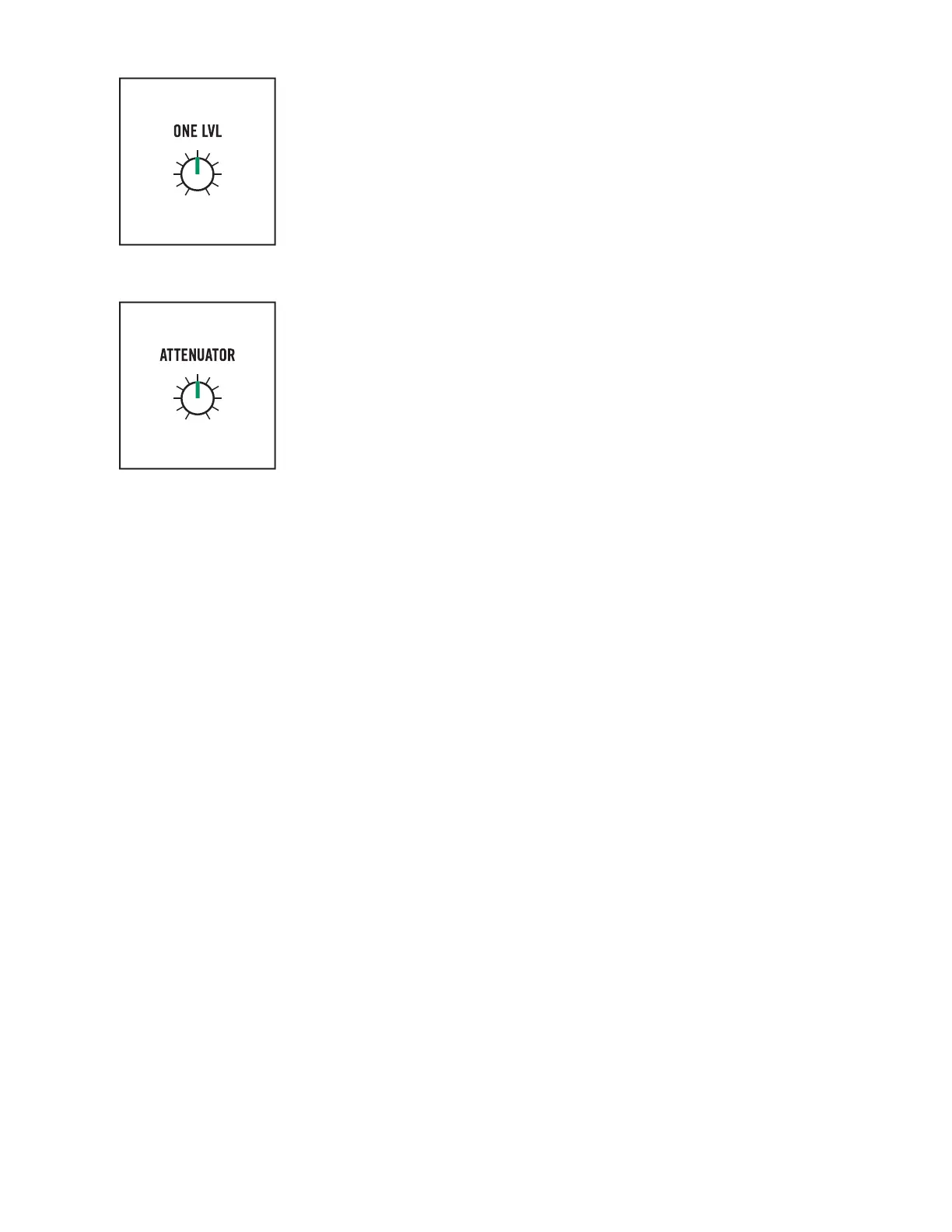

ONE LVL (Mixer Channel one Level)
Mavis is home to a two-input/one-output utility mixer. The level of the
signal connected to the ONE (-5) input jack (R2; C3) is controlled by the
ONE LVL knob. This knob can then act as a balance between the signal
connected to the ONE (-5) input jack and the TWO input jack (R4; C3).
The mixer output is available at the ONE+TWO output jack (R5; C3).
ATTENUATOR
The Attenuator can reduce the level of any signal connected to the
ATTN (+5) input jack (R6; C3). The attenuated signal is available at the
ATTN output jack (R7; C3).
