Monticello Flying Club Pilot Transition Manual: Mooney M20F
Page 8 of 42

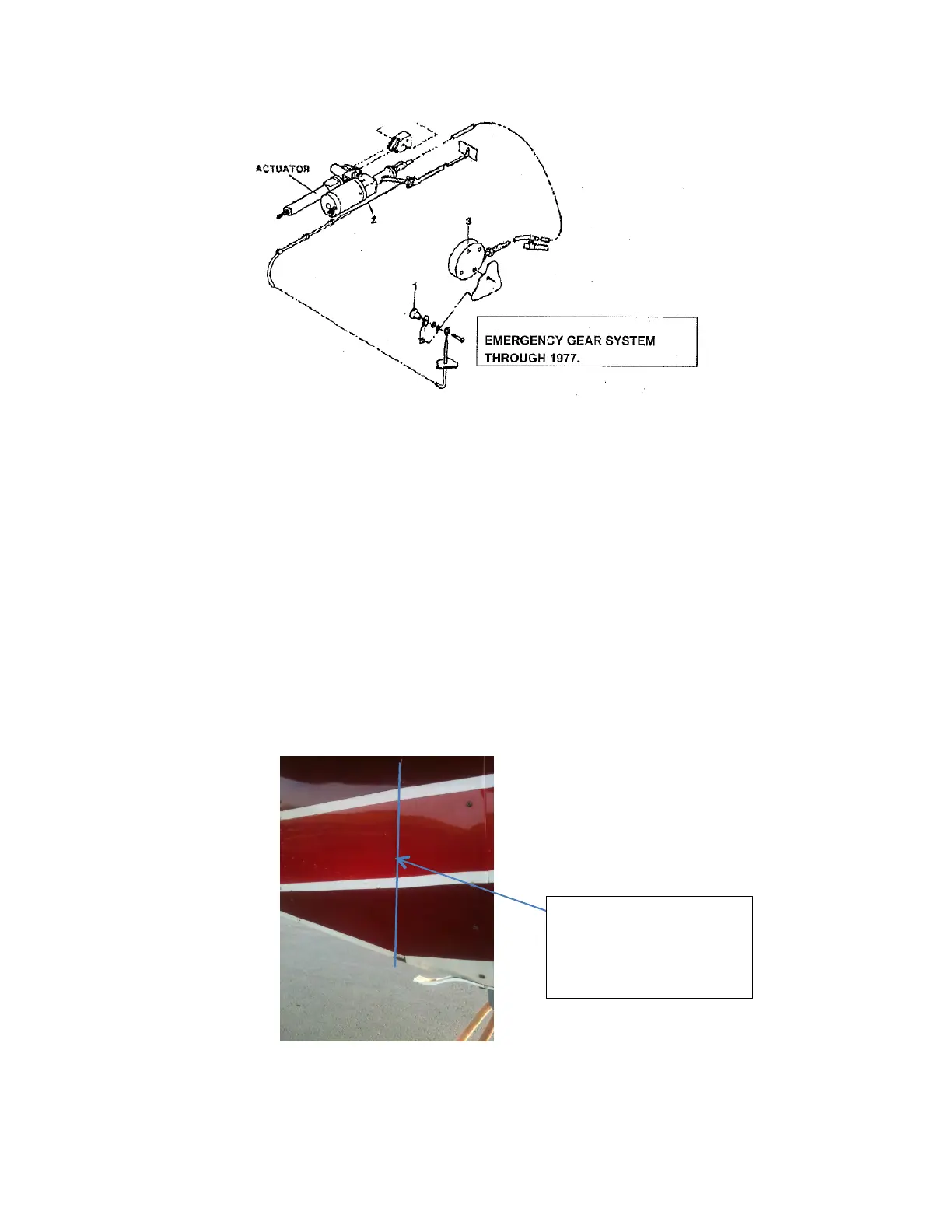

Emergency Gear System Diagram
FLIGHT CONTROL SYSTEMS
The dual flight control systems can be operated from either the pilot or copilot seat. All
flight controls are conventional in operation, using push-pull tubes to link the control surfaces to
the control wheels and rudder pedals. Formica guide blocks maintain control tube alignment and
dampen vibration. An interconnect bungee spring mechanism links the aileron and rudder
systems to assist in control coordination. The co-pilot's rudder pedals are removable.
ELEVATOR TRIM
You will notice that there is no trim tab on the airplane. Instead, the elevator trim wheel
in the cockpit rotates the entire empennage (right picture, above) to set the stabilizer angle of
attack around a hinge located aft of the battery compartment. The trim wheel is on the floor
between the pilot and co-pilot’s seats.
The trim wheel rotates the whole empennage around a hinge
