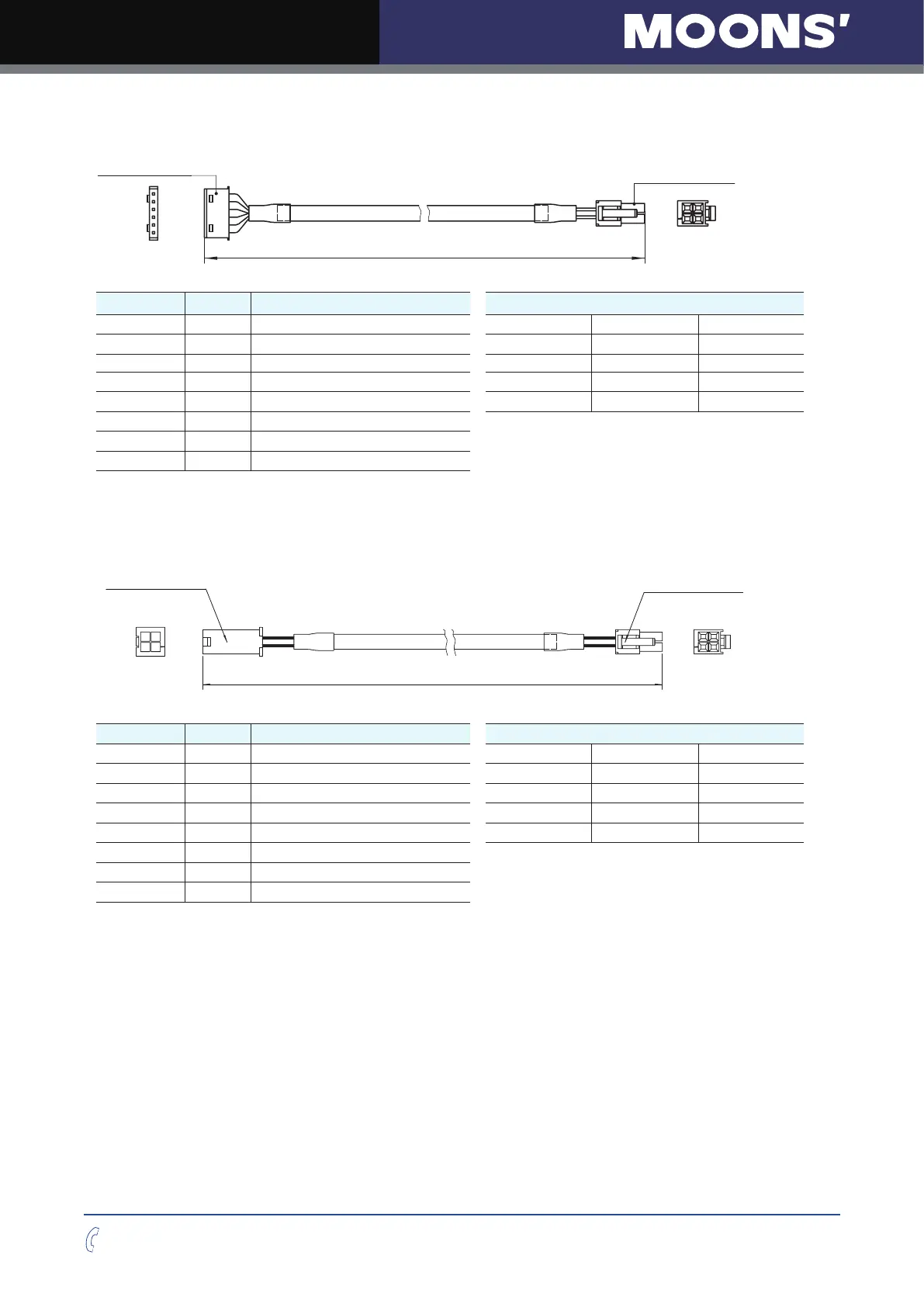

7.2.3 Extended motor cable（For SSDC drive and AM11RS motor）
Housing：51065-0600(Molex)
Crimp：50212-8000(Molex)
Housing：
39-01-3048(Molex)
Crimp：39-00-0038(Molex)
2
1
4
3
6
1
J1
L
J2
Model
Length(L) Description
Wiring Diagram
2109-100 1M Standard type PIN(J1) Color (Signal) PIN(J2)
2109-300 3M Standard type 1 Blue(B-) 1
2109-500 5M Standard type 3 Red(B+) 2
2109-1000 10M Standard type 4 Green(A-) 3
2109-100-C02 1M Flexbile type， 2 million times bends 6 Black(A+) 4
2109-300-C02 3M Flexbile type， 2 million times bends
2109-500-C02 5M Flexbile type， 2 million times bends
2109-1000-C02 10M Flexbile type， 2 million times bends
7.2.4 Extended motor cable（For SSDC drive and AM17/23/24/34SS-N、AM17/23/24/34RS
motor）
Housing：39-01-3049(Molex)
Crimp：39-00-0040(Molex)
Housing：39-01-3048(Molex)
Crimp：39-00-0038(Molex)
2
1
4
3
2
1
4
3
J1
L
J2
Model
Length(L) Description
Wiring Diagram
2103-100 1M Standard type PIN(J1) Color (Signal) PIN(J2)
2103-300 3M Standard type 1 Blue(B-) 1
2103-500 5M Standard type 2 Red(B+) 2
2103-1000 10M Standard type 3 Green(A-) 3
2128-100-C05 1M Flexbile type， 5 million times bends 4 Black(A+) 4
2128-300-C05 3M Flexbile type， 5 million times bends
2128-500-C05 5M Flexbile type， 5 million times bends
2128-1000-C05 10M Flexbile type， 5 million times bends
