49
Rev. 1.0
10/21/2018
SSDC-D/IP Hardware Manual
400-820-9661

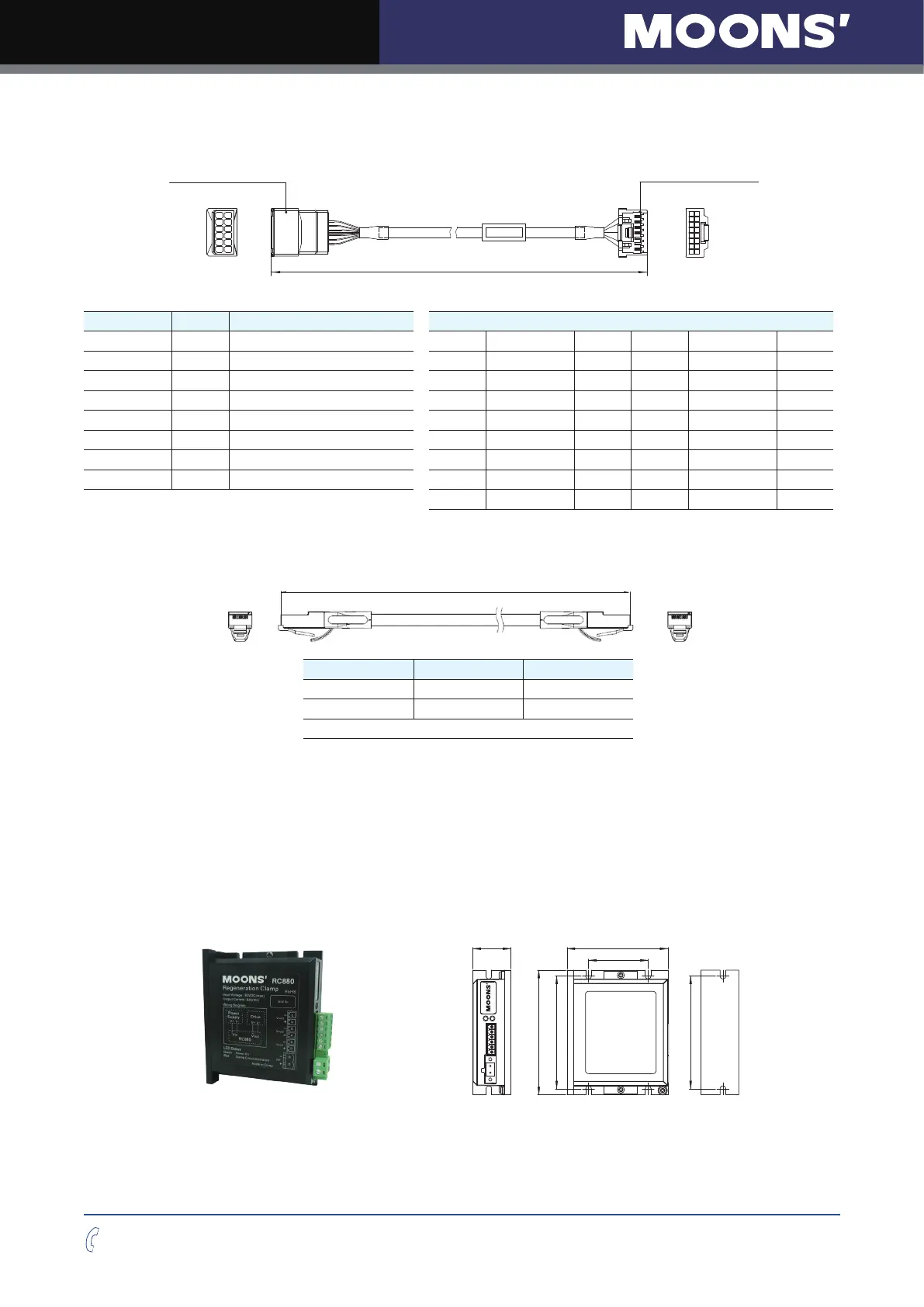

7.2.7 Extended encoder cable（For SSDC drive and AM17/23/24/34RS motor）
L
Housing：
501646-1600(Molex)
Crimp：
501648-1000(Molex)
Housing：1-1903130-6(TYCO)
Crimp：
1903120-1(TYCO)
15 16
J2
21
A1B1
J1
B6 A6
Model
Length(L) Description
Wiring Diagram
2116-100 1M Standard type
PINJ1)
Color (Signal)
PIN(J2) PIN(J1)
Color (Signal)
PIN(J2)
2116-300 3M Standard type A6 Blue(A+) 1 Brown(U+)
2116-500 5M Standard type B6 Blue/Black(A-) 2 Brown/Black(U-)
2116-1000 10M Standard type A5 Green(B+) 3 Gray(V+)
2116-100-C05 1M Flexbile type， 5 million times bends B5 Green/Black(B-) 4 Gray/Black(V-)
2116-300-C05 3M Flexbile type， 5 million times bends A4 Yellow(Z+) 5 A2 White(W+) 15
2116-500-C05 5M Flexbile type， 5 million times bends B4 Yellow/Black(Z-) 6 B2 White/Black(W-) 16
2116-1000-C05 10M Flexbile type， 5 million times bends A3 Red(+5V) 7 A1 Shield 10
B3 Black(GND) 8
7.2.8 Network Cable
Common Type Shielded Type Length(L)
2012-030 * 2013-030 0.3M
2012-300 2013-300 3M
* 2012-030 is included in the drive package(except SSDC-A type).
7.2.9 Regeneration Clamp RC880
MOONS’offers the RC880“regeneration clamp”to solve this problem. If in doubt, use an
RC880 for your first installation. If the“Regen”LED on the RC880 never flashes, you don’t need
the clamp.
Maximum input voltage：80VDC
Maximum output current：8A（rms）
Maximum absorbed power：50W
76
45
94
85
85
28.6
Unit：mm
To Next Page
