Moore Industries THZ3 - Section 2 - Calibration and Bench Check

www.miinet.com Moore Industries-International, Inc.
- 14 -
User’s Manual
238-741-00K
May 2019
Moore industries-International, Inc.
Section 2 - Calibration and Bench Check
Please refer to Figure 2.1 for proper terminal connections while calibrating or performing a bench
check on your THZ
3
/TDZ
3
.
TB1 TB2 TB3 TB4
2W RTD / Resistance 3W RTD / Resistance
TB1 TB2 TB3 TB4
4W RTD / Resistance
TB1 TB2 TB3 TB4
POTENTIOMETER
TB1 TB2 TB3 TB4
2W RTD / Resistance
TB1 TB2 TB3 TB4
POTENTIOMETER
TB1 TB2 TB3 TB4 TB5
POTENTIOMETER
TB1 TB2 TB3 TB4 TB5
4W RTD / Resistance
TB1 TB2 TB3 TB4 TB5
3W RTD / Resistance
TB1 TB2 TB3 TB4 TB5
2W RTD / Resistance
TB1 TB2 TB3 TB4 TB5
THERMOCOUPLE / mV
TB1 TB2 TB3 TB4 TB5
+
-
TB1 TB2 TB3 TB4
THERMOCOUPLE / mV
+
-
TB1 TB2 TB3 TB4 TB5
2W RTD / Resistance
THERMOCOUPLE / mV
TB1 TB2 TB3 TB4
+
-
TB1 TB2 TB3 TB4 TB5
THERMOCOUPLE / mV
+
-
Sensor 1
Sensor 1
Sensor 2
Sensor 2
TB1 TB2 TB3 TB4 TB5
3W RTD / Resistance
-PS
+PS
-PS
+PS
THZ
3
HPP
THZ
3
DIN
TDZ
3
TB1 TB2TB3 TB4 TB5
TB2
TB3
TB4
TB1
-PS
+PS
TB1 TB2 TB3 TB4 TB5
THZ3 HPP (4 Terminals) Input Connections
TDZ3 HP and THZ3 DIN (5 Terminals) Input Connections
Note: THZ
3
[HPP] (see gure 3.4) – When using two input sensors, Sensor 1
can be congured as 2-wire or 3-wire sensor. Sensor 2 is then restricted to
a 2-wire sensor.
Note: THZ
3
[DIN] (see gure 3.2) - When
using two input sensors you are
limited to 2-wire and/or 3-wire sensors.
4-wire sensors (RTDs) cannot be used.
Note: TDZ
3
– When using two input
sensors you are limited to 2-wire
and/or 3-wire sensors. 4-wire sensors
(RTDs) cannot be used.
GND
Note: *GND is Case Ground terminal
used for -AIS option only.

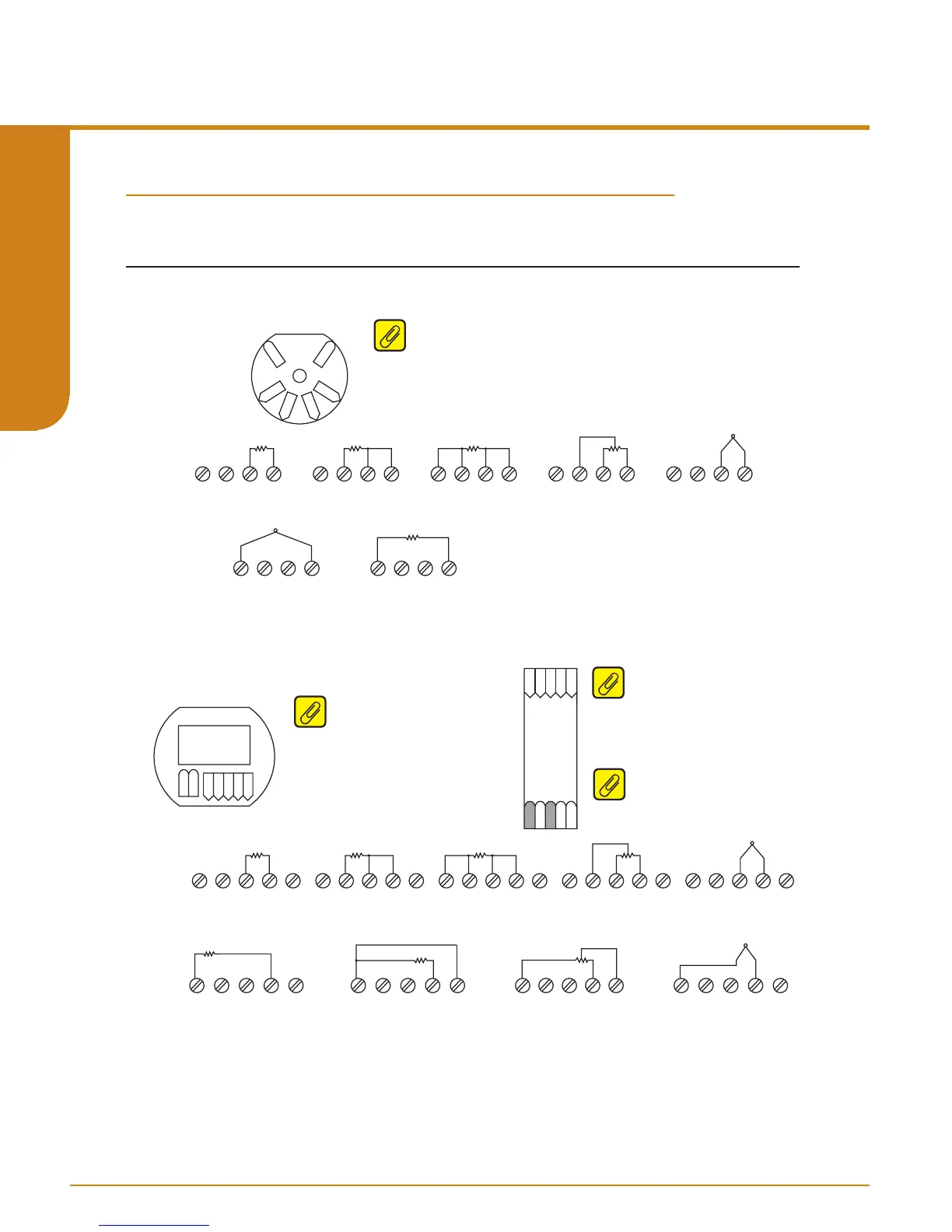

Figure 2.1. Terminal Designations
Programmable Smart HART Temperature Transmitter
THZ
3
/ TDZ
3
SECTION 2
