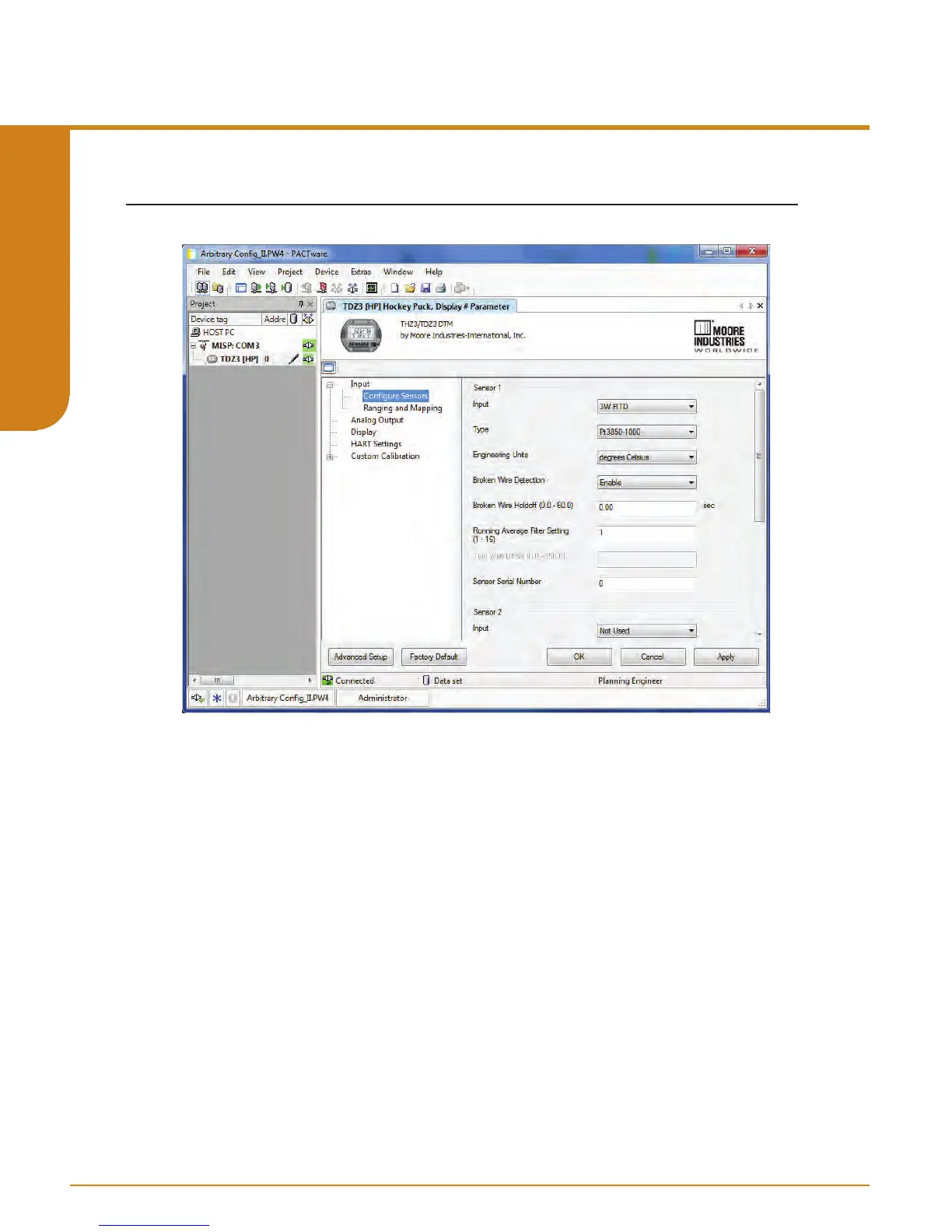

Figure 2.8. Verify your sensor type
Use PACTware to verify how your instrument is configured. Refer to Figure 2.8 below.
Check the Configure Sensors settings in PACTware. This will help you to be sure to apply the
correct input with which to trim your THZ
3
/TDZ
3
. By example: If the Sensor 1 Input is “3W RTD”
and the Type is “Pt3850-1000” and Engineering Units is “degrees Celsius” then you should be
using an accurate resistance source (such as a decade box) to emulate the 3-wire, Pt 3850,
1000Ω RTD and use the Celsius temperature tables to source the correct resistances for your
specific temperature range.
