Pre Start Inspection and Operation
3.6
• Visually inspect all of the hydraulic hoses, lines, and ttings for signs of damage, wear
or leaking.
• If any signs of damage are visible, do not operate the machine until repairs have been
made.
• Some examples of common hydraulic hose damage are shown in Figure 3–6.
7. Check for loose or missing fasteners.
• Inspect for any loose or missing bolts.
• Tighten or replace any missing bolts immediately.
8. While you are performing the daily maintenance, inspect the machine for any
signs of damage, such as missing or damaged components, cracked welds, etc.
9. Check the track assemblies to make sure that:
• The tracks are in good condition and are not showing any signs of wear.
• Track tension is properly set.
• Track drive motors are not leaking oil or hydraulic uid.
10. Grease pivot shafts with proper type of grease. There are 14 grease points on
this machine, see Figure 3–7 on page 3-7.
11. Inspect the Track Widening Stop Bolts, one for each track assembly, (Item 1,
Figure 3–8) for:
• Signs of wear or damage and make sure that the bolt is not loose.
• Check the widening bolt lock nut (Item 2, Figure 3–8) to make sure that it is tight
against the mounting block (Item 3, Figure 3–8).
NOTE: The lock nut, when it is fully tightened, secures the track widening stop bolt
to the mounting block.
• With the tracks fully extended, make sure that either one or both of the at washers that
are between stop bolt head and track frame are loose. The track extension system has
been designed to have a slight gap between the track frame and the stop bolt head when
the tracks are fully extended. If this gap is not noted, the track widening stop bolts need
to be adjusted. Refer to Section 4 for the adjustment instructions.
1. End ttings damaged or leaking.
2. Outer covering chafed or cut, and wire reinforcing is exposed.
3. Hose shows signs of kinking or crushing.
4. Outer covering ballooning.

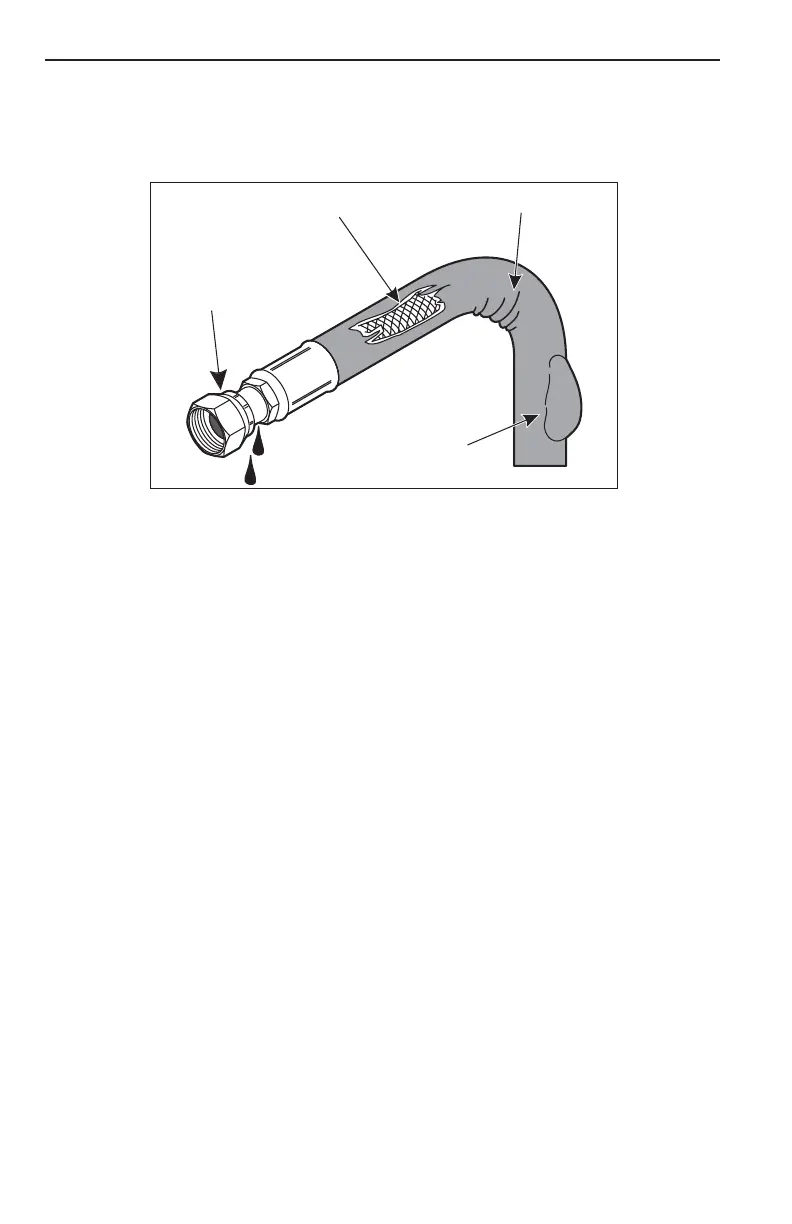

Figure 3-6 Hydraulic Hose Damage
1
4
2
