SECTION 7 - ROUTINE SERVICING INSTRUCTIONS
Reassemble the boiler in the following order:
1. Ensure that the condensate trap/siphon is full of water.
2. Ret the burner ensuring the sealing gasket is correctly

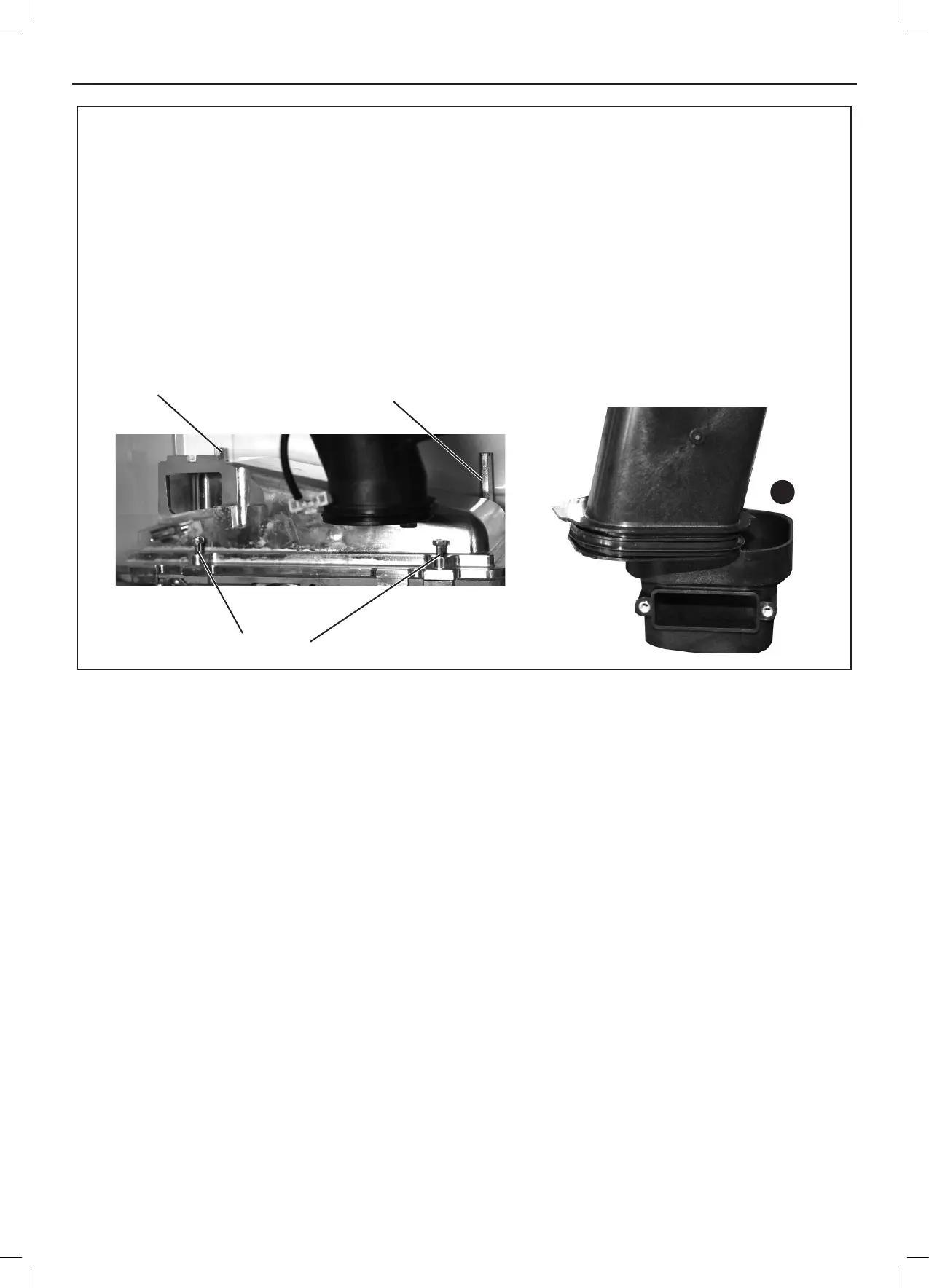

positioned and free from damage (tighten the 4 xing screws
in the sequence A,B,C,D, shown below).
3. Ret the fan / venturi assembly ensuring the retaining tabs
are correctly positioned and the sealing gasket is correctly
positioned and free from damage.
4. Reconnect the fan electrical leads.
7.11 REASSEMBLY
5
A
5. Remove the sump cover and ret the lower ue manifold
as shown.
6. Ret the sump cover.
7. Ret the boiler upper and lower front panels.
IMPORTANT. Make sure that the boiler upper front panel
is correctly tted and that a good seal is made. Replace
seals as necessary.
8. Turn on the gas supply at the gas service cock.
9. Reconnect the electrical supply.
