Instruction Manual
MORSØ Mitring Machine
Model F
14
Technical Data C-2

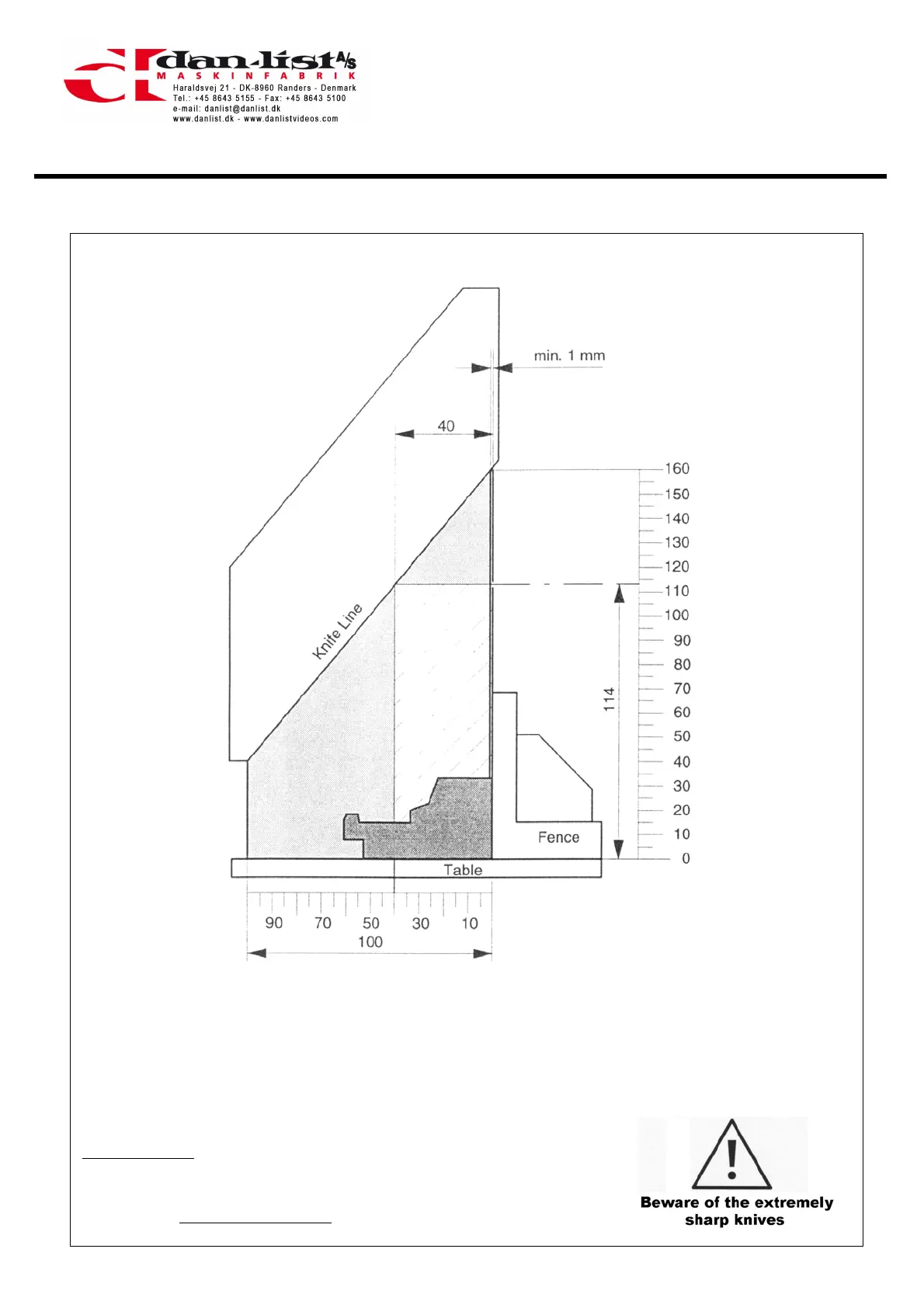

Dimensions of Work Piece
Using the diagram both the width and height of the cross section of the work piece can be
determined.
The knife line determines the max. height.
On the right (vertical) measuring scale the height can be read, and on the horizontal
measuring scale the width can be read.
Please Note:
The factory preset the cutting height to 145 mm as standard.
Should you require a max. cutting height of 185 mm.
Please see Service, page F-6.
