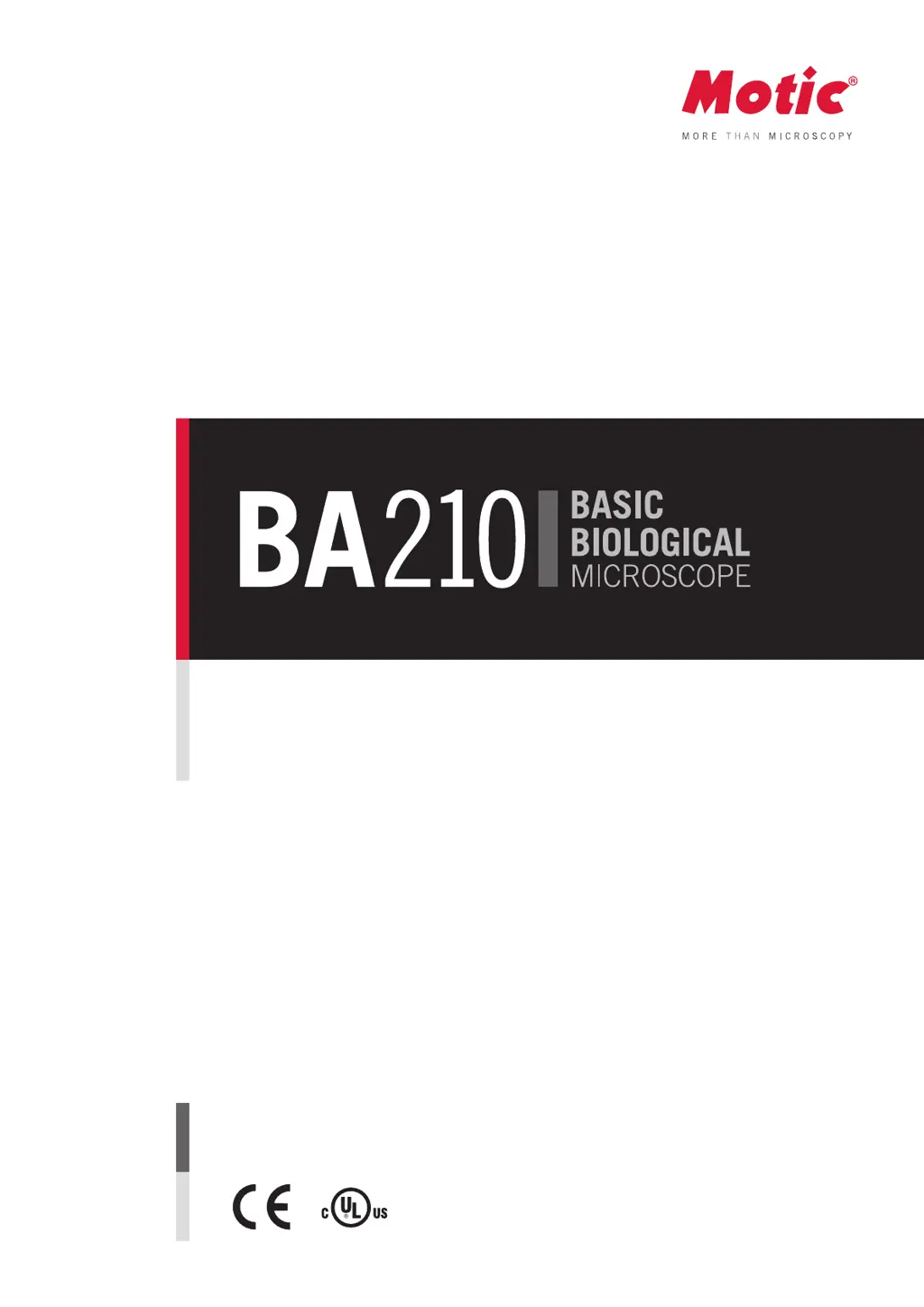

Motic BA210 - User Manual

Questions and Answers

K
Kathleen KnoxAug 19, 2025
How to fix vignetting on Motic Microscope?
- M
  marshallteresaAug 19, 2025
  If you're experiencing vignetting or uneven brightness, or if the field of view is only partially visible, there are several potential causes. First, check that the lamp is properly installed. Next, ensure the condenser is correctly mounted and adjusted to the right height. Also, open the aperture diaphragm if it's closed too far. Make sure the revolving nosepiece is clicked into position, the trinocular eyepiece tube optical path selector lever is properly adjusted and the filter is placed in properly.
A
Alyssa HeathAug 22, 2025
Why is the image quality poor on my Motic BA210?
- M
  Marc GuerreroAug 22, 2025
  A poor image with low contrast or resolution on your Motic Microscope can stem from several issues. Ensure the condenser is adjusted to the correct height and the aperture diaphragm isn't closed too far. Verify that you're using a cover glass of the correct thickness, or add one if it's missing. If using immersion oil, make sure there are no air bubbles and that you're using the specified type, avoiding its use on dry objectives. Clean any greasy residue from the eye lens and adjust the illumination correctly.
J
jonathan78Aug 25, 2025
Why does my eyes strain when using Motic Microscope?
- D
  Daniel HoldenAug 25, 2025
  Eye strain or fatigue when using the Motic Microscope can be caused by several factors. Make sure the interpupillary distance is correctly adjusted, and that you've properly made the diopter adjustment. Also, ensure that the left and right eyepieces match in field of view and increase the illumination if it's inadequate.
I
ihughesAug 26, 2025
How to clean dust from Motic BA210 field of view?
- O
  oyatesAug 27, 2025
  If you notice dust or dirt in the field of view, start by opening the aperture diaphragm if it's closed too far and adjust the condenser to the correct height. Then, carefully clean the specimen surface. Also, clean the field lens, filter, condenser, or eyepiece.
K
Karla DonaldsonAug 28, 2025
Why is there no cohesion of the binocular image in my Motic Microscope?
- H
  Henry WilsonAug 28, 2025
  If you're experiencing a lack of cohesion in the binocular image, it might be due to differences in magnification or field of view between the left and right eyepieces; adjust them accordingly. Also, check and adjust the interpupillary distance. Finally, ensure the eyepiece diopter is correctly adjusted.
M
Maria JosephAug 30, 2025
What to do if Motic BA210 lamp does not light?
- J
  joseph91Aug 30, 2025
  If the lamp does not light, first ensure the power supply is properly plugged in. If it is, check whether the lamp is installed; if not, install it. If the lamp is installed but still doesn't light, the lamp may be burnt out and require replacement.
D
Danielle KlineSep 1, 2025
Why is the focus uneven on my Motic BA210 Microscope?
- B
  Brandon KirbySep 1, 2025
  Uneven focus with the Motic Microscope can occur if the specimen holder isn't securely fixed on the stage, so ensure it is. Also, make sure the specimen itself is secured in position. Finally, check that the specimen isn't tilted and is flat on the stage surface.
L
Leah CalhounSep 3, 2025
Why do high magnification objectives strike the specimen on Motic BA210 Microscope?
- S
  Shannon GraySep 4, 2025
  If high magnification objectives strike the specimen when switching from low to high magnification, check if the slide is upside down and flip it if necessary. Also, the cover glass may be too thick, so use a thinner one. Additionally, make sure the eyepiece diopter is adjusted.
P
patrickandersonSep 5, 2025
Why can't I focus with high magnification objectives on my Motic BA210?
- M
  Michael MunozSep 5, 2025
  If focusing isn't possible with high magnification objectives, check if the slide is upside down and correct it. Also, the cover glass may be too thick; try using a thinner one.
E
Eric AguirreSep 8, 2025
Why is the lamp flickering on my Motic Microscope?
- W
  William JohnsSep 8, 2025
  A flickering lamp could be due to connectors that are not securely connected; ensure they are. The lamp might also be near the end of its service life, so consider replacing it. Lastly, check that the lamp is securely plugged into the socket.

Summary

INFINITY OPTICAL SYSTEM

CONVENTIONAL MICROSCOPE

Microscope Terminology

Abbe Condenser

A sub-stage condenser that collects light and directs it onto the specimen.

Aperture, Numerical (N.A.)

Factor determining efficiency of condenser/objective, represented by n sina formula.

Magnification

The ratio of image size to object size, usually referring to lateral magnification.

Depth of Focus

Axial depth where the image remains sharp; shallower with higher N.A. objectives.

Field of View (F.O.V.)

The portion of the image field visible to the observer's retina at one time.

Resolving Power

Ability of an optical system to separate two distinct points or parallel lines.

Nomenclature

Setting Up The Instrument

Operating environment

Indoor use, ambient temperature, humidity, altitude, and air pressure limits for operation.

Assembling The Microscope

Verifying Input Voltage

Automatic voltage selection and electrical specifications for Halogen and LED lamps.

Lamp and Lamp House Cover

Procedure for replacing the lamp, including safety precautions for hot components.

Objectives

Guidance on screwing objectives into the revolving nosepiece for correct magnification.

Condenser

Steps for raising the stage, condenser carrier, and inserting the condenser.

Eyepieces

Tips for using matching eyepieces, locking, and removing them.

Microscopy, Manipulation Of Each Component

Coarse And Fine Focusing

Details on using coarse and fine focus knobs, their movement limits, and adjustment precision.

Coarse Focus Torque Adjustment

How to adjust the torque of the coarse focus knob by turning the adjustment ring.

Coarse Focus Height Stopper

Using the stopper to mark focus position and limit coarse focus knob movement.

Optical Path Changeover Slider

Selecting light distribution between trinocular tube and phototube using a slider.

Interpupillary Distance Adjustment

Adjusting distance between eyepieces for single field of view with both eyes.

Diopter Adjustment

Compensating for vision differences between eyes and refocusing after magnification changes.

Condenser (Sourced Focused (Critical) Illumination)

Using the condenser to focus light source onto specimen for even illumination.

Use Of Aperture Diaphragm

Adjusting diaphragm for resolution, contrast, depth of focus, and brightness.

Brightness And Contrast Adjustment

Using neutral density and interference filters for brightness and contrast control.

Photomicrographic Procedure

Using Oil Immersion Objectives

Troubleshooting Table

Care And Maintenance

Do not disassemble

Warning against disassembly due to warranty void and safety risks.

Cleaning the Microscope

Guidelines for cleaning surfaces, lenses, and components using safe solvents.

Disinfecting the Microscope

Follow standard laboratory procedures for disinfection.

When not in use

Instructions for covering, storing, and protecting the microscope during periods of non-use.

Motic BA210 Specifications

General

Type	Biological Microscope
Objective Lenses	4x, 10x, 40x
Magnification	40x to 1000x
Nosepiece	Quadruple
Head	360° rotatable
Focusing	Coaxial Coarse and Fine Focus
Stage	Mechanical Stage
Illumination	LED Illumination
Condenser	Abbe Condenser N.A. 1.25
Power Supply	100-240V
