CHASSIS
6 - 38
Griso V1100
6.3 REAR SUSPENSION

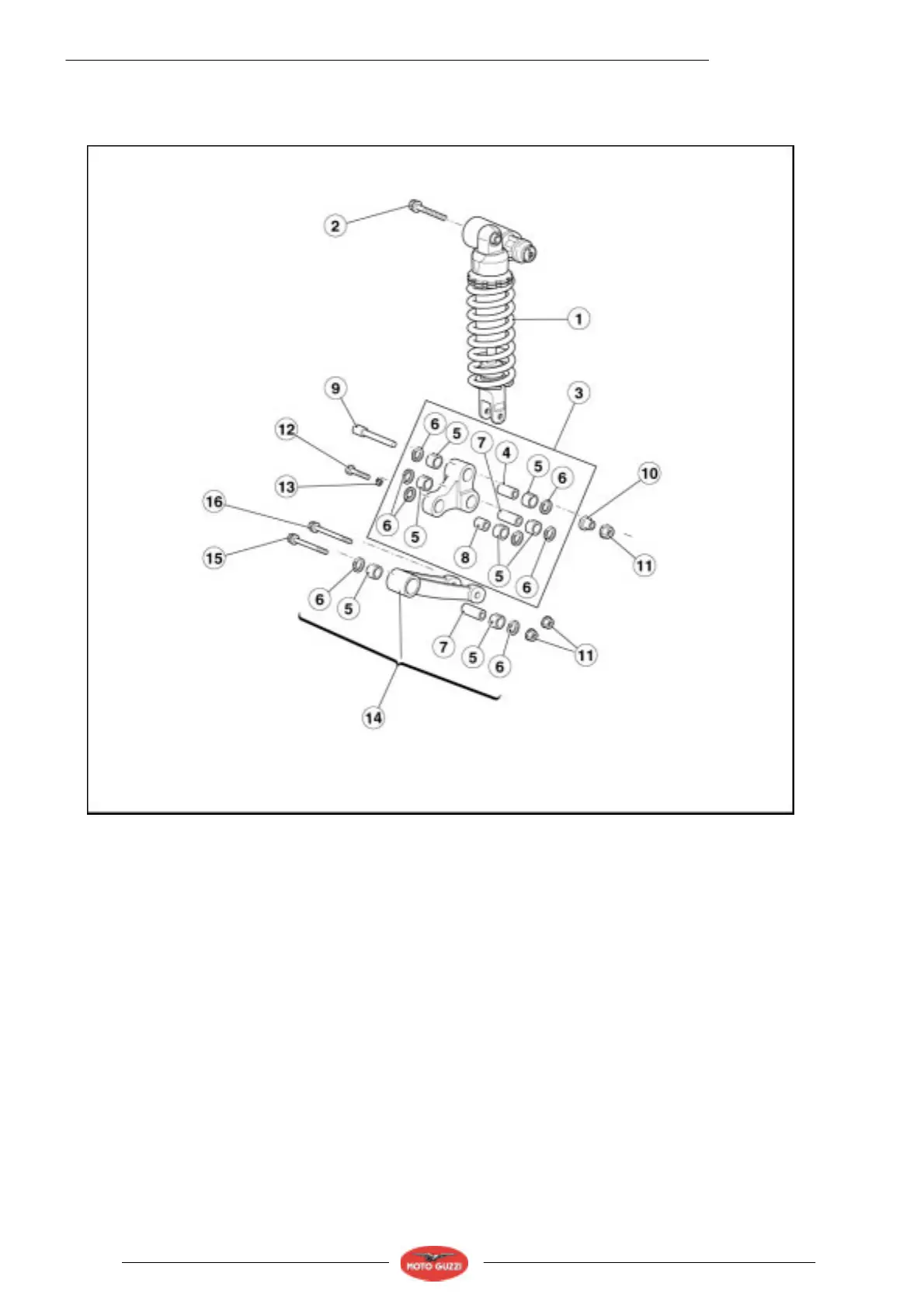

6.3.1 REAR SUSPENSION DIAGRAM
Key:
1. Shock absorber
2. Flanged TE screw M10x80
3. Double-connecting rod
4. Double-connecting rod gudgeon pin L40
5. Roller case
6. Oil seal D18x24x3
7. Double-connecting rod gudgeon pin L47
8. Double-connecting rod gudgeon pin 10.1x18x25
9. TCEI screw M10x82
10. T-bushing
11. Flanged self-locking nut M10
12. TE screw M10x47
13. Curved spring washer
14. Complete single connecting rod
15. TE screw M10x85
16. Flanged TE screw M10x95
