MOTO GUZZI GRISO - Arrangement of the Main Elements

GENERAL TECHNICAL INFORMATION
2 - 14
Griso V1100

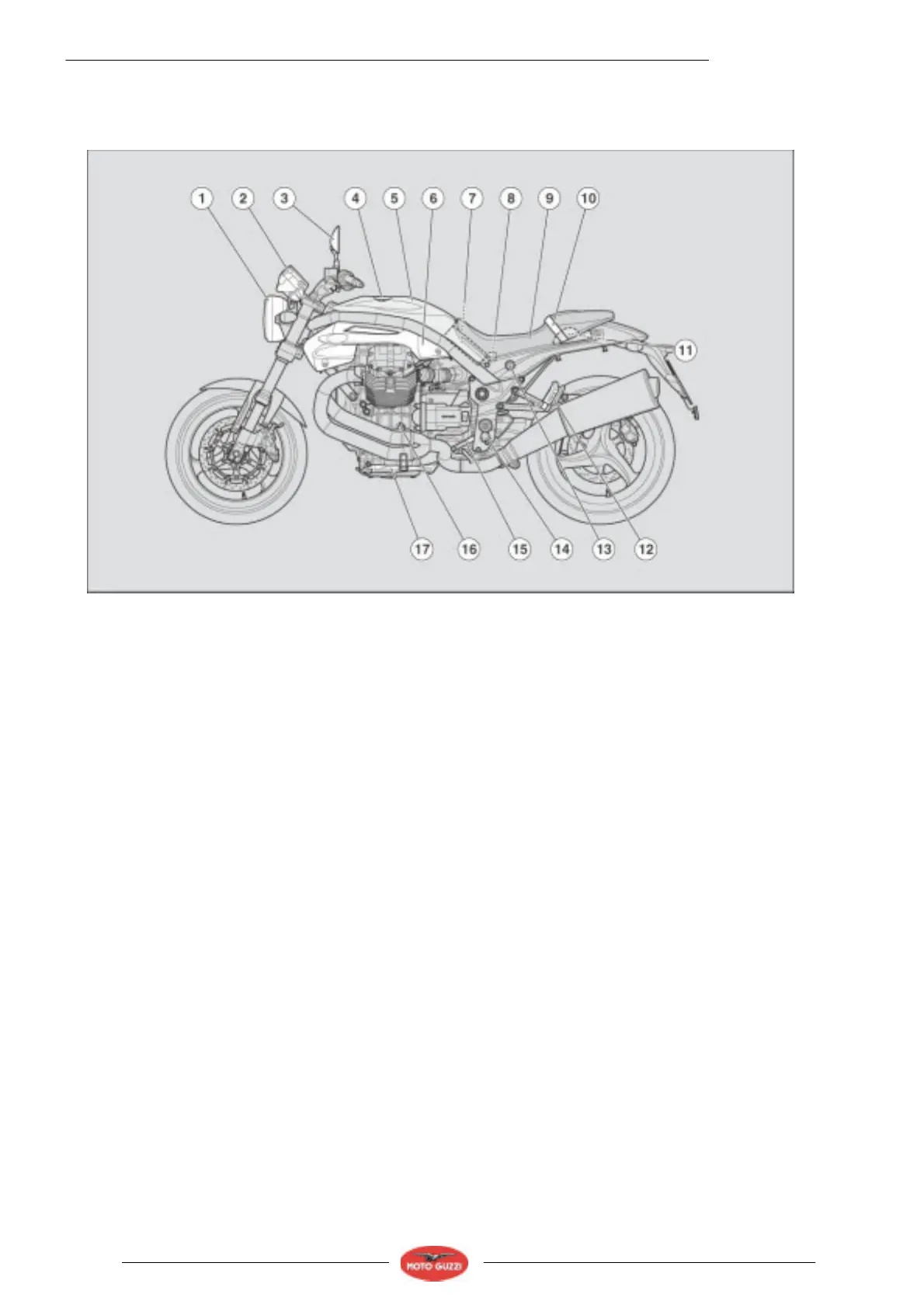

2.1.6 ARRANGEMENT OF THE MAIN ELEMENTS
LEFT SIDE
Key:
1. Headlight
2. Instrument panel
3. Left rear-view mirror
4. Fuel tank filler plug
5. Fuel tank
6. Left side body panel
7. Battery
8. Main fuse carrier (30A)
9. Rider/passenger seat
10. Passenger grab handle
11. Tool kit compartment
12. Passenger left footrest
13. Seat latch
14. Rider left footrest
15. Gearbox control lever
16. Engine oil level dipstick
17. Side stand
