FUEL SYSTEM
3 - 3
Griso V1100
3.1 FUEL SYSTEM

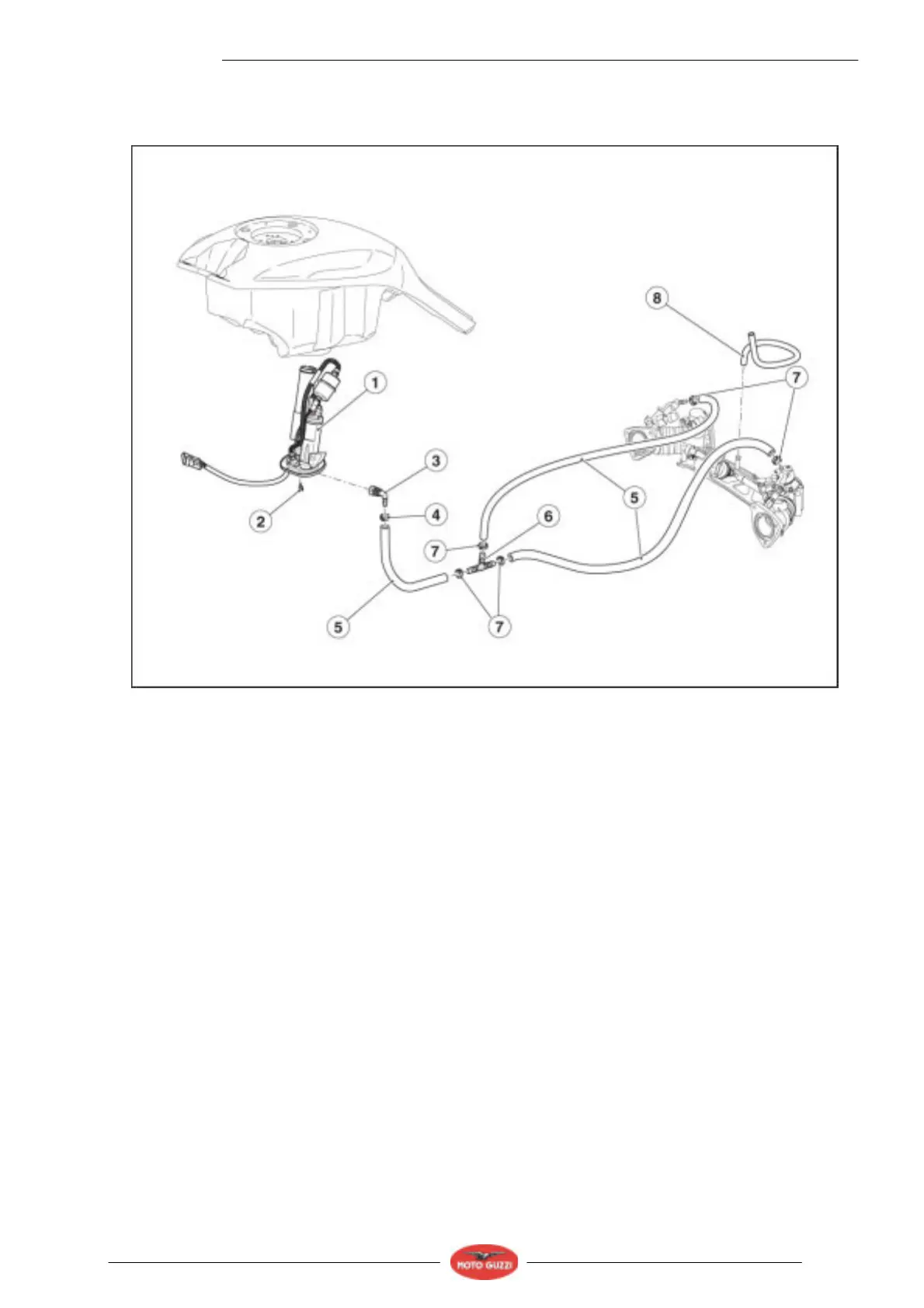

3.1.1 FUEL SUPPLY SYSTEM DIAGRAM
Key:
1. Complete fuel pump
2. Flanged screw M5x16
3. Fitting
4. Clamp
5. Fuel hose
6. Three-way union
7. Clamp 12.5x8
8. Hose
