MOTO GUZZI GRISO User Manual

TRANSMISSION
8 - 13
Griso V1100

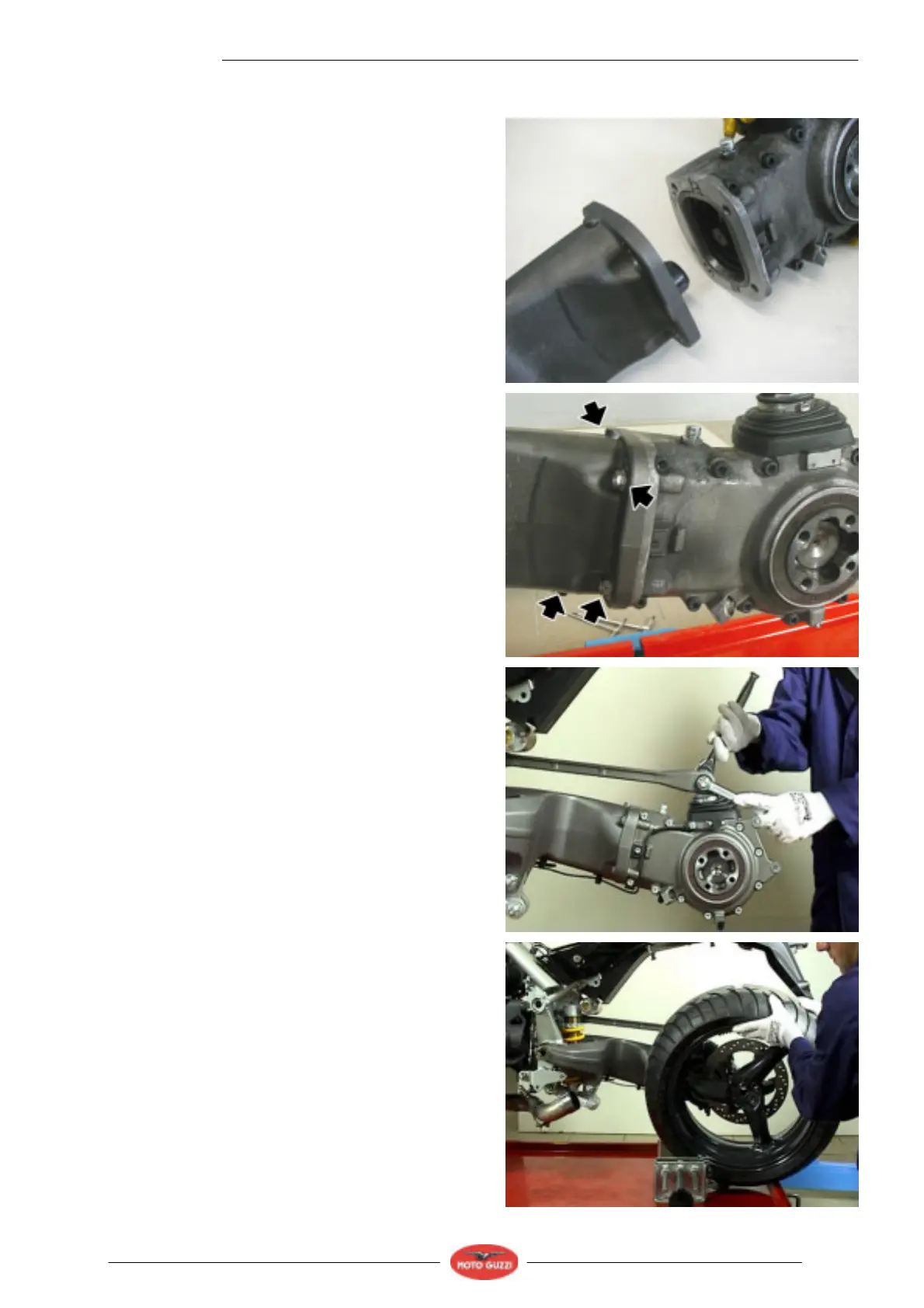

8.2.2 REASSEMBLY
NOTE Grease cardan joint grooves using the recommended
product, see (LUBRICANT TABLE).
• Fit the transmission box on the swingarm; ensure that
the cardan joint fits correctly.
• Tighten the four screws to the specified torque; follow a
cross pattern.
• Place the reinforcement bar in its seat.
• Insert the screw.
• Tighten the reinforcement bar nut.
• Fit the rear wheel on the swinging arm.
• Tighten the four screws together with the spacers.
• Fit the cover.
www.guzzitek.org + www.guzzitech.com - Revente Interdite - Revendita Vietata - Resaling Forbiden - Wiederverkauf Verboten

MOTO GUZZI GRISO Specifications

General

Cooling System	Air-cooled
Final Drive	Shaft drive
Seat Height	800 mm
Engine Type	90° V-twin
Fuel System	Electronic fuel injection
Front Suspension	43mm upside-down fork
Front Brakes	Dual 320mm discs, 4-piston calipers
Frame	Tubular steel
