MOTO GUZZI GRISO User Manual

TRANSMISSION
8 - 11
Griso V1100

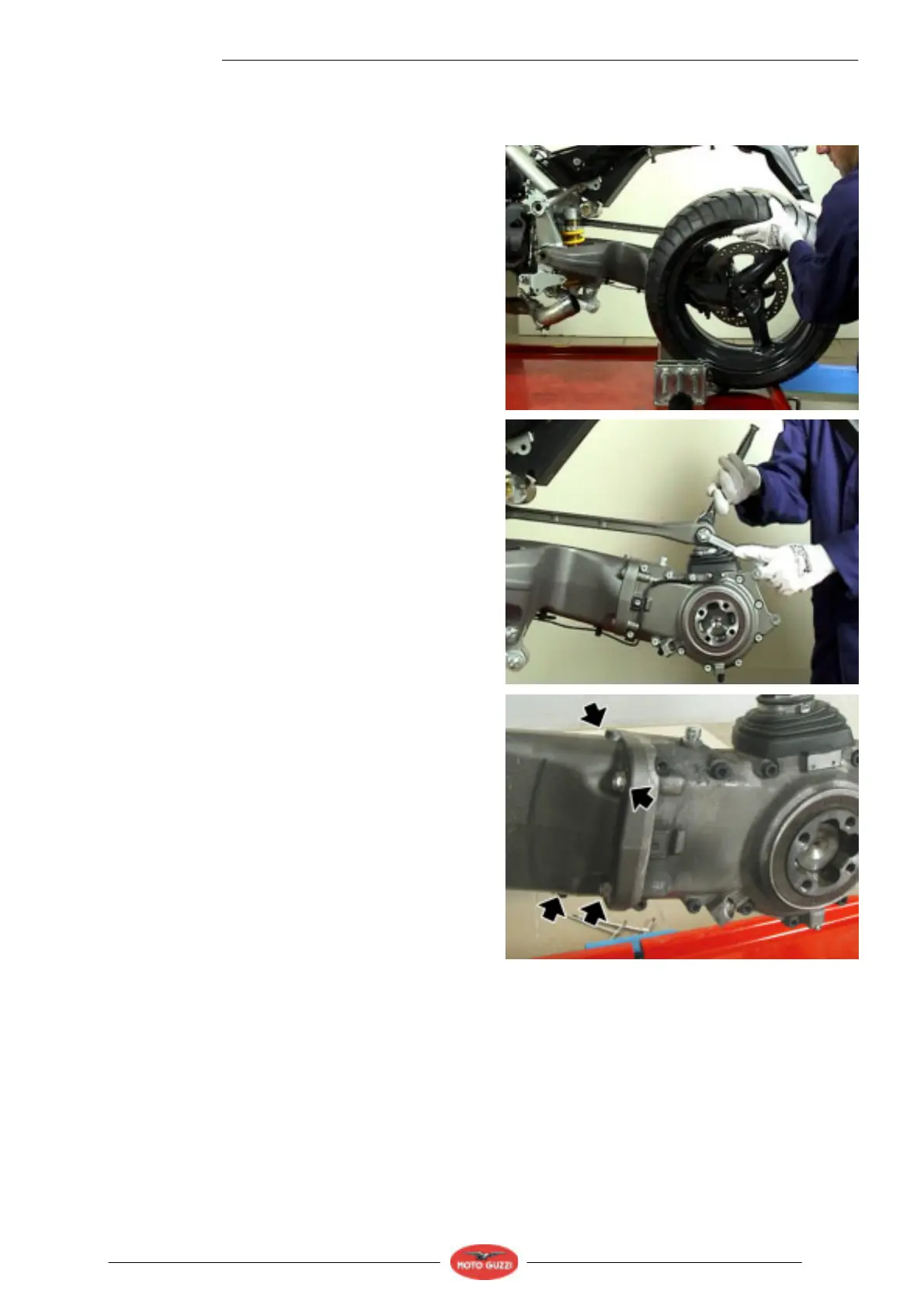

8.2 TRANSMISSION BOX
8.2.1 REMOVAL
• Before removing the transmission box, first remove the
exhaust silencer and the rear wheel.
• Loosen and remove the reinforcement bar nut.
• Remove the screw.
• Secure the reinforcement bar to the frame using a
clamp.
• Loosen and remove the four screws.
www.guzzitek.org + www.guzzitech.com - Revente Interdite - Revendita Vietata - Resaling Forbiden - Wiederverkauf Verboten

MOTO GUZZI GRISO Specifications

General

Cooling System	Air-cooled
Final Drive	Shaft drive
Seat Height	800 mm
Engine Type	90° V-twin
Fuel System	Electronic fuel injection
Front Suspension	43mm upside-down fork
Front Brakes	Dual 320mm discs, 4-piston calipers
Frame	Tubular steel
