MOTO GUZZI GRISO User Manual

TRANSMISSION
8 - 9
Griso V1100

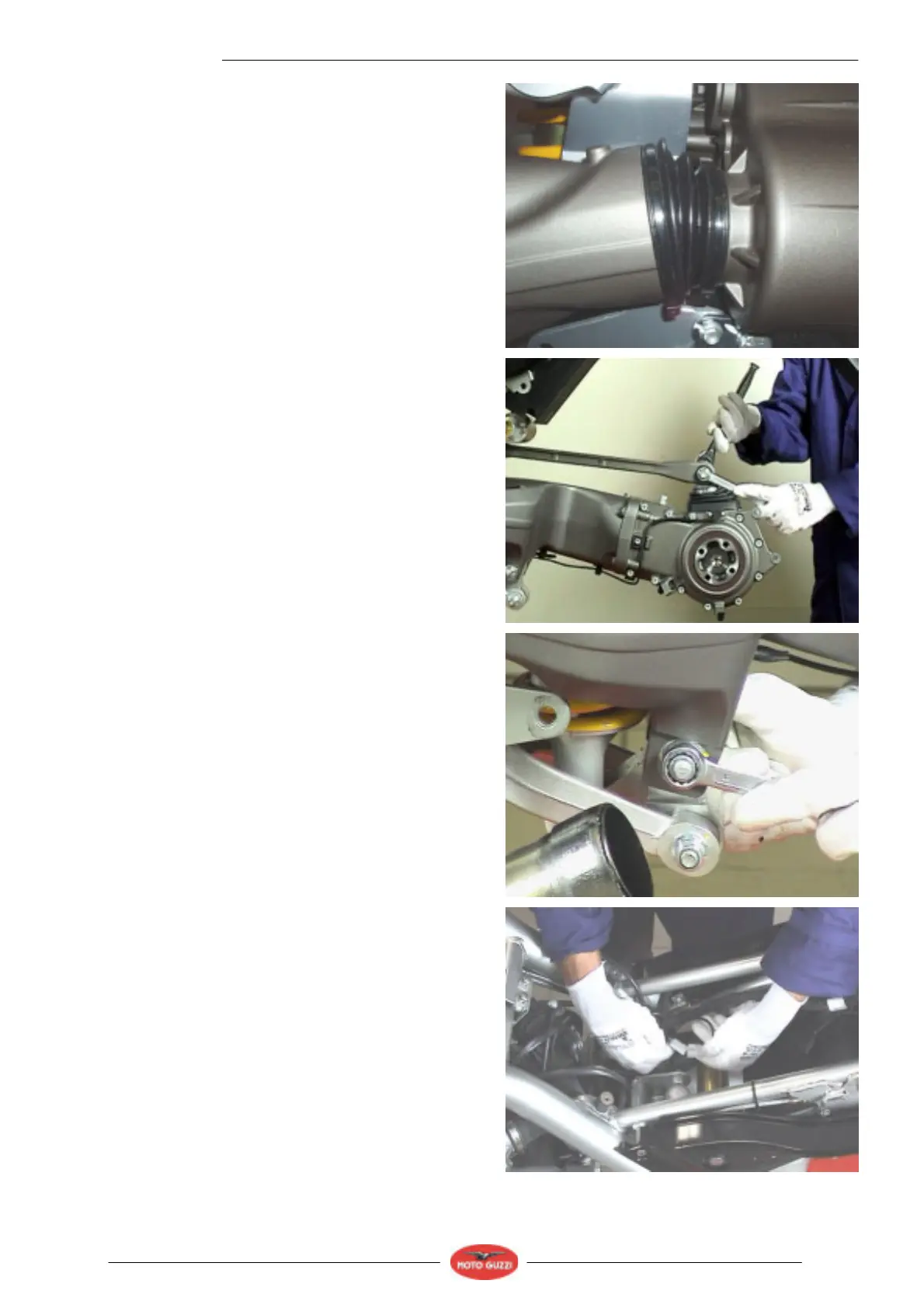

• Fit the dust cover onto the gearbox.
• Secure the dust cover using a new clamp.
• Fit the reinforcement bar in its seat.
• Fit the screw.
• Tighten the reinforcement bar nut.
• Fit the connecting rod to the swingarm.
• Fit the screw.
• Tighten the connecting rod nut.
• Connect the speed sensor connector and secure the
cable with ties.
www.guzzitek.org + www.guzzitech.com - Revente Interdite - Revendita Vietata - Resaling Forbiden - Wiederverkauf Verboten

MOTO GUZZI GRISO Specifications

General

Cooling System	Air-cooled
Final Drive	Shaft drive
Seat Height	800 mm
Engine Type	90° V-twin
Fuel System	Electronic fuel injection
Front Suspension	43mm upside-down fork
Front Brakes	Dual 320mm discs, 4-piston calipers
Frame	Tubular steel
