1615
OPERATION

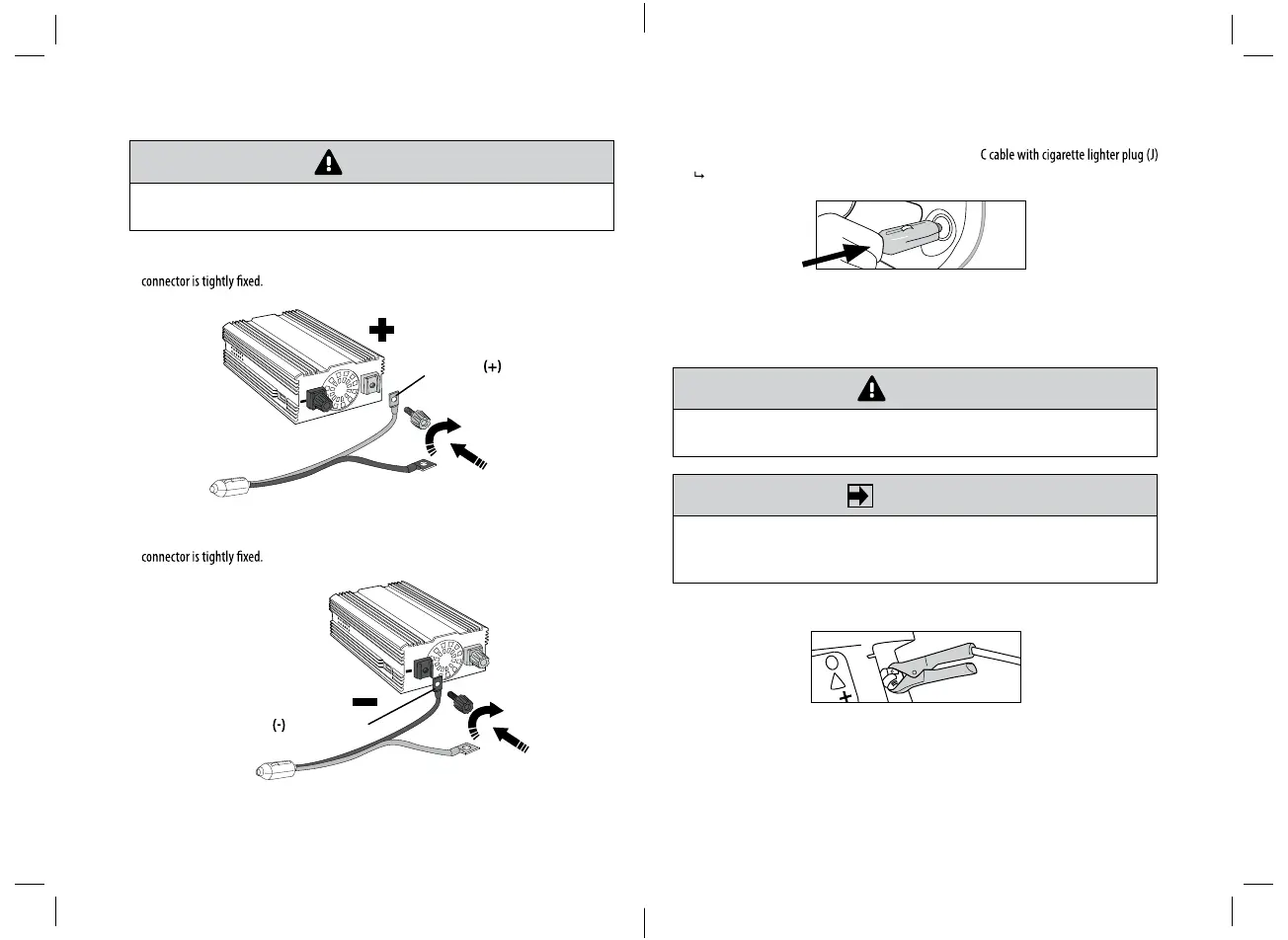

• Connect the cable with the DC cabling terminals (B / C).
CAUTION!
Make sure to connect the RED CABLE TO POSITIVE PORT (+) and the BLACK CABLE TO
NEGATIVE PORT (-).
• Place the red cable connector on the positive DC cabling terminal (+ / red). Make sure that the
respective holes are matching. Screw the red cap back on the cabling terminal until the cable
POSITIVE RED
CABLE CONNECTOR
• Place the black cable connector on the negative DC cabling terminal (- / black). Make sure that the
respective holes are matching. Screw the black cap back on the cabling terminal until the cable
NEGATIVE BLACK CABLE
CONNECTOR
OPERATION
Connecting the inverter to a lighter socket (loads under 100 W)
• Follow the instructions in the previous section. Choose the D
( Connecting the connector cables to the power inverter).
• Plug the cigarette lighter plug into the lighter socket of your vehicle. Make sure the plug is fully
inserted.
• The power inverter is now ready for use.
CAUTION!
Always disconnect the power cable from the cigarette lighter socket when you are not using the
device.
IMPORTANT!
The normal voltage drop that occurs when the vehicle's engine is started may trigger the
inverter's low-voltage shutdown feature. We recommend having the inverter disconnected from
the cigarette lighter plug while starting the engine.
Connecting the inverter to a 12 V vehicle battery (loads up to 240 W)
011-1870-6-Mobile-Power-Outlet_300W-EN-07.indd 15-16 12/13/12 7:22 PM
