Automated system for residential or industrial sliding gates with a maximum of 2000kgs.
It consists of a reversing electro-mechanical gearmotor, powered by a 230V control unit.
The automated system houses a programmable electronic control board that enables setting of
function logics, work time and pause time, anti-crushing sensitivity as well as partial-opening width.
The reversing system guarantees the gate will automatically lock when the motor is not operating.
A release system enables the gate to be moved by hand in case of malfunction or emergency.
The automated system was designed and built for controlling sliding gates. Do not use for any
other purpose.
1. Gate
2. Rack spacer
3. Protective cover
4. Foundation plate
5. Fixation screw
Fig. 01
Fig. 02
Fig. 03
6. Control box
7. Motor
8. Cover
9. Rack
10. Housing
11. Lock
12. Manual release
13. Capacitor
14. Screw
15. Limit switch plate

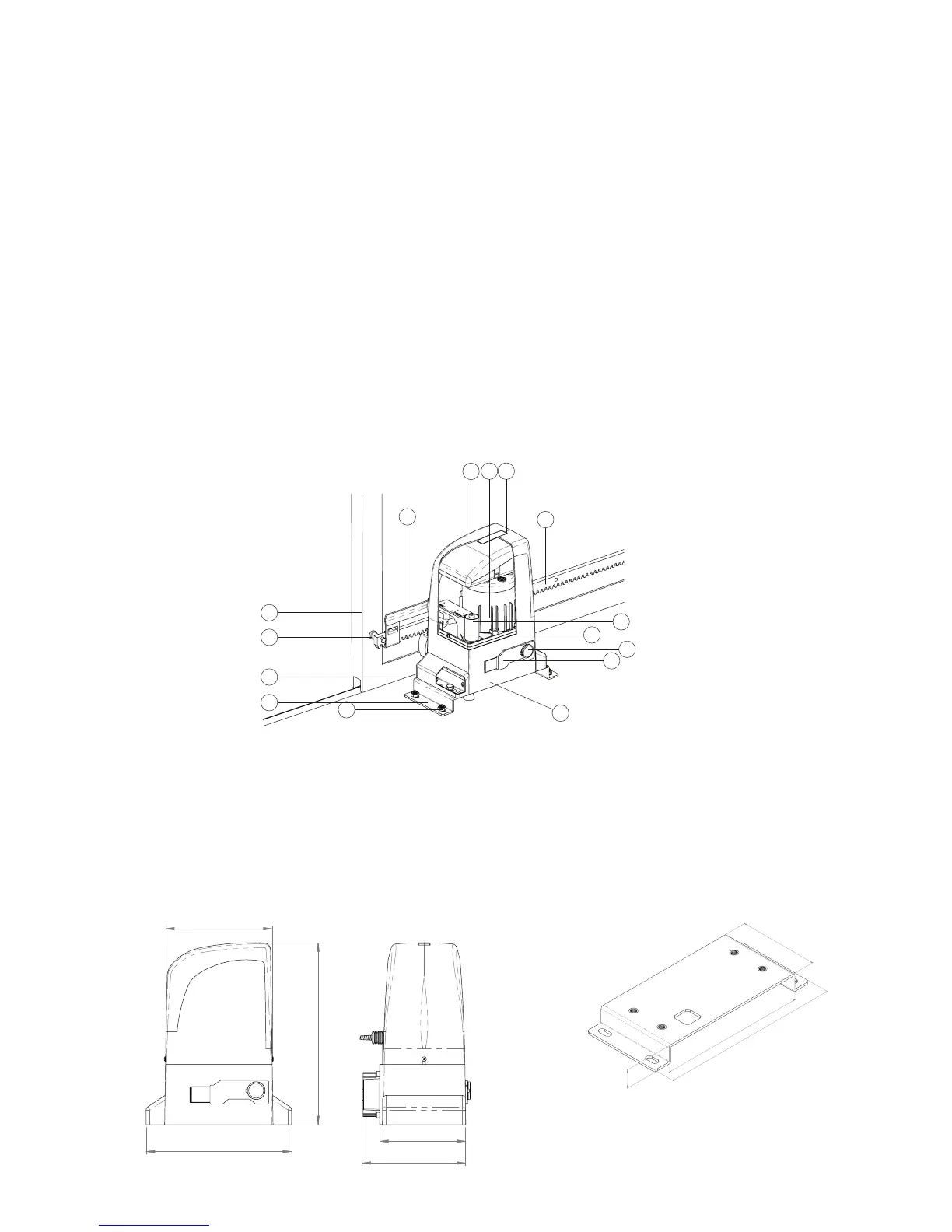

2) DESCRIPTION
2.1. Description of the structure
2.2. Dimensions (mm)
Pág. 02
342
276
165
36
6
15
7 8
9
14
11
12
5
4
3
2
1
10
13
201,5
274,7
344
162,5
210
