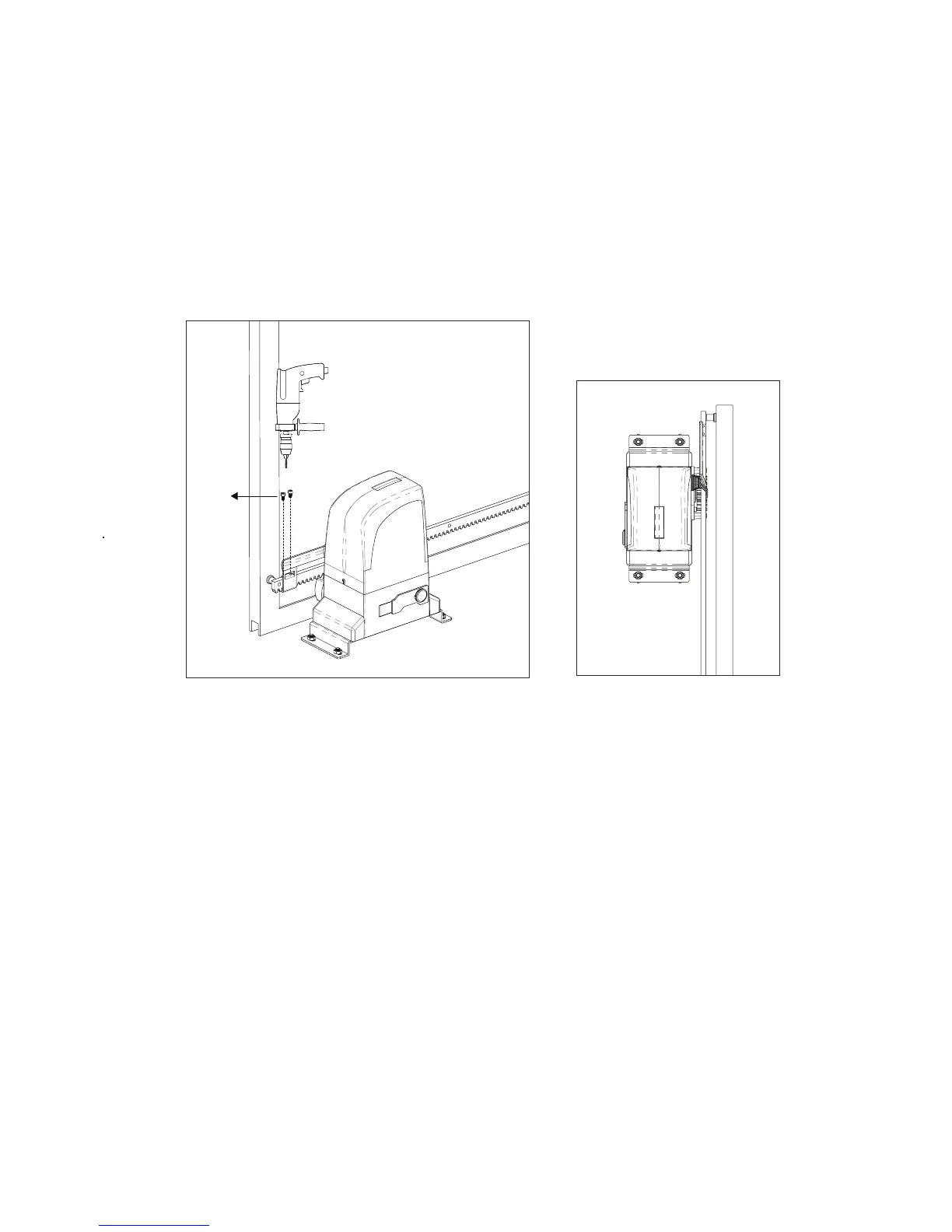

Fig. 23 Fig. 24
8) MAINTENANCE
a) After having rack nstalled, take the gate back to the closed position and position the limit swicth plate
on the rack. In this closed position, the plate should trigger the limit switch of the motor.
b) Tighten the screws DIN912 M5x12 included in the pack, until it touches the rack, squeezing it.
c) Move the gate to the open position and repeat the same process for the other limit switch plate.
Carry out the following operations at least every 6 months.
- Check the eciency of the release system.
- Check the eciency of the safety devices and accessories.
9) REPAIRS
For any repairs, pls contact the authorised repair centers.
7.9. Installing limit switch plate
Pág. 10
DIN912
M5x10
