7.1. Preliminary checks
To ensure safety and an eciently operating automated system, make sure the following conditions are
applied:
- The structure of the gate must be suitable for being automated. In particular, check that the structure
is suciently strong and rigid, and that its dimensions and weight conform to those indicated in the
technical specications;
- Make sure that the gate slides without any inclination;
- Make sure that the gate moves uniformly and correctly, without any irregular friction during its entire
travel;
- The soil must permit sucient stability for the expansion plugs securing the foundation plate;
- Remove any locks and lock bolts. We advise you to have any metalwork carried out before the
automated system is installed.
7.2. Preparing the foundation plate

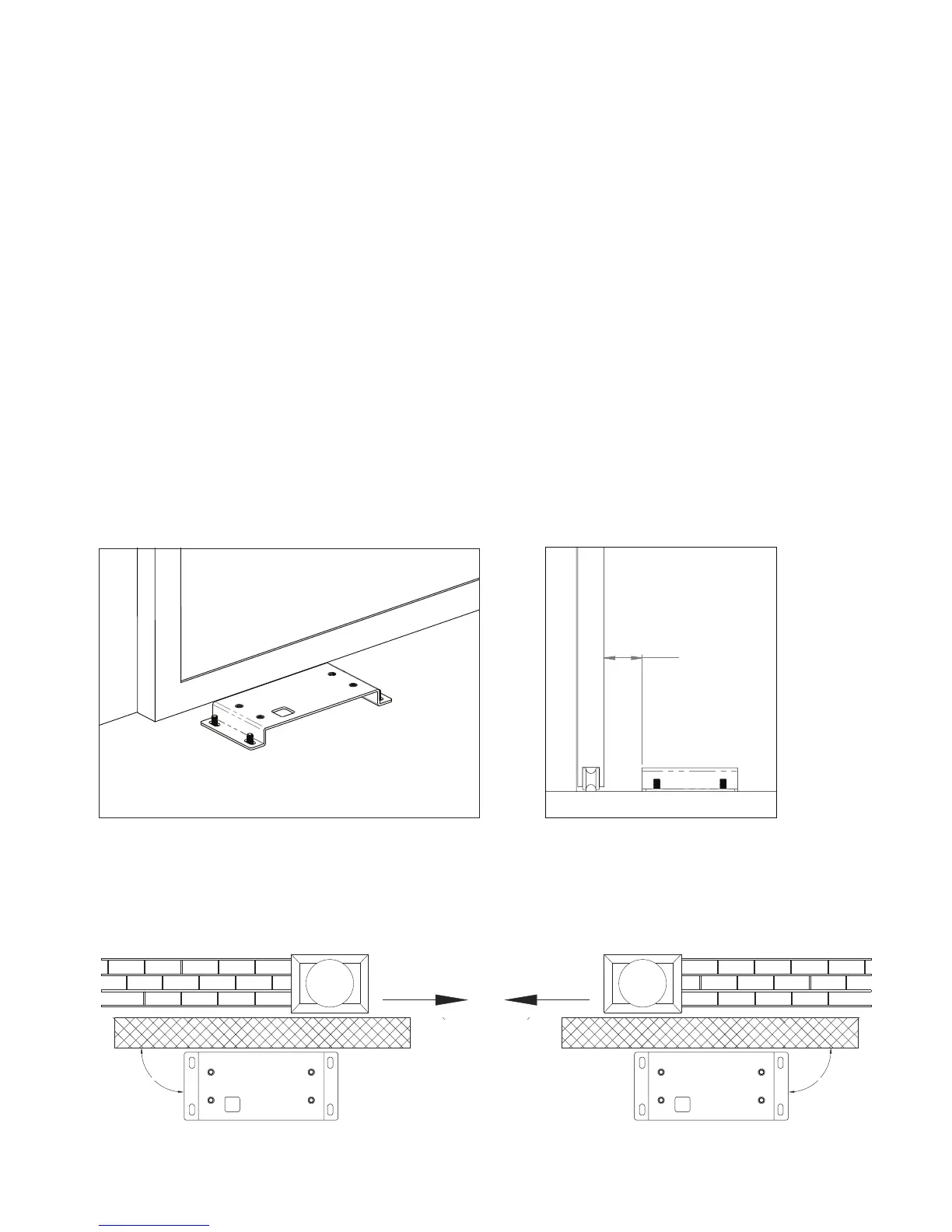

Fit the 4 supplied nuts, as shown in Fig. 07 and Fig. 08, in the 4 holes of the plate.
7.3. Preparing the foundation plate
90º
7) INSTALATION
Pág. 05
90º
59mm
Fig. 09a Fig. 09b
a) The foundation plate must be located as shown in Fig. 9a (right closing) or Fig. 9b (left closing) to
ensure the rack and pinion match correctly.
