7-24 Disassembly/Reassembly Procedures: Radio Reassembly
3. Torque all seven Chassis Screws (15) with a Torx IP6 Bit and a Torque Driver to 3.7 in-lbf in
the sequence as shown in Figure 7-32.

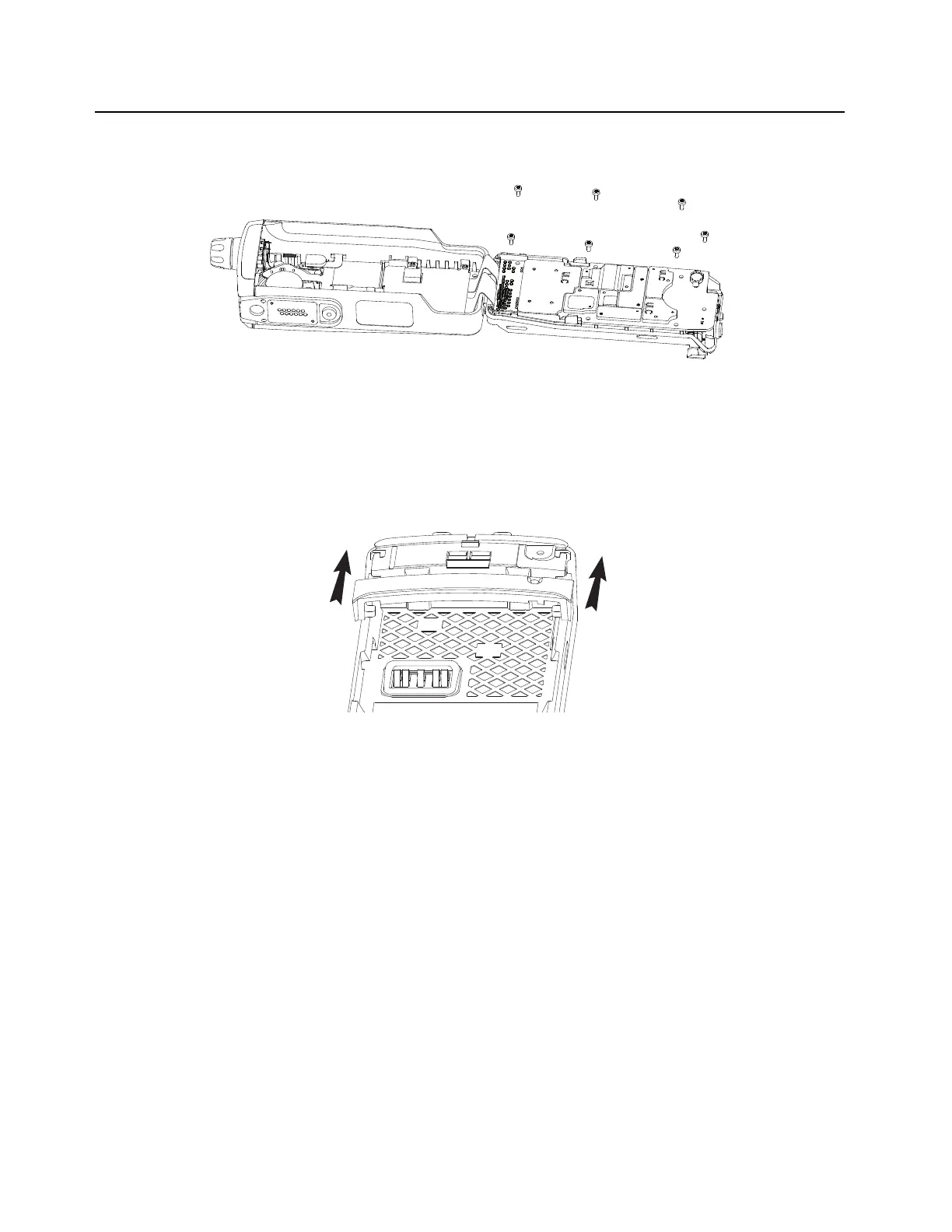

Figure 7-32. Torque in the Keypad Retainer Screws
7.6.5 Reassemble the Shroud (32)
1. Slide the Shroud (32) into the Chassis’ frame until the latch clicks into place as shown in
Figure 7-33.
Figure 7-33. Assemble the Shroud
3
5
6
1
2
7
4
