Disassembly/Reassembly Procedures: Radio Disassembly 7-9
7.4.5.2 Removal of the Secondary Shield Assembly (31)
1. Remove the chassis screws (29) as shown in Figure 7-9.

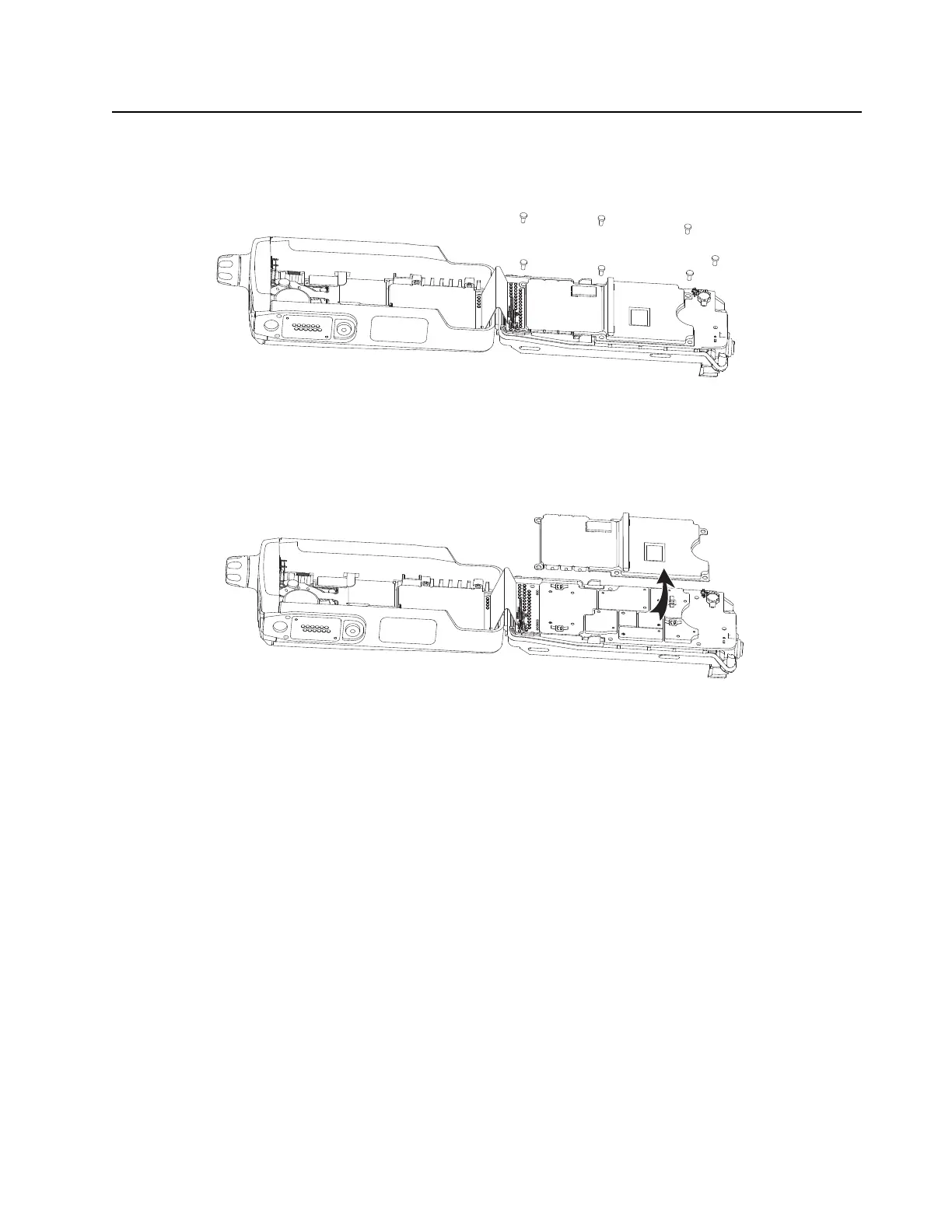

Figure 7-9. Remove the chassis screws
2. With the chassis screws removed, lift the Secondary Shield Assembly (31) out from the
Chassis (40) as shown in Figure 7-10.
Figure 7-10. Remove the Secondary Shield Assembly
