6.3 ASTRO Digital Spectra Plus VOCON Board Waveforms
This section contains images of waveforms specific to the ASTRO Digital Spectra Plus VOCON
board. These waveforms might be useful in verifying operation of certain parts of the circuitry. These
waveforms are for reference only; the actual data depicted will vary depending upon the operating
conditions.
32 kHz Clock Waveform

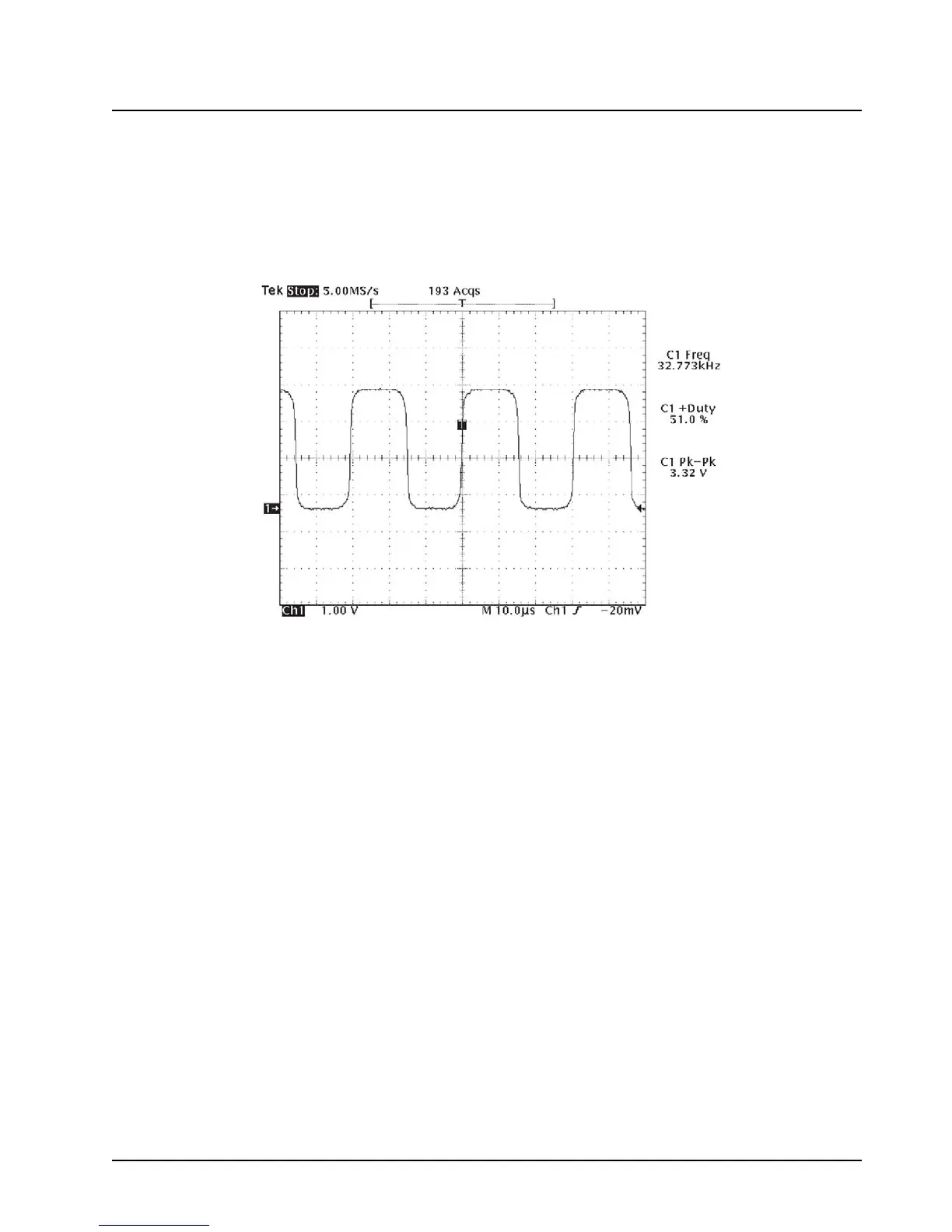

Trace 1 — R428 — 32 kHz Clock
