Motorola ASTRO Digital Spectra Service Manual

Schematics, Component Location Diagrams and Parts Lists: VOCON Section 7-41
6881076C25-D October 28, 2002

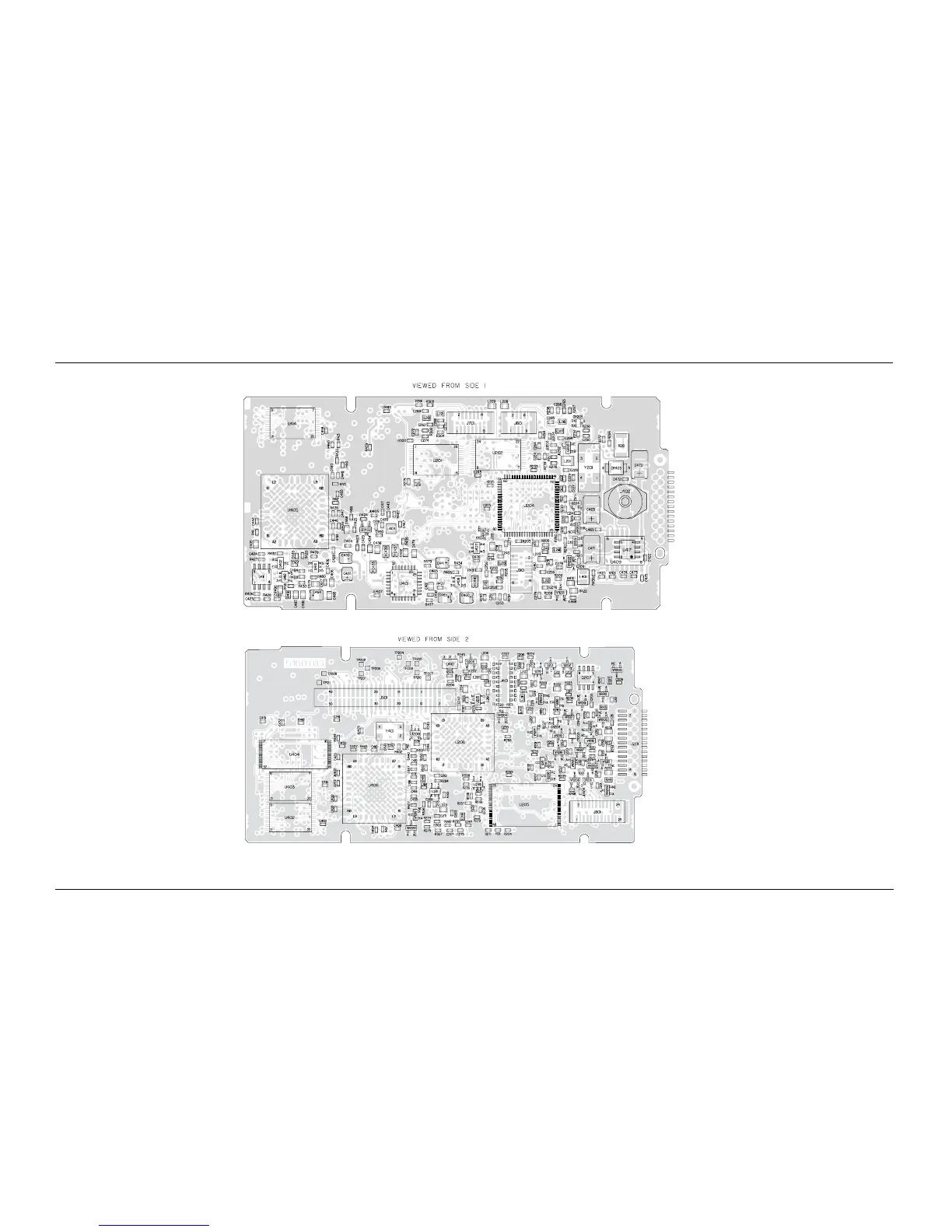

HLN6458F/G VOCON Board Component Location Diagrams (Sheet 2 of 2)
MAEPF-27096-O
HLN6458F/G
CHECK
ONE
O.K. AS IS
O.K. AS MARKED
( )
( )
ISS.
REVISION
RLSE.
CORRECTED
AS
MARKED
ILLUSTRATOR DATEENGINEERDATE PROGRAM DISK
MEDIA & COMMUNICATIONS DEPT.
RLSE.
DWG. NO.
EDITOR DATECHECKERDATE
Illustrator
Astro Saber Vocon
PCB - 8405160Y03
MAEPF-27096
JP 6/30/99
O
BW
MAEPF-27095-O
