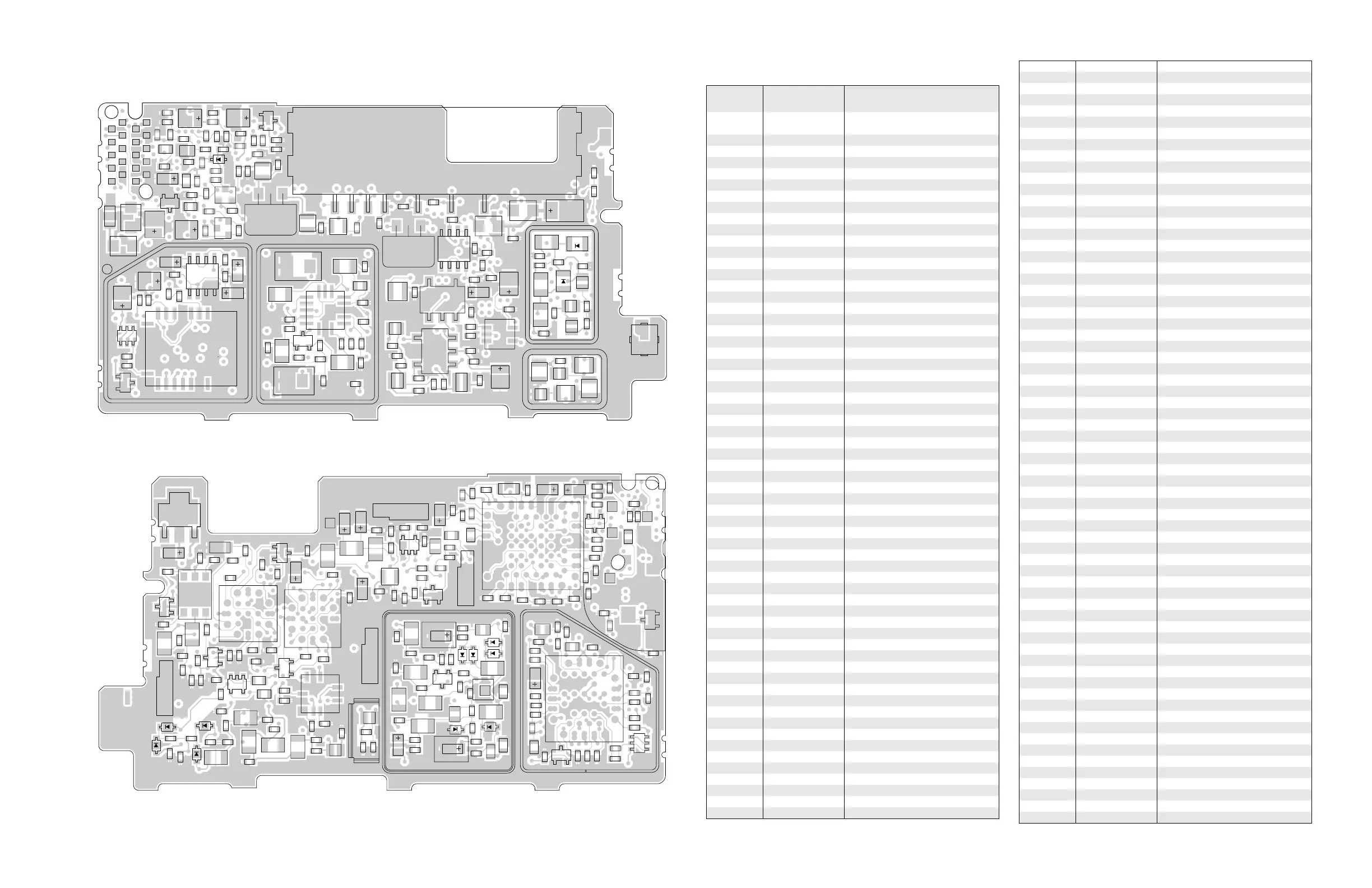

NLE4250B UHF Range 2 RF Board Component Location Detail and Parts List
MAEPF-26065-O
C1
C5
C611
C6
C7
C11
C13
C72
C83
C85
C89
C90
C98
C91
C92
C101
C102
C103
C104
C108
C117
C123
C125
C126
C138
C140
C141
C147
C148
C149
C150
C151
C152
C202
C203
C208
C209
C210
C219
C220
C221
C222
C233
C253
C254
C255
C258
C260
C271
C274
C279
C304
C310
C313
C402
C409
C414
C416
C419
C420
C422
C423
C424
C426
C428
C430
C431
C432
C433
C442
C450
C500
C501
C502
C511
C513 C514
C515
C604
C605
C606 C702
CR5
CR108
CR109
CR204
CR206
E2
E101
E104
F1
E1
1
4
32
FL1
1
4
3
2
FL2
1
1
2
2
3
3
FL401
1
1
1
2
3
3
46
2
3
FL402
1
1
2
3
6
11
16
5
10
15
20
J1
43
1
2
J2
L12
L13
L14
L25
L30
L31
L32
L34
L35
L37
L108
L121
L122
L126
L127
L128
L204
L210
L211
L215
L216
L220
L221
L402
L601
L602
L603
L605
Q203
R7
R27
R36
R110
R112
R113
R206
R210
R217
R219
R220
R222
R223
R301
R302
R403
R405
R406
R407
R410
R411
R412
R413
R414
R416
R417
R418
R420
R510
R603
S201
S203
S205
S207
2
1
5
4
3
T1
21
5
4
3
T2
TH1
810
4
1
35
7
U1
1
234567
U105
VIEWED FROM SIDE 1
85
4
1
U106
1
1
3
3
2
15
14
12
11
7
64
U201
8
5
4
1
U202
21
4
5
13
14
20
29
30
1
U203
VR1
VR402
MAEPF-26066-O
C2
C3
C4
C9
C10
C15
C18
C19
C31
C82
C84
C86
C87
C88
C93
C94 C99
C105
C106
C107
C109
C110
C111
C112
C113
C115
C116
C119
C120
C121
C127
C132
C133
C135
C137
C145
C146
C153
C201
C204
C205
C206
C207
C211
C214
C216
C217
C223
C225
C226
C227
C228
C230
C231
C235
C236
C237
C238
C239
C240
C243
C244
C245
C246
C247
C250
C256
C257
C266
C267
C270
C275
C280
C282
C284
C289
C290
C292
C294
C303
C314
R610
C315
C507
C401
C403
C404
C405
C406
C407
C408
C410
C413
C415
C417
C418
C421
C425
C427
C429
C434
C438
C503
C504
C505
C506
C308
C309
C512
C601
C602
C609
C610
C614
CR6
CR7
CR8
CR9
CR101
CR103
CR201
CR202
CR203
CR205
CR207
CR208
CR209
3
2
1
J3
L6
L7
L8
L9
L10
L11
L15
L102
L103
L105
L107
L123
L201
L202
L205
L207
L208
L209
L212
L213
L218
L219
L223
L224
L302
L401
L600
Q1
Q101
Q107
Q108
Q110
VIEWED FROM SIDE 2
Q111
Q201
Q202
Q601
R22
R23
R26
L101
R101
R102
R106
R107
R111
R114
R115
R116
R118
R125
R126
R127
R128
R129
R130
R131
R203
R204
R205
R207
R208
R209
R211
R212
R213
R214
R215
R218
R221
C317
R401
R402
R404
R419
R421
R601
R602
R604
R605
RT101
S202
S204
S206
TP5
TP7
TP8
TP10
TP11
TP12
2
1410
7
1
1
1
1
1
1
1
2
2
2
2
2
2
3
3
3
3
3
34
6
345
6
U002
G2
G3
G1
D5
E2 B1
D1
A4 A2
E4 E2
U101
G4
D5
E2
B1
D1
A4
A2
E4
E2
U102
U104
8
10
14
1719
22
11
15
13
9
5
6
4
3
4240
41
2
43
44
31
21
2023
24
33
27
37
38
26
32
35
29
30
34
39
1
18
16
25
36
28
7
12
U204
30
28
26
24
22
21
18
23
25
54
55
56
57
61
60
59 63
64
65
62
16 14
17 15 13
12
27
29
31
53 58
34 36
35
37 39
41 43
38 40
66
67
68
69
70
10
11
9
8
75
74
73
72
71
42 44
47
49
51
1
1
1
1
1
1
3
3
3
3
45
3
3
5
48
50
52
2
2
2
2
2
2
4
46
4533
32
20
19
7
6
U401
VR3
123
4
123
456
78
9
10
NLE4250B UHF Range 2 RF Board
Electrical Parts List
ITEM
MOTOROLA
PART NUMBER
DESCRIPTION
CAPACITOR, Fixed: unless otherwise
stated
C1 2113930F15 3.3 pF
C2, 3 2113930F12 2.4 pF
C4 2113930F36 24 pF
C5, 6 2113930F20 5.1 pF
C7 2113930F28 11 pF
C9 2113930F15 3.3 pF
C10 2113930F29 12 pF
C11 2113931F49 10 nF
C13 2311049A66 22 uF
C15 2113930F47 68 pF
C18 2113930F18 Not Placed
C19 2113930F19 4.7 pF
C31 2113931F49 10 nF
C72 2113930F51 100 pF
C82 2113931F49 10 nF
C83 2113930F51 100 pF
C84 2113931F49 10 nF
C85 2311049J23 10 uF
C86 2113930F47 68 pF
C87 2113930F51 100 pF
C88 2113930F45 56 pF
C89 2113930F19 4.7 pF
C90 2113930F26 9.1 pF
C91 2113930F28 11 pF
C92 2113930F09 1.8 pF
C93 2113930F17 3.9 pF
C94 2113930F27 10 pF
C98 2113930F51 100 pF
C99 2113930F21 5.6 pF
C101 2113930F51 100 pF
C102 2113930F51 Not Placed
C103 2311049J26 10 uF
C104, 105 2113930F51 100 pF
C106 2311049A56 4.7 uF
C107 2113930F51 100 pF
C108 2113930F51 Not Placed
C109 2311049A07 1 uF
C110 2113930F51 Not Placed
C111 2113930F51 100 pF
C112 2311049A07 1 uF
C113 2113930F51 100 pF
C115 2113932K07 .047 uF
C116 2113930F07 Not Placed
C117 2113930F51 100 pF
C119 2113930F51 100 pF
C120 2311049A42 Not Placed
C121 2113930F51 100 pF
C123 2113932K15 0.1 uF
C125, 126 2311049A54 3.3 uF
C127 2311049A54 Not Placed
C132 2113930F25 8.2 pF
C133 2113930F09 1.8 pF
C135 2113930F51 100 pF
C137, 138 2113930F51 100 pF
C140 2113931F41 CAP
C141 2113930F51 100 pF
C145 2113930F51 100 pF
C146 2113930F39 Not Placed
C147 2113930F51 100 pF
C148 2113930F11 2.2 pF
C149 2113930F27 10 pF
C150 2113930F25 8.2 pF
C151 2113930F18 4.3 pF
C152 2113932K15 0.1 uF
C153 2113930F47 68 pF
C201 2113930F41 Not Placed
C202 2113930F12 Not Placed
C203 2113930F07 1.5 pF
C204 2113930F51 100 pF
C205 2113930F19 Not Placed
C206 2113931F29 1.5 nF
C207 2113931F49 10 nF
C208 2113930F51 100 pF
C209 2113931F49 10 nF
C210 2113932E07 .022 uF
C211 2113930F51 100 pF
C214 2113930F14 3.0 pF
C216, 217 2113930F51 100 pF
C219 2113930F11 2.2 pF
C220 2113930F22 6.2 pF
C221 2113931F49 10 nF
C222 2113930F18 4.3 pF
C223 2113906C02 4 pF
C225 2113930F03 1 pF
C226 2113930F26 9.1 pF
C227, 228 2113930F51 100 pF
C230 2113930F09 Not Placed
C231 2311049A60 10 uF
C233 2113930F51 100 pF
C235 2113930F20 5.1 pF
C236 2113930F18 4.3 pF
C237 2113930F15 3.3 pF
C238 2113930F51 100 pF
C239 2113930F24 7.5 pF
C240 2113906C02 4 pF
C243 2113930F24 7.5 pF
C244 2109720D09 .022 uF
C245 2113931F25 1 nF
C246 2109720D09 .022 uF
C247 2311049A05 .47 uF
C250 2113931F25 1 nF
C253 2311049J23 10 uF
C254 2311049A56 4.7 uF
C255 2113932E07 .022 uF
C256, 257 2113931F49 10 nF
C258 2311049J11 4.7 uF
C260 2113932K07 .047 uF
C266, 267 2113931F49 10 nF
C270 2113932E07 .022 uF
C271 2311049A56 4.7 uF
C274 2113931F49 10 nF
C275 2113932K15 0.1 uF
C279, 280 2113932K15 0.1 uF
C282 2113932K15 0.1 uF
C284 2113743A23 .22 uF
C289, 290 2113930F51 100 pF
C292 2113930F51 100 pF
C294 2113930F51 100 pF
C299 2113931F41 4.7 nF
C303 2113932E07 .022 uF
C304 2311049J11 4.7 uF
C308 2113932E07 .022 uF
C309 2113932E07 .022 uF
C310 2311049J11 4.7 uF
C313 2113930F51 Not Placed
C314, 315 2113930F51 100 pF
C317 2113930F51 100 pF
C401 2113932K03 .033 uF
C402 2113930F39 33 pF
