13-95

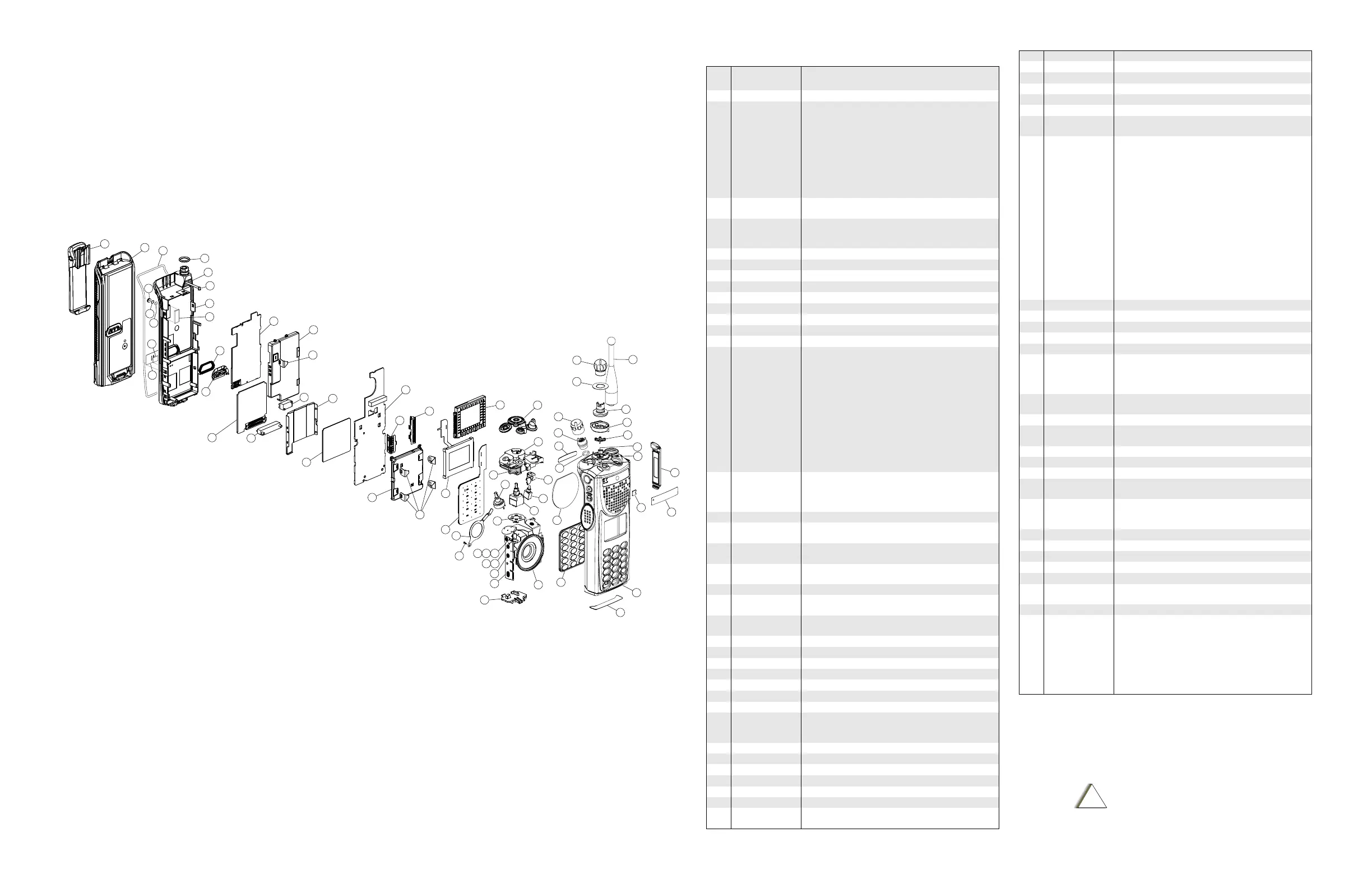

Models II and III Exploded View and Parts List
16
15
14
13
12
11
20
19
18
17
26
23
22
25
21
24
30
28
27
36
34
33
32
31
40
38
37
46
45
44
43
42
41
40
50
49
48
47
55
54
62
63
64
61
56
53
52
51
60
59
58
57
6
5
4
3
2
1
10
9
8
7
35
39
MBEPF-26014-A
29
65
66
68
67
Models II and III Exploded View Parts List
Notes: 1. The 1585507D07 and 1585507D09 ruggedized housing
assemblies are not interchangeable with the 1585506D04
standard housing assembly. The 1585507D06 and 1585507D08
ruggedized housing assemblies are not interchangeable with
the 1585506D03 standard housing assembly.
2. The NCN6167_ Controller Board is not interchangeable with
the NCN6128_ Controller Board.
Depending on the ruggedized casting (54)
configuration (two or four hole vent port), use
the appropriate vent port seal (65) as indicated
in this parts list.
ITEM
MOTOROLA
PART NUMBER
DESCRIPTION
1 3305630Z01 LABEL, Motorola Bottom
2 1585506D03
or 1585507D06
or 1585507D08
or 1585506D04
or 1585507D07
or 1585507D09
ASSEMBLY, Model III Housing (See Note 1)
ASSEMBLY, Model III Housing (R Model)
(See Note 1)
ASSEMBLY, Model III Housing (Yellow R Model)
(See Note 1)
ASSEMBLY, Model II Housing (See Note 1)
ASSEMBLY, Model II Housing (R Model)
(See Note 1)
ASSEMBLY, Model II Housing (Yellow R Model)
(See Note 1)
3 3505586Z02
or 3585626B01
GRILLCLOTH, Microphone Front
MESH, Microphone Front (R Models)
4 3385619B01
or 3385619B02
or 3385619B03
LABEL, Motorola Front
LABEL, Motorola Front (R Models)
LABEL, Motorola Front (Yellow R Models)
5 1505579Z01 COVER, Accessory Connector
6 3605371Z01 KNOB, Volume
7 4305372Z01 INSERT, Volume Knob Retainer
8 3205379W01 O-RING, Volume Torque
9 6105376Z01 LIGHTPIPE, Indicator
10 4505375Z01 LEVER, Secure
11 4305373Z02 INSERT, Frequency Knob Retainer
12 1305374Z03 ESCUTCHEON, Frequency Dial
13 3605370Z01 KNOB, Frequency
14 NAD6563_
or NAD6566_
or NAD6567_
or NAD6568_
or NAE6546_
or NAE6547_
or NAE6548_
or NAE6549_
or NAF5037_
or NAF5039_
or NAF5042_
ANTENNA, VHF Wideband Helical (136-174MHz)
ANTENNA, VHF Helical (136-151MHz)
ANTENNA, VHF Helical (151-162MHz)
ANTENNA, VHF Helical (162-174MHz)
ANTENNA, UHF Helical (403-435MHz)
ANTENNA, UHF Helical (435-470MHz)
ANTENNA, UHF Helical (470-512MHz)
ANTENNA, UHF Wideband Whip
(403-520MHz)
ANTENNA, 800MHz Whip (806-870MHz)
ANTENNA, 800MHz Dipole (806-870MHz)
ANTENNA, 800MHz Stubby Quarterwave
(806-870MHz)
15 7505293Z01
or 7505293Z02
or 7585696A01
or 7585696A02
KEYPAD, Model III
KEYPAD, Model III (R Models)
KEYPAD, Model II
KEYPAD, Model II (R Models)
16 3505340Z02 MESH, Speaker
17 3305574Z01
or 3305574Z02
LABEL, Motorola Back
LABEL, Motorola Back (Yellow R Models)
18 0105956V33 ASSEMBLY, Controls Universal Flex (includes
items 19 thru 22, 24 thru 28, and 30 thru 32)
19 5085962A03
or 5085962A05
SPEAKER (part of item 18)
SPEAKER (part of item 18) (R Models)
20 3905667Z02 POPPLES, PTT and Side Button (part of item 18)
21 - - - - - - - - - - MICROPHONE, Electret (part of item 18)
(Not Field Replaceable)
22 - - - - - - - - - - CAPACITOR, 56pF (part of item 18)
(Not Field Replaceable)
23 0300140332 SCREW, Tapping - 28 x 3/16
24 0660076A93 RESISTOR, 68kΩ (part of item 18)
25 0660076A96 RESISTOR, 91kΩ (part of item 18)
26 0660076B05 RESISTOR, 150kΩ (part of item 18)
27 4805729G63 LED, Green/Red (5 req’d) (part of item 18)
28 1805629V04 POTENTIOMETER, Volume (part of item 18)
29 7505748Z01 PAD, Microphone Boot (non-R models)
30 1405332Z01
or 1486164A01
BOOT, Microphone Boot (part of item 18)
BOOT, Microphone Boot (part of item 18)
(R Models)
31 4005572W04 SWITCH, Toggle, 3 Pos. A/B/C (part of item 18)
32 4002622J04 SWITCH, Frequency (part of item 18)
33 0705357Z01 BRACKET, Controls Bottom
34 0705352Z02 BRACKET, Controls
35 3205354Z04 SEAL, Controls
36 4205338Z02 RETAINER, Speaker
37 NTN8311_
or NTN8493_
KIT, Keypad Flex Assembly, Model III
KIT, Keypad Flex Assembly, Model II
38 5105385Y19 MODULE, LCD
39 7505336Z01 PAD, Display Locator
40 4205631Z01 CLIP, Control Locking
41 2605342Z01 SHIELD, Controller Front
42 0705330Z01 BRACKET, Flex Attach Display
43 0705368Z01 BRACKET, Flex Attach Keypad
44 NCN6128_
or NCN6167_
KIT, Controller Board (See Note 2)
KIT, Controller Board (See Note 2)
45 NTN8253B
or NTN8254B
or NTN8255A
or NTN8256B
or NTN8257B
or NTN8258A
or NTN8259A
or NTN8260B
or NTN8261B
or NTN8326A
or NTN8328A
or NTN8329A
or NTN8330A
or NTN8331A
or NTN8418A
or PLN7748A
or PLN7750A
KIT, DES Encryption Board
KIT, DES-XL Encryption Board
KIT, DES-OFB Encryption Board
KIT, DVI-XL Encryption Board
KIT, DVP-XL Encryption Board
KIT, DES-OFB and DES-XL Encryption Board
KIT, DES-OFB and DVP-XL Encryption Board
KIT, DES-XL and DVP-XL Encryption Board
KIT, DVP-XL and DVI-XL Encryption Board
KIT, DES-OFB and DVI-XL Encryption Board
KIT, DVP Encryption Board
KIT, DVI-XL and DVP Encryption Board
KIT, DVP and DES-XL Encryption Board
KIT, DVP and DVP-XL Encryption Board
KIT, DES-OFB and DES Encryption Board
DVI-XL Variant Tag8
Variant Tag6
46 2605344Z01 SHIELD, Vocoder with Insulators
47 2805216Z03 CONNECTOR, Compression, 20-Pin
48 2805214Z03 CONNECTOR, Compression, 50-Pin
49 2605343Z07 SHIELD, 800MHz with Insulator
50 NTN8250_ KIT, Vocoder Board
51 NUF6472_
or NLE4249_
or NLE4250_
or NLD8898_
KIT, 800MHz RF Board
KIT, UHF Range 1 RF Board
KIT, UHF Range 2 RF Board
KIT, VHF RF Board
52 0905585Z02
or 0905585Z03
ASSEMBLY, B+
ASSEMBLY, B+ (R Models)
53 3205351Z02 SEAL, B+
54 1505348Z01
or 1505348Z10
ASSEMBLY, Casting
ASSEMBLY, Casting (R Models, 4-Hole Vent Port)
55 3005664Z01 ASSEMBLY, Coaxial Cable
56 7505487Z01 PAD, Coax
57 3205082E96 GASKET, O-Ring Bushing
58 3205349Z03
or 3205349Z04
SEAL, Main
SEAL, Main (R Models)
59 NTN8294_
or NTN8298_
or NTN8297_
BATTERY, NiCd
BATTERY, NiMH
BATTERY, NiCd (Ruggedized)
60 NTN8266_ KIT, Belt Clip
61 7505922Z01 PAD, Thermal
62 0286165A03 NUT, Spanner
63 3205300V01 SEAL, O-Ring
64 3205472M03 SEAL, Port (No longer used.)
65 3285877B01
or 3285877B02
SEAL, Port (R Models, 2-Hole Vent Port)
SEAL, Port (R Models, 4-Hole Vent Port)
66 3385873B01 LABEL, Seal
67 3385657D01
or 3385657D02
LABEL, ABC, Black Housing (optional—need if
housing is not pad printed)
LABEL, ABC, Yellow Housing (optional—need if
housing is not pad printed)
68 3385658D01
or 3385658D02
LABEL, Toggle, Black Housing (optional—need if
housing is not pad printed)
LABEL, Toggle, Yellow Housing (optional—need if
housing is not pad printed)
!
C a u t i o n
