Motorola DCT2000 - Standard VCR Cabling

20
CONNECTING YOUR DCT2000
R
RF
IN
CABLE IN
TO RF I N
TV Pass Card
AUX AU DIO IN
AUDI O O UT
VIDEO
SPDIF
SWITCHED
60Hz
500W MAX
105-125V
4A MA X
TO
TV/VCR
L
S-VIDEO
IR
CABLE IN
S-VIDEO IN
S-VIDEO OUT
VIDEO IN
VIDEO OUT
LR
AUDIO
OUT
AUDIO
IN
CABLE OUT
CABLE IN
AUDIO
IN
RLVIDEO
IN
S-VIDEO
IN
RLVIDEO
OUT
S-VIDEO
OUT
AUDIO
OUT
From cable outlet
TV

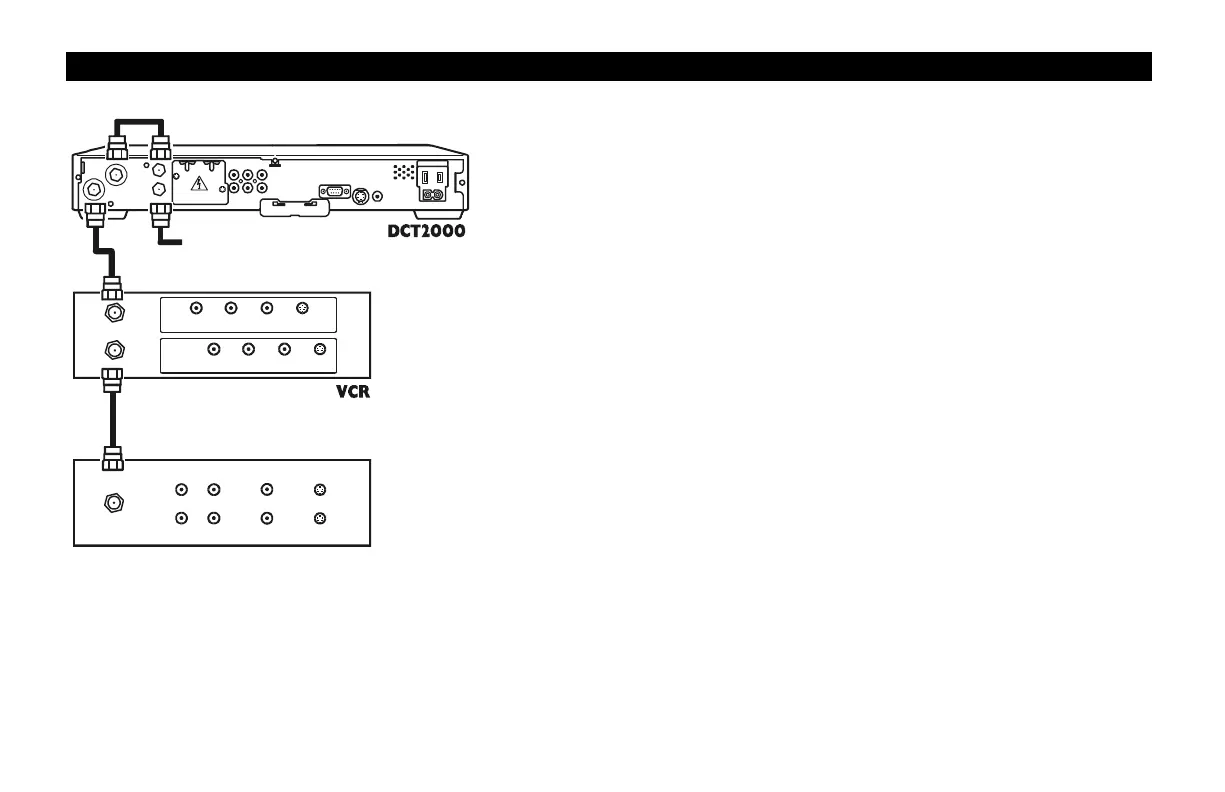

Standard VCR Cabling
To connect your VCR, you will need 75-ohm coaxial cables. The illustrated
VCR connection enables you to record the program you are watching,
including Pay-Per-View events. You can also view videotapes just as you
do now.
The illustrated connections will not provide stereo on digital channels. Connect the
DCT2000 using RCA baseband connectors to receive stereo on digital channels
(illustrated later in this section).
