3-4 CONTROLLER/KEYPAD SCHEMATICS

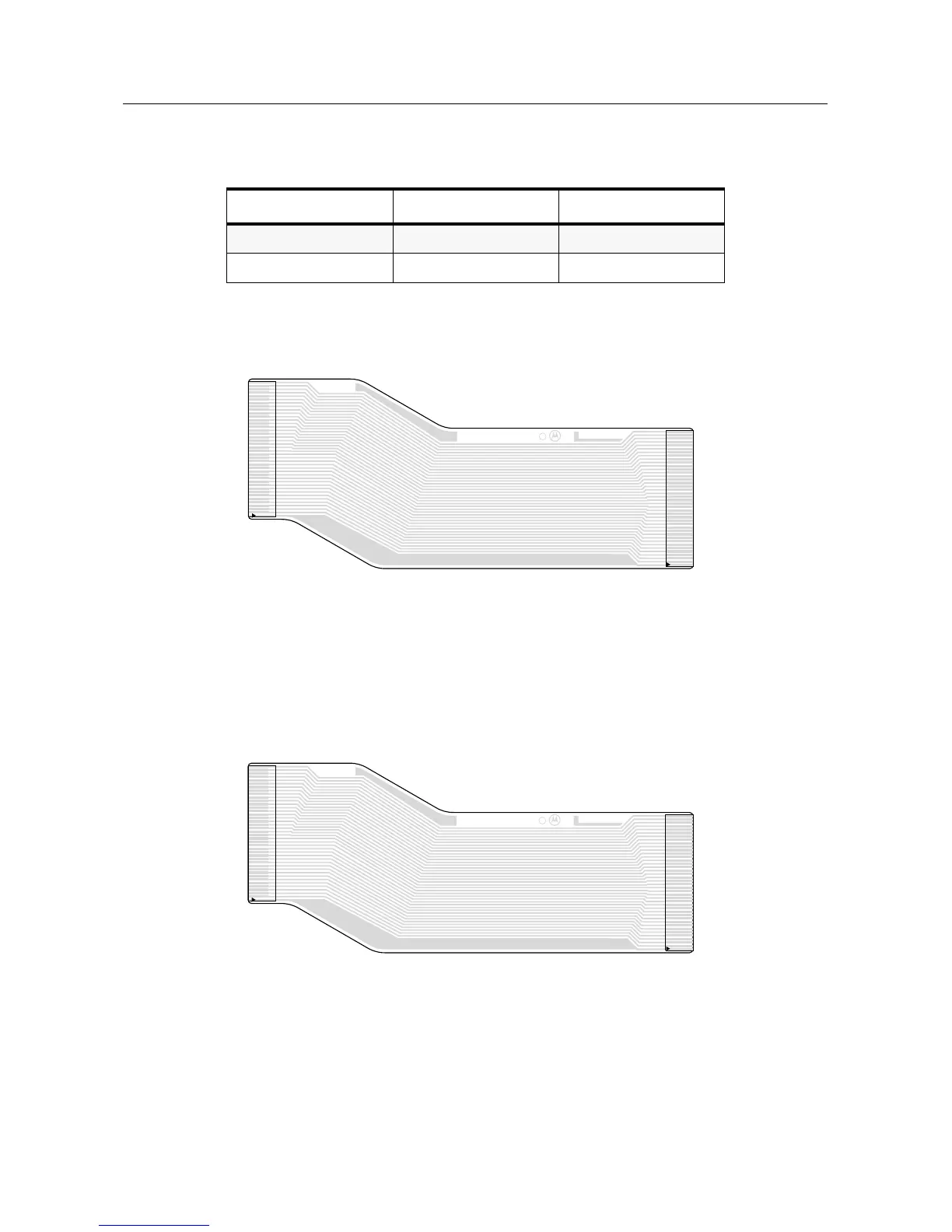

2.3 Parts List for Keypad/Controller - RF Board Interconnect Flex
2.4 Flex Layout Rev A
Figure 3-1 Keypad/Controller - RF Board Interconnect Flex (Rev A)
2.5 Flex Layout Rev B
Table 3-2 Keypad/Controller - RF Board Interconnect Flex (Rev B)
Reference Symbol Motorola Part No Description
J200 0905505Y04 Connector, 40pin
J400 090242P03 Connector, 40pin
98
C
J200
40
J400
40
<- TO CTRL
8480475Z02 REV A
TO RF ->
Front Metal
View From Top Side
98
C
J200
40
J400
40
<- TO CTRL
8480475Z03 REV B
TO RF ->
Front Metal
View From Top Side
