8-50 Maintenance: PassPort Trunking Troubleshooting Chart

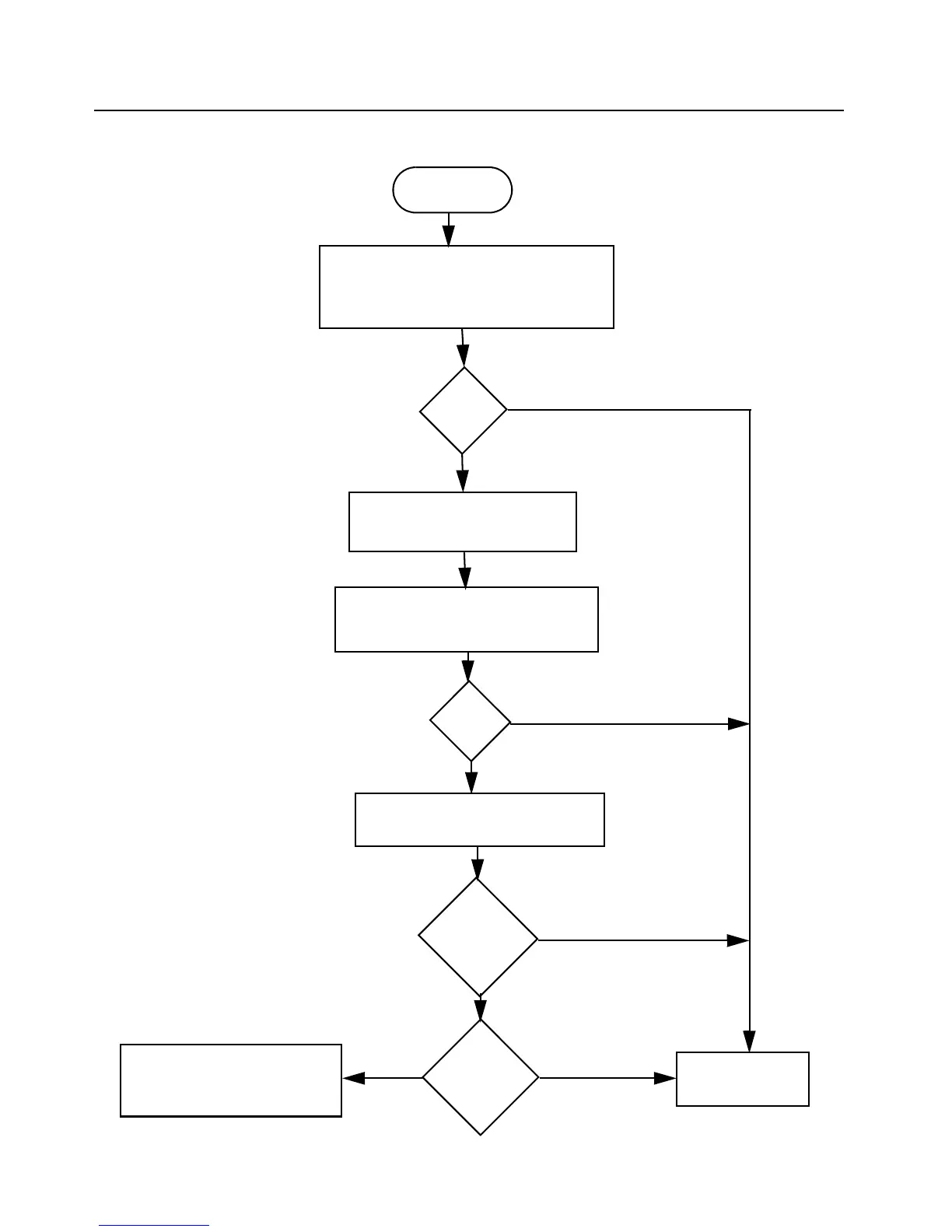

8.15 PassPort Trunking Troubleshooting Chart
Start
Check Radio Operation on a
Non PassPort Zone with a
Conventional Personality without
the Option Board Enabled
OK?
Check Radio PassPort
Programming using CPS
Check Switched Battery
and Vdd from Radio on PTCB
OK?
Check Radio PassPort
Programming using CPS
Rx
Tx Mod
on
J601-10?
Install and Reprogram a
new PassPort Trunking
Controller Board
Repair Radio
No
Yes
Yes
No
Yes
Yes
Yes
No
No
Demod on
J601-6
