Motorola HT1250-LS+

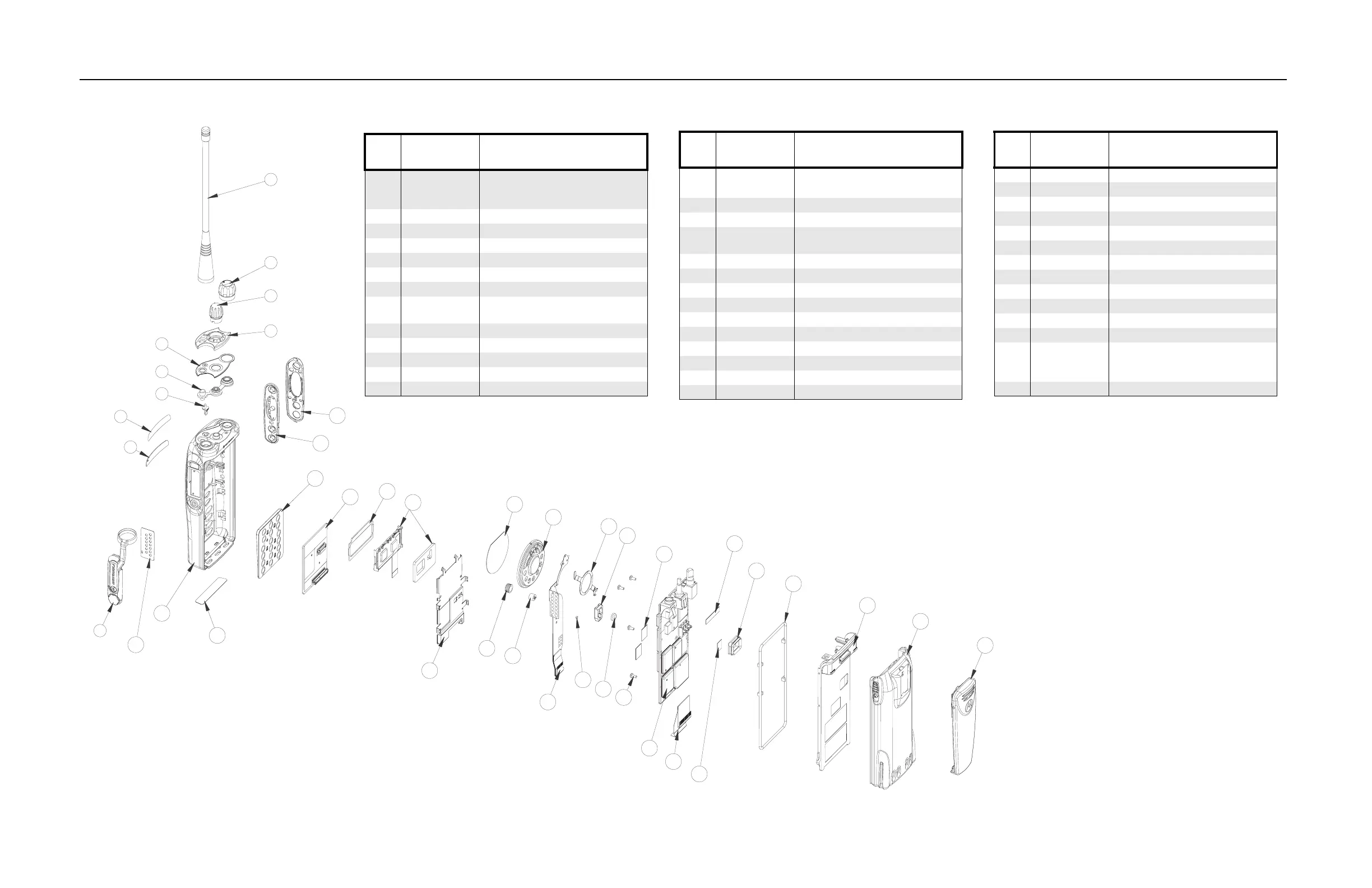

HT1250•LS+ Radio Exploded Mechanical View and Parts List 3-13
3.8 HT1250•LS
+
Radio Exploded Mechanical View and Parts List
8
9
10
11
12
13
14
15
16
17
18
21
22
23
24
25
27
26
28
29
30
31
32
33
35
36
37
38
39
40
7
5
6
2
3
4
1
20
34
8a
Item
Motorola
Part Number
Description
1 Please refer to
section 7.1.1 on
page 7-1
Antenna
2 3280529Z01 Knob, Volume
3 3280530Z02 Knob, Frequency
4 1380525Z03 Escutcheon, Top (Dotted)
5 3385681Z01 Escutcheon, Label
6 3280533Z03 Seal, Control Top
7 6180527Z01 Litepipe, Tx
8 3380565Z27
3380565Z28
Nameplate, HT1250•LS
+
200 MHz
Nameplate, HT1250•LS
+
700 MHz
8a 3386269Z01 Escutcheon, Motorola Logo
9 1586059A01 Dust Cover, Univ Conn
10 1386058A01 Escutcheon, Univ Flex
11 1586335Z01 Front Cover Limited Keypad
1586335Z02 Front Cover DTMF
12
* Escutcheon, FM (Not field
replaceable)
13 7580532Z01 Keypad, Side Control
14 1380528Z01 Bezel, Side Control
15 7586265Z01
7586265Z02
Keypad, Limited
Keypad, Full
16 0104015J14 Keypad/PassPort Board Assembly
17 7580540Z02 Pad Display
18 5104949J09 LCD Module
20 4286266Z01 Retainer, Keypad PCB
21 3586057A02 Felt, Speaker
22 1480577C01 Boot, Microphone
23 5085738Z03 Speaker
24 5013920A04 Microphone
25 8480549Z07 Flex Speaker-Microphone
26 2113740A41 Cap, 33 pF
Item
Motorola
Part Number
Description
27 4280504Z01 Retainer, Speaker
28 1480503Z01 Boot, Backup Battery
29 6080656Z01 Backup Battery
30 0304726J05 Screw
31 7580671Z01 Pad
32 See section 8.1 Ctrl/RF Board Assembly
33 8480475Z03 Flex, Keypad/Controller
34 7585746Z01 Pad, EMI, 700 MHz
35 7580556Z01 Pad, Thermal
36 3280534Z01 Seal, Contact
37 3280536Z01 Gasket, O-Ring
38 2780518Z03 Chassis
39 Please refer to
section 7.1.6 on
page 7-2
Battery
40 HLN9714 Belt Clip
Item
Motorola
Part Number
Description
Chapter 3
