Radio Tuning, Programming, Cloning, PassPort Tone Options and Diagnostic Functions 5-3
5.3 CPS Programming Setup
The CPS programming setup, shown in Figure 5-2, is used to program the radio codeplug.
Note: Refer to appropriate program on-line help files for the codeplug programming procedures.
5.4 Cloning (Conventional and LTR)
Cloning is the same for both the Conventional and LTR radio. Cloning is the process of copying the
content of one radio (source radio) into another radio (target radio). Radio content refers to system-
type features such as frequency, squelch type options, trunking, etc.
Note: Cloning can be performed only on radios with identical model numbers and software options.
Radio functionality inherent in one radio cannot be cloned to another radio that does not contain the
same functionality. Tuning and alignment information are not transferable and are not affected by
cloning.
Signaling Identification Numbers (IDs) are duplicated in the cloning process. Unique IDs may be
assigned with the CPS.
Note: Unsuccessful cloning attempts will not damage the radio.
Procedure:
1. Turn source and target radios off.
2. Connect cloning cable to side connector of both radios.
3. Turn on target radio.
4. On source radio, simultaneously press ‘side buttons 1 and 2’, shown in Figure 5-3, then turn radio
on. Both radios produce a “clone-entry” tone and turn on their green LEDs. The radio shows
“Cloning To” (source radio) and “Program” (target radio).
5. Release both side buttons. The electronic transfer process begins and will take approximately
one to three minutes.

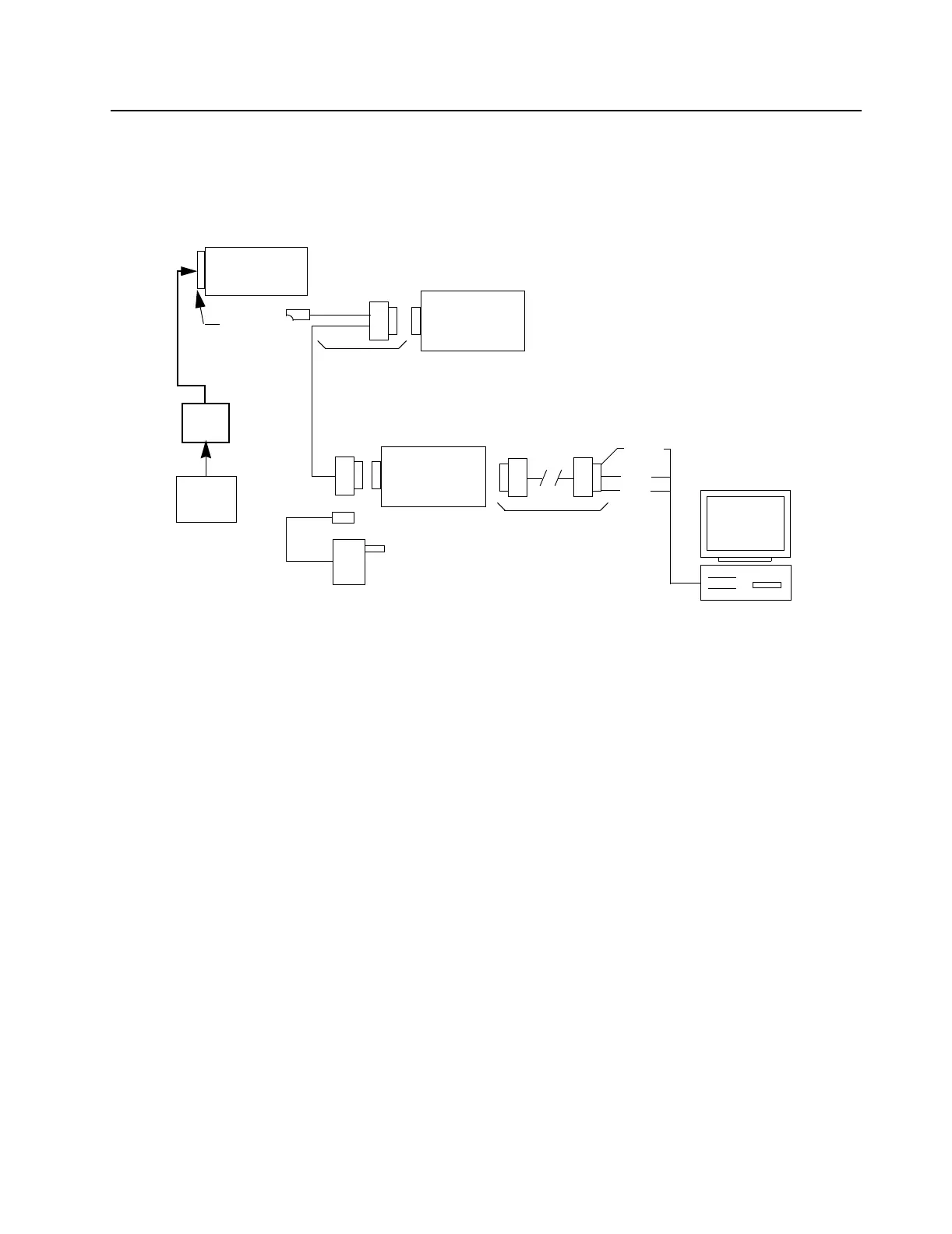

Figure 5-2. CPS Programming Setup
RIB
RLN-4008
RIB Power Supply
RLN4460A or B
Test Box
Rx
Gnd
Data
Tx Data
Radio
Battery
Computer Interface
Cable
Program/
AARKN 4074
Test Cable
3080369B72
DB15
DB9
120/230 V ac
Power
Supply
RLN4510
+12 V dc
Battery
Eliminator
7.5 V Reg.
Block
0180305G54
NOTE: Ribless Programming Cable
is part number RKN4075
To Next Page
